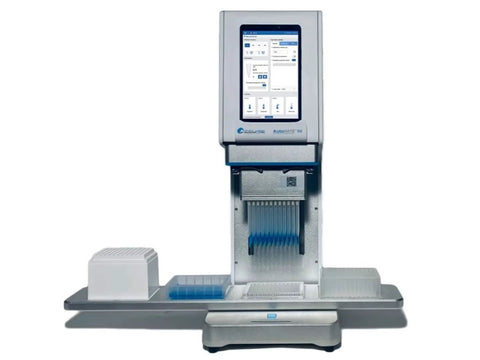

Accuris AutoMATE 96-Channel Pipetting Station (Head Not Included)
Accuris AutoMATE 96-Channel Pipetting Station (Head Not Included)
Spend more time on your research...AutoMATE your pipetting!
-
Fast and accurate 96-channel pipetting
-
Accepts 96/384 well microplates, PCR plates and reservoirs
-
Touch-screen tablet for programming & operation
-
4-position motorized platform
-
Three exchangeable pipette heads: 1-20µL, 5-200µL, 100-1000µL (Sold Separately, See Link Below)
The AutoMATE™ 96 from Accuris Instruments is a fully automated, high throughput liquid handling workstation that improves productivity when filling microplates. Capable of dispensing up to 96 channels simultaneously, the AutoMATE 96 significantly reduces the processing time and errors associated with manual pipetting.
The included tablet features an intuitive app for programming and operation. Unlike many 96-well pipetting stations, the AutoMATE 96 is “hands-free”, with motorized tip loading/ejection and a four position, automated, sliding platform that precisely aligns the tips with the appropriate microplate/reservoir. Once programmed, the instrument can run protocols to completion without any manual positioning or adjustment.
Three interchangeable heads allow for a pipetting range from 1.0µL to 1000µL. The AutoMATE 96 is compact enough to fit onto a standard lab bench or into a biosafety cabinet.
Instruction Manual for Accuris AutoMATE 96-Channel Pipetting Station
Product Literature for Accuris AutoMATE 96-Channel Pipetting Station
AutoMATE Specifications
| Display | 8-inch color touch screen tablet (included) |
| Aspirate/Dispense volume | 1-1000µl (depending on pipetting |
| Platform capacity | 4 (tip racks/plates/reservoirs) |
| Channels | 96 individual pistons |
| Pipetting technology | Air Displacement |
| Compatible plate formats | 96/384 well microplates, shallow/deep well plates, PCR plates |
| Communication Ports | USB Ports for importing/exporting |
| Voltage Input | Universal 120 to 240VAC, 50-60Hz |
| Power | 100W |
| Weight | 32.6 kg / 71.8 lbs |
| Dimensions | 69.0 x 35.0 x 67.3 cm / 27.2 x 13.8 x 26.5 in. |
Pipetting Head Specifications
| MP9600-20PH (1-20µL) | MP9600-200PH (5-200µL) | MP9600-1000PH (100-1000µL) | |
| Accuracy | ≤12 % at 1μL | ≤5 % at 5μL | ≤2.5 % at 100μL |
| ≤5 % at 2 μL | ≤2 % at 20μL | ≤0.4 % at 500μL | |
| ≤1 % at 10μL | ≤1 % at 100μL | ≤1 % at 1000μL | |
| ≤1 % at 20μL | ≤1 % at 200μL | ||
| Precision | ≤120% at 1μL | ≤3.5 % at 5μL | ≤1.25 % at 100μL |
| ≤5 % at 2 μL | ≤1.5 % at 20μL | ≤0.4 % at 500μL | |
| ≤1 % at 10μL | ≤0.8 % at 100μL | ≤0.4 % at 1000μL | |
| ≤0.8 % at 20μL | ≤0.4 % at 200μL |
MSE supplies is an authorized distributor of Accuris products and accessories.
