MSE PRO 1-60% RH SUS304 Nitrogen (N2) Cabinet for Electronics and Semiconductors

SKU: MA2170
$ 5,945.95

Still have questions? Ask our experts!

Email +1 (520) 789-6673

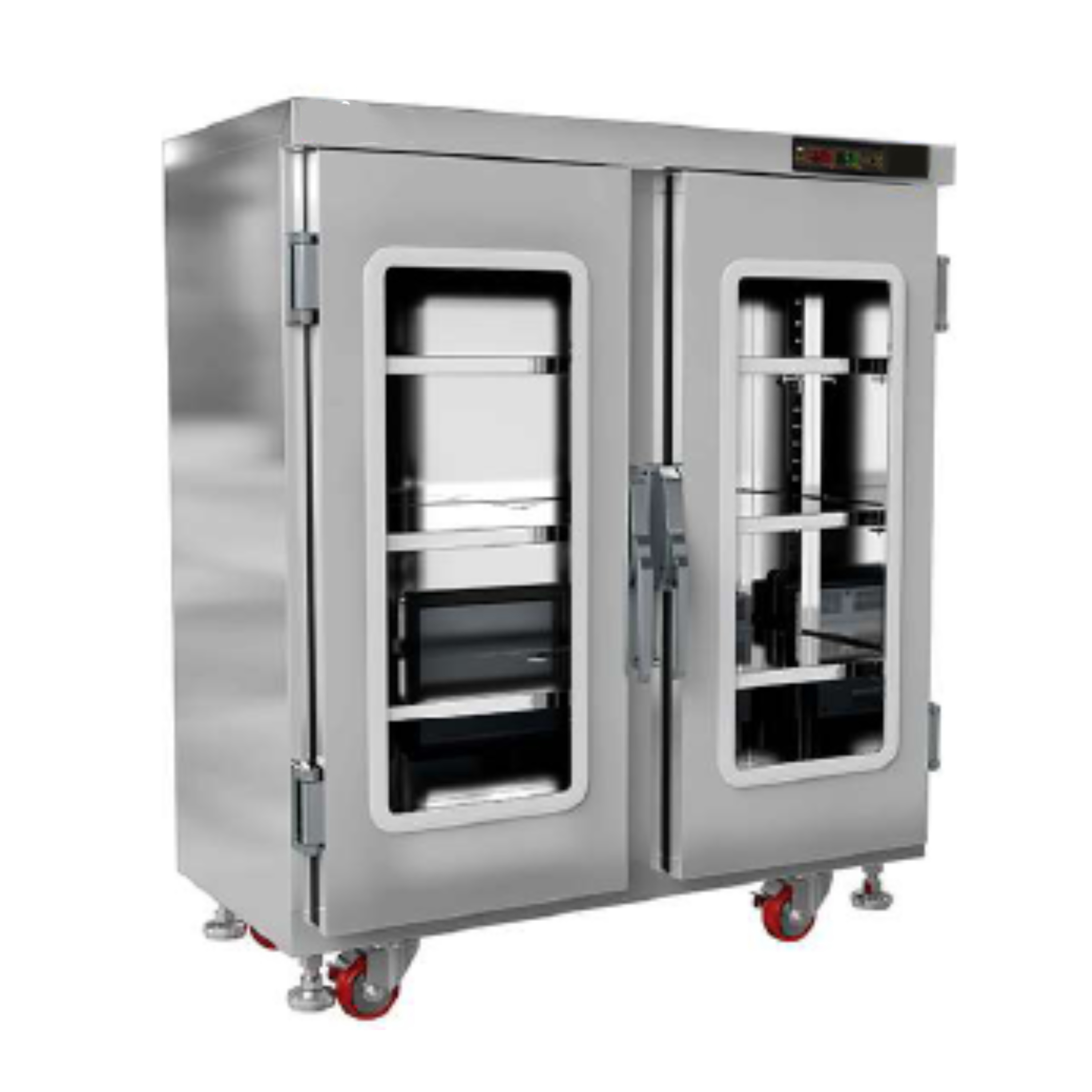

MSE PRO 1-60% RH SUS304 Nitrogen (N2) Cabinet for Electronics and Semiconductors

MSE Supplies offers a 1-60% RH SUS304 N2 Desiccator Cabinet, which is widely used in laboratories, precision instrument handling, semiconductor moldings, and optical lens production. It is designed to protect moisture-sensitive electronic components and valuable collections from moisture damage and oxidation using nitrogen (N2). The humidity range is adjustable from 1% to 60% RH.

Main Features:

  • Display Modes: The cabinet features a microcomputer decimal LED display, providing a temperature display precision of ±1°C and a humidity precision of ±3%RH.
  • Advanced Nitrogen Purging System: Adjustable flowmeter enables precise nitrogen regulation with rapid humidity reduction (1%-60% RH), evenly distributes N2 via micro-hole dispersion, and automatically shuts off the solenoid valve upon
    reaching the set humidity level.
  • Cabinet Structure: Constructed with high quality SUS304 material, features a 3.2 mm
    high-strength tempered glass door with magnetic sealing for an airtight closure; Lockable casters for easy mobility and stability.
  • Data Recording: USB local recording (FAT32 format) and Network Interface Logging: The network interface complies with the TCP/IP protocol and can realize
    centralized management of multiple cabinets
  • Calibration Reminder: Sensor drift can affect accuracy. To assist compliance with ISO regulations, this model incorporates a unique calibration expiration reminder function.
  • Smart Features: Fault alarm, calibration expiry reminder, display sleep mode, power-off memory.

Technical Specifications:

SKU MA2170 MA2171
Temperature and Humidity Accuracy ±3.0% RH, ±1.0℃
Humidity Range Relative Humidity: 1~60% RH (Automatic adjustable)
Average Power 8W
Control Method Adjustable Setpoint
Outer Dimensions (WxDxH) 900x450x1010 mm 1200x710x1910 mm
Inner Dimensions (WxDxH) 898x422x848 mm 1198x682x1723 mm
Capacity 320 L 1440 L
Number of Shelves 3 pieces 5 pieces
Max. Loading Capacity of each Shelves 70 kg 120 kg
Power AC110V, 60Hz AC110V, 60Hz
