SICCO Glove box for Exhaustion (W 890 mm × H 700 mm × D 600 mm ) (PMMA/ALU )

Order upon Request
SKU: V 1988-08
$ 6,562.95

Still have questions? Ask our experts!

Email +1 (520) 789-6673

SICCO Glove box for Exhaustion (W 890 mm × H 700 mm × D 600 mm) (PMMA/ALU)

Product Description

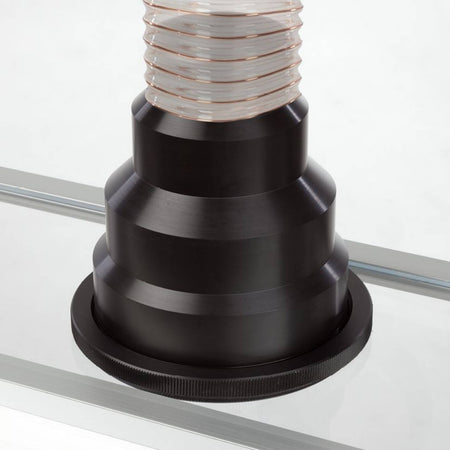

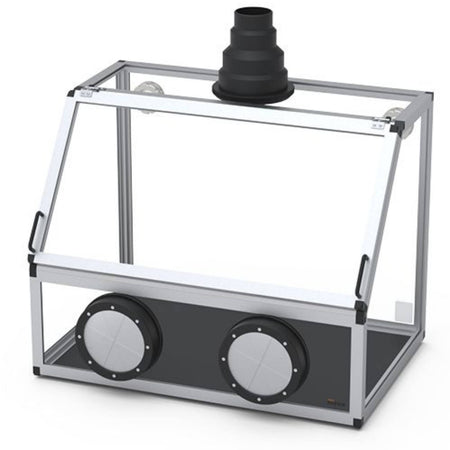

Aluminum frame with panels made of acrylic glass. Base panel, integrated connector for exhaust system and closing lid made of polyethylene. Iris-Ports and cable lead-ins made of polyethylene and silicone. Two lead-ins for cable on the back side (upper left and upper right). Two crosswise slotted silicone discs each in the openings and cable lead-ins. They are staggered mounted so that the overlapping segments at the same time allow easy access to the interior space and close the openings at nonuse.. The Iris-Ports ensure pressure compensation through air streaming when the exhaust system is switched on. Connection to exhaust system through an integrated connector on the top panel. This connector is graded for tubes with inner diameters 100, 120, 160 and 180 mm. When working without exhaust system the opening can be closed with a lid.
Work space and transfer chamber each including two hose connectors for gas-filling and aeration and appropriate tubing (2x 5 m tubing for gas-filling made of PVC, 2x 5 m aeration tubing made of PE).
All materials used can discharge electrostatic charging by means of a grounding cable which can be connected on the back side (connecting thread M6).

Product Advantages

  • Robust and light-weight aluminum construction
  • Superb all-round visibility
  • Non-slip rubber feet
  • Cable lead-ins for electric devices
  • Large front opening

Applications

Direct connection to an existing exhaust system through the integrated connector. Easy access to the interior space through Iris-port openings, no complex change of gloves.

Specifications

Model

V1988-08

Material

PMMA

Panels

clear

Stand

rubber feet

Temperature resistance

from -20°C to +70°C

Use

normal pressure

Capacity Box [liters]

290

Connector for exhaust system
[Ø in mm, graded]

100, 120, 160, 180

Distance between openings [mm]

390

Hinged lid opening [W x H mm]

850 x 425

Max. all-over load box [kg]

40

Overall dimensions [W x H x D mm]

890 x 700 x 600

Opening for gloves [mm]

Ø170

Usable interior space Box [W x H x D mm]

850 x 650 x 540

Weight [kg approx.]

16


Downloadable links:

Technical information

Material Safety Data Sheets

Operating Instructions
