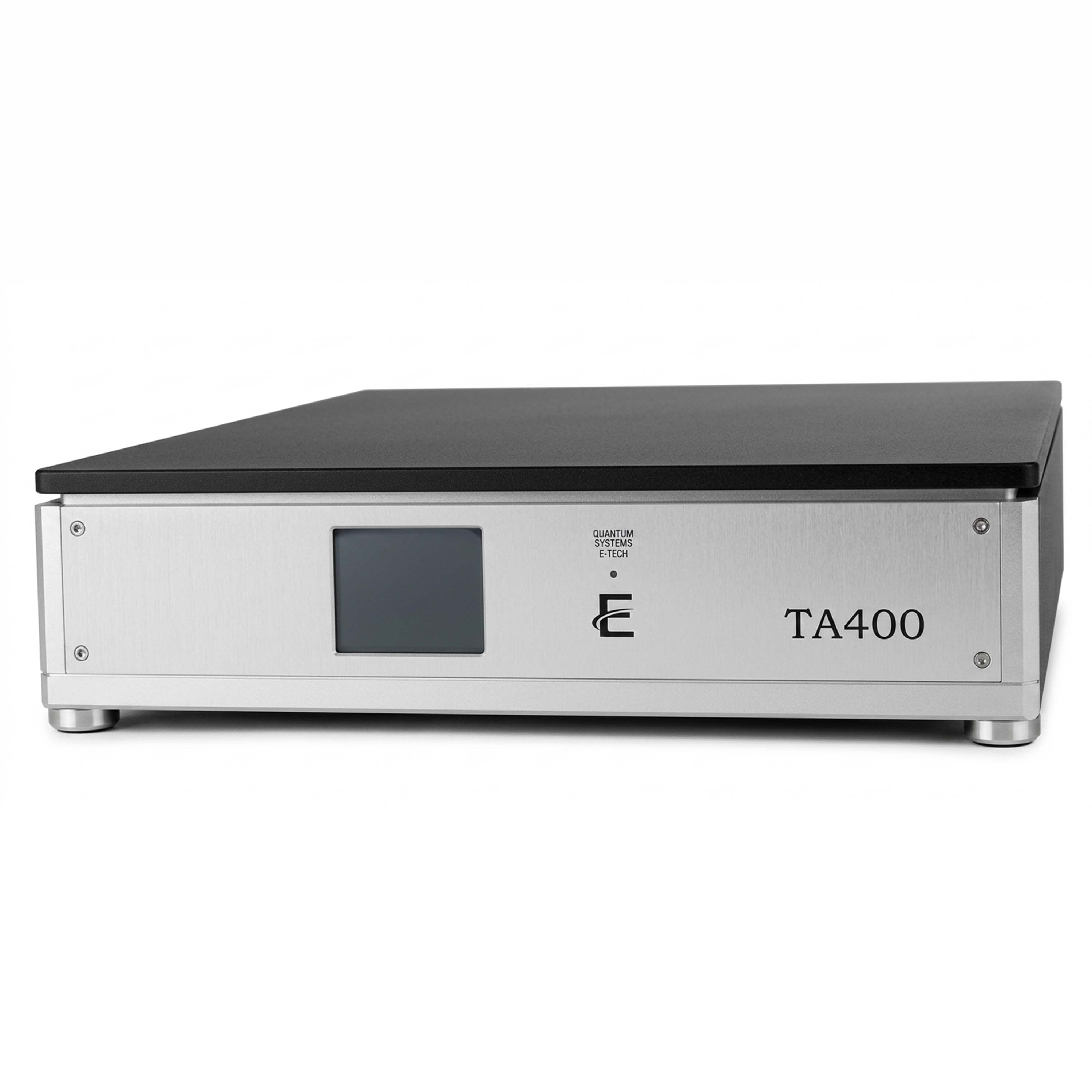

MSE PRO TA400 Active Vibration Isolating Optical Table
Regular price
$ 21,114.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO TA400 Active Vibration Isolating Optical Table
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070598 |
| Model | TA400 |
| Net Weight | 40kg |
| Dimension | 600x500x100mm |
| Load capacity | 10-120kg |
| Top plate | Aluminum Alloy |
| Power supply | 220V, 50Hz |
| Power input | 50W |
| Working temperature | 15-40°C |
| Working condition | Placed on a platform with flatness better than 0.5mm/m² |
| Isolating frequency | 0.7-200Hz |
| Vibration isolating direction | 6 DOF, auto load capacity adjustment |
| Vibration isolating Efficiency | >5Hz 90%, >10Hz 95% |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
