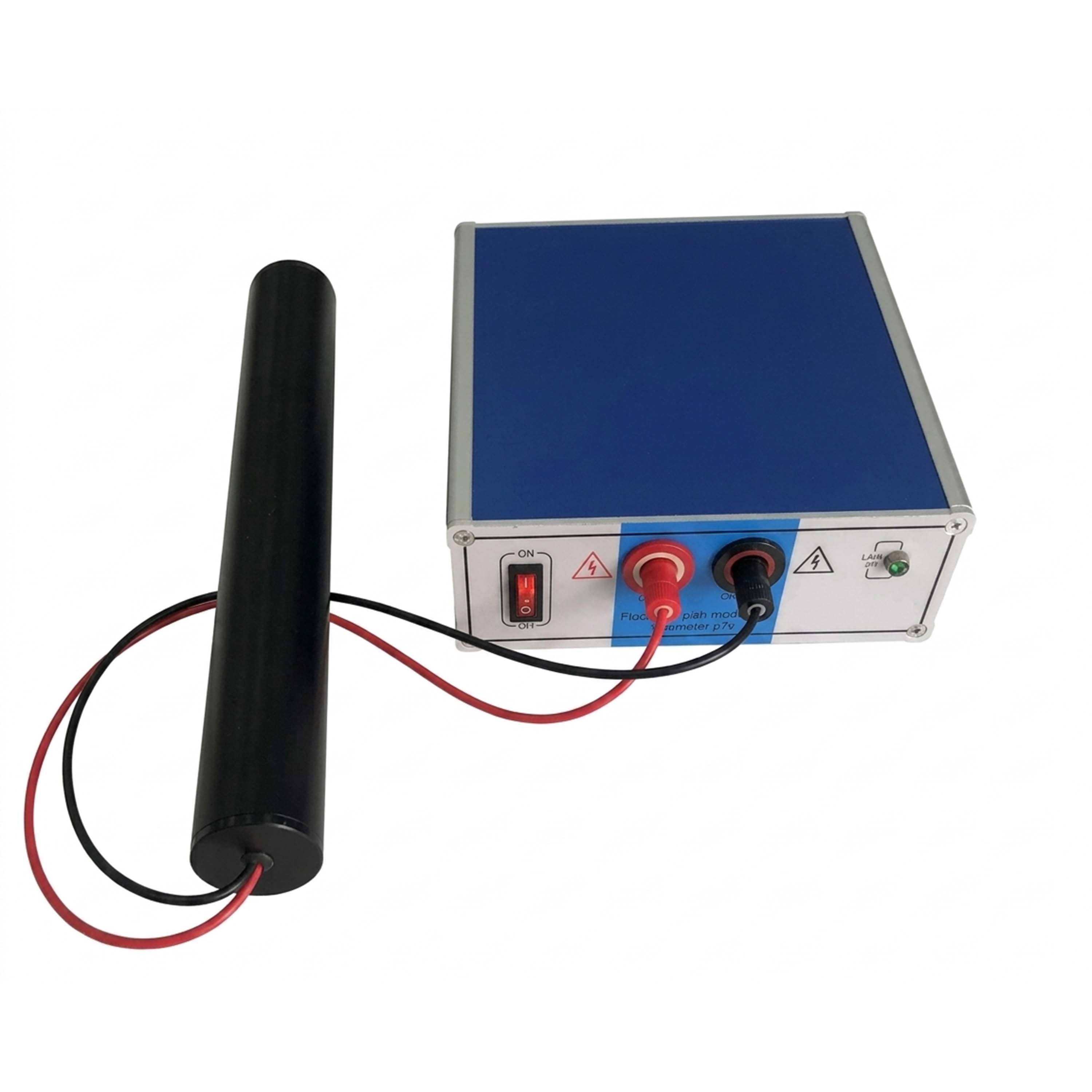

MSE PRO LSW-10 He-Ne Laser
Regular price
$ 1,145.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LSW-10 He-Ne Laser
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070594 |
| Model | LSW-10 |
| Output power | ≥1.5mw |
| Beam spread Angle | 2mrad |
| Beam diameter | 1.2mm |
| Transverse mode | TEM00 |
| Gain (length) | 250mm |
| Wavelength (nm) | 632.8nm |
| Dimension of laser tube | 300*Φ45mm |
| Dimension of power source | 200*165*75mm |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
