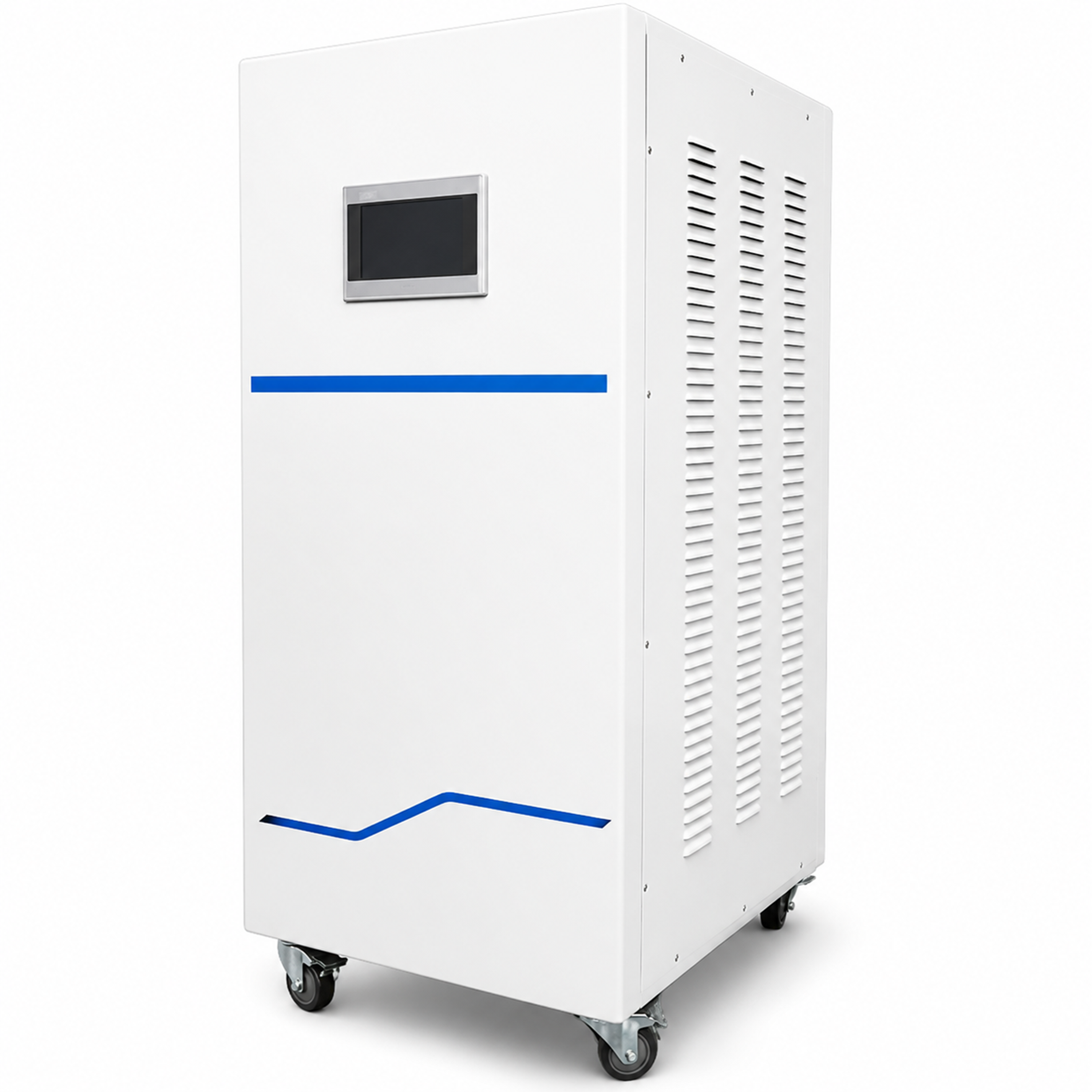

MSE PRO High Efficiency PEM Hydrogen Generator, Max. Flow Rate 5L/min, 110V/60Hz
Introduction
The MSE PRO High Efficiency PEM Hydrogen Generator is designed to produce high-purity hydrogen using PEM electrolysis technology. It provides stable hydrogen output, high automation, and reliable operation for laboratory and industrial applications.
With a maximum output flow rate of 5 L/min and hydrogen purity of >99.9995%, this hydrogen generator is suitable for gas chromatography, thin-layer chromatography, chemical and medical hydrogen processes, semiconductor applications, CVD processes, and artificial diamond production.
Key Features
- Uses PEM electrolysis technology for high-purity hydrogen generation
- Maximum hydrogen output flow rate up to 5 L/min
- Hydrogen purity: >99.9995%
- Adjustable output pressure from 0–1.5 MPa
- Fast pressure build-up within approximately 3–5 minutes
- TSA temperature swing adsorption dehydration system
- Stable pressure and stable flow output
- Automatically tracks gas consumption load
- Built-in automatic protection and alarm functions
- 7-inch touch screen PLC control system
- One-button start operation
- Automatic water replenishment by connecting to a water deionizer
- Low-noise operation
- Sealed internal gas circuit for safe and reliable performance
Applications
- Gas chromatography
- Thin-layer chromatography
- Laboratory hydrogen supply
- Chemical hydrogenation processes
- Medical hydrogen processes
- Semiconductor processing
- CVD processes
- Artificial diamond production
Specifications
| SKU | MA0072298 |
| Output Flow | 0–5000 mL/min |
| Maximum Flow Rate | 5 L/min |
| Output Pressure | 0–1.5 MPa, adjustable |
| Hydrogen Purity | >99.9995% |
| Overpressure Protection Value | 2.0 MPa |
| Power Voltage | 110V / 60Hz |
| Equipment Alarm | Overpressure, water accumulation, water shortage, underpressure, water quality, temperature, dew point, water flow |
| Control Method | 7-inch touch screen PLC, one-button start |
| Hydrogen Dehydration Method | TSA temperature swing adsorption |
| Water Replenishment | Connect to water deionizer for automatic water replenishment |
| Dew Point | -70°C |
| Net Weight | >100 kg |
| Dimensions | 650 × 550 × 1200 mm |
| Operating Temperature | 1–40°C |
| Relative Humidity | <85% |
MSE Supplies offers a variant of Hydrogen Generator. Please contact us for more information.
