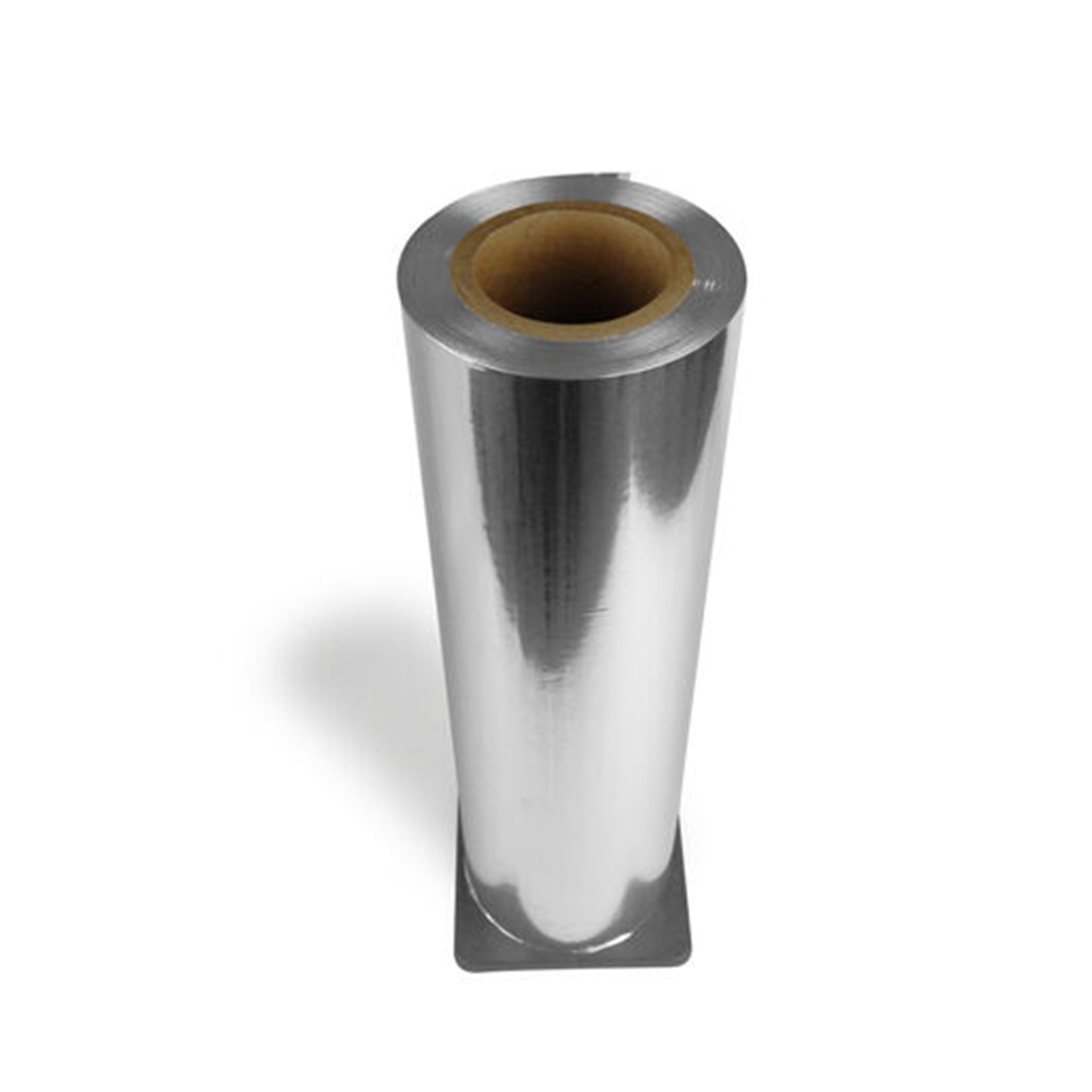

MSE PRO Etched Corrosion Aluminum Foil (20um*200mm*0.5kg) for Battery Research
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO Etched Corrosion Aluminum Foil (20um*200mm*0.5kg) for Battery Research
Introduction
Etched corrosion aluminum foil is a surface-treated current collector produced by chemical or electrochemical etching to create a controlled rough microstructure. The increased surface area enhances adhesion with active materials and improves interfacial conductivity, making it suitable for advanced battery research and energy storage applications.
-
Store the product horizontally at temperatures below 25 °C. Keep away from direct sunlight, moisture, rain, and corrosive gases to prevent aluminum foil discoloration and oxidation.
-
Always wear clean gloves when handling the product to avoid scratching the aluminum foil and contaminating the surface.
Specification
| Test Item | Test Conditions | Test Results | Enforcement Standards |
| Material purity | ≥99.5 | 99.6 | IPC-4562 |
| Electric conductivity | Normality | 0.275 ohm·g/m² | IPC-TM-650 2.5.14 |
| Weight per unit area | Normality | 46 g/m² | IPC-TM-650 2.2.12 |
| Tensile strength | Room temperature 23°C | 140 N/mm² | IPC-TM-650 2.4.18 |
| Rate of elongation | Room temperature 23°C | >2.5% | IPC-TM-650 2.4.18 |
| Bending strength | Room temperature | 80 | IPC-TM-650 2.4.8 |
| Surface roughness | S smooth surface, Ra | 0.23 | IPC-TM-650 3.5.6 |
| Surface roughness | M smooth surface, Ra | 0.25 | IPC-TM-650 3.5.6 |
| Cl⁻ content | ≤1.0 mg/m² | 0.6 | IPC-TM-650 5.5.6 |
| Cu²⁺ content | ≤3.0 mg/m² | 1.5 | IPC-TM-650 5.5.6 |
| Wettability | Dyne value | ≥38 | Dyne pen |
