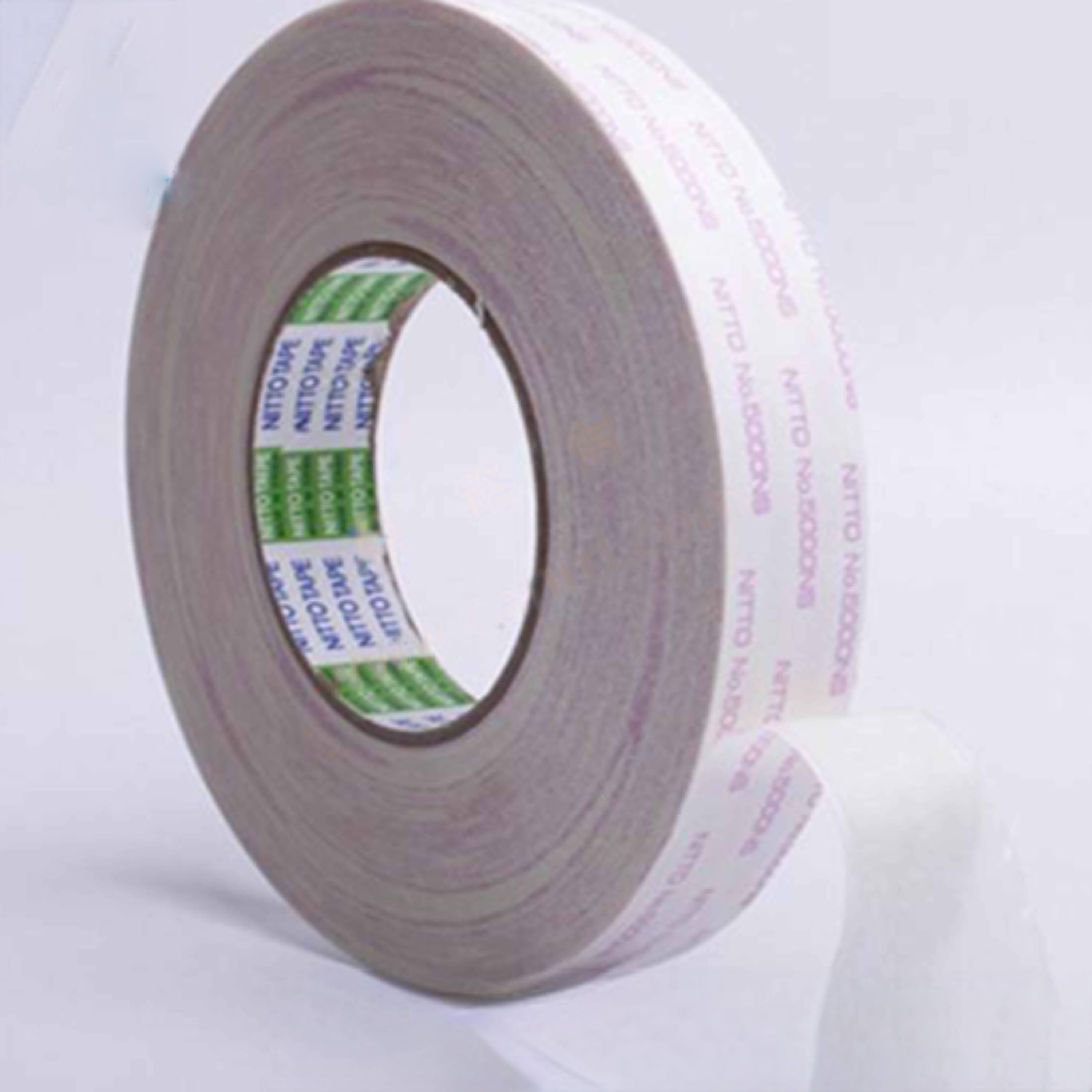

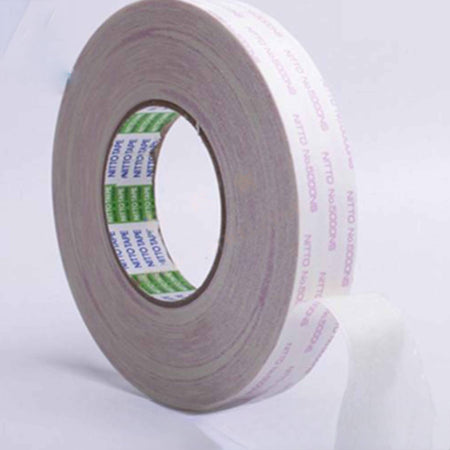

MSE PRO Adhesion Test Tape (2cm*50m) for Battery Electrode Plate

MSE PRO Adhesion Test Tape (2cm*50m) for Battery Electrode Plate

Introduction

The MSE PRO Adhesion Test Tape is designed for electrode coating adhesion evaluation in battery research and manufacturing. This high-strength double-sided tape provides reliable bonding performance while ensuring clean removal without residue, making it ideal for electrode peel tests, coating integrity assessment, and sample preparation.

Constructed with a durable non-woven fabric base and high-performance adhesive, the tape offers excellent mechanical strength and strong adhesion to a wide range of materials commonly used in battery electrodes.

Applications

• Battery electrode adhesion testing

• Coating peel strength evaluation

• Electrode material research and quality control

• Laboratory sample preparation

Specifications

• Width: 2 cm

• Length: 50 m

• Thickness: 0.16 mm

• Base Material: Non-woven fabric

• Adhesive Type: Residue-free adhesive

Notes on Electrode Calculations

• Coating surface density excludes current collector weight.

• Theoretical surface capacity (mAh/cm²) = Coating surface density × Active material ratio × Specific capacity ÷ 1000.

• Actual active material loading should be calculated based on measured sample weight, and the actual value should prevail due to coating density tolerance.
