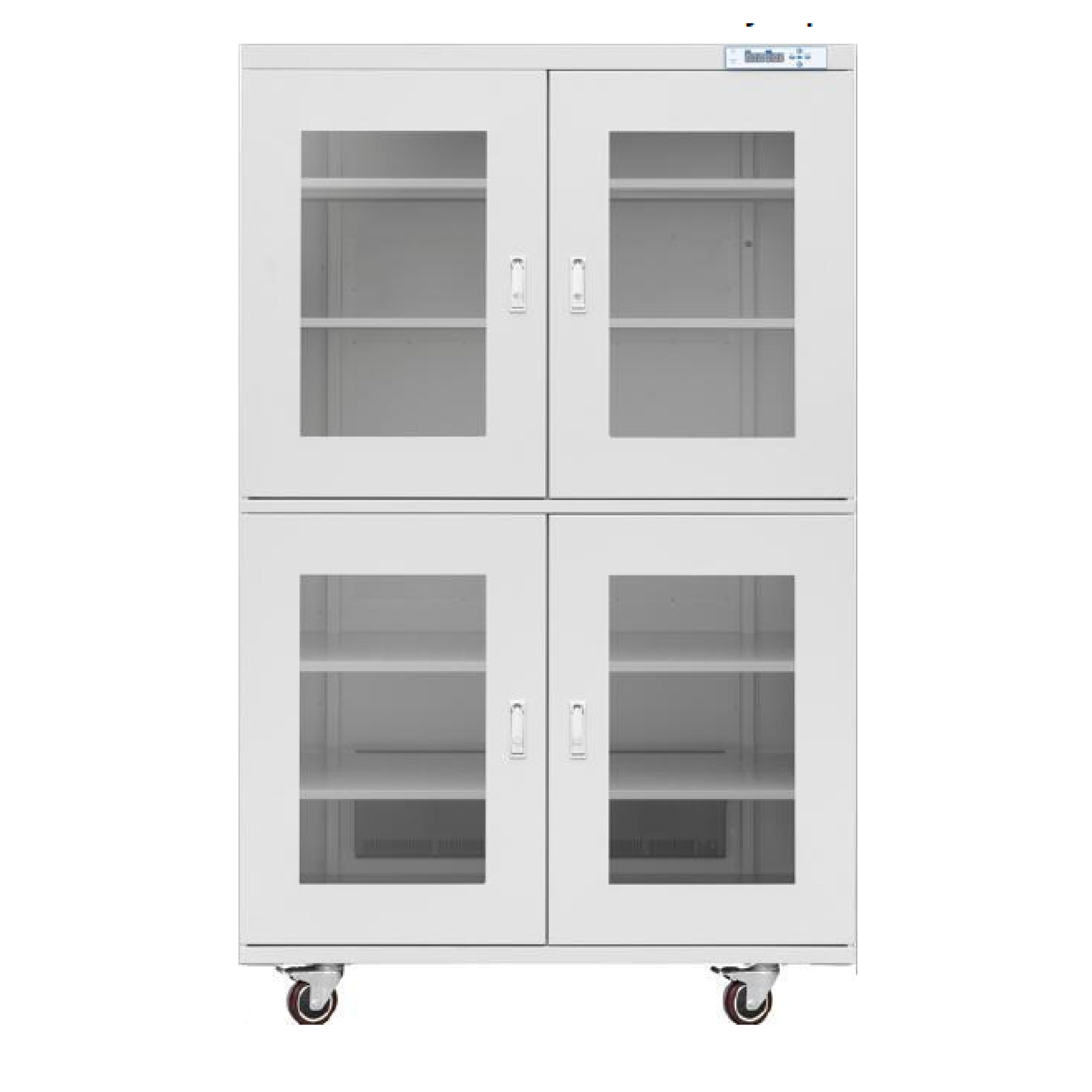

MSE PRO <3%RH 1436L Dry Cabinet

Introduction

The MSE PRO <3%RH 1436L Dry Cabinet is a high-capacity humidity-controlled storage cabinet designed to protect moisture-sensitive materials from damage caused by humidity. With automatic humidity control down to <3% RH, the cabinet maintains a stable low-humidity environment using a precision LED digital controller and efficient dehumidification system. Its modular design and durable construction make it ideal for long-term use in laboratories, electronics manufacturing, semiconductor storage, and research facilities.

Key Features

  • Ultra-Low Humidity Control: Maintains humidity levels below 3% RH to protect moisture-sensitive devices and components.

  • Large 1436L Capacity: Spacious multi-shelf storage suitable for electronics, optical components, and laboratory materials.

  • Precision Digital Controller: LED display provides accurate humidity monitoring and automatic control.

  • Modular Design: Key components such as the controller, power box, and dehumidifier can be easily replaced or upgraded.

  • Calibration Reminder Function: Built-in reminder alerts users when sensor calibration is required for reliable accuracy.

  • Plug-and-Play Operation: Easy installation with minimal setup or training required.

  • Durable & Long Service Life: Robust cabinet structure designed for 15–20 years of reliable operation.

  • Mobile Cabinet Design: Equipped with heavy-duty casters for convenient movement and positioning.

Specification

SKU MA0067210
Interior Dimension 1198(W) × 682(D) × 1723(H) mm
Exterior Dimension 1200(W) × 710(D) × 1910(H) mm
Packing Dimension 1300(W) × 800(D) × 2130(H) mm
Shelf Dimension N/A
Humidity Range <3% RH automatic
Volume 1436 L
Net/Gross Weight 144 kg / 205 kg
Recovery Time Max. 30 minutes to reach <3% RH after door open/close (25°C, 50% RH ambient, no load)
Precision ±2.5% RH, ±1.0°C (Sensor Accuracy: ±1.5% RH; Resolution: 0.1% RH, 0.1°C)
Shelf 5 pcs, height adjustable
Voltage 110V / 60Hz

Recommended Storage Humidity Guide

Relative Humidity
Suggested stored items
55%~45%RH
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
45%~35%RH
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
35%~20%RH
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
10%~20%RH
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
10%-1%RH
IC, BGA, copper, silver, and materials very sensitive to humidity, etc



MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.

The size, voltage, and design are customizable. Please contact us if you have any customization need.
The signal alarm,  buzzer alarm and data logger are available with additional cost.
The product image is for reference only. MSE may upgrade the design without notice.
