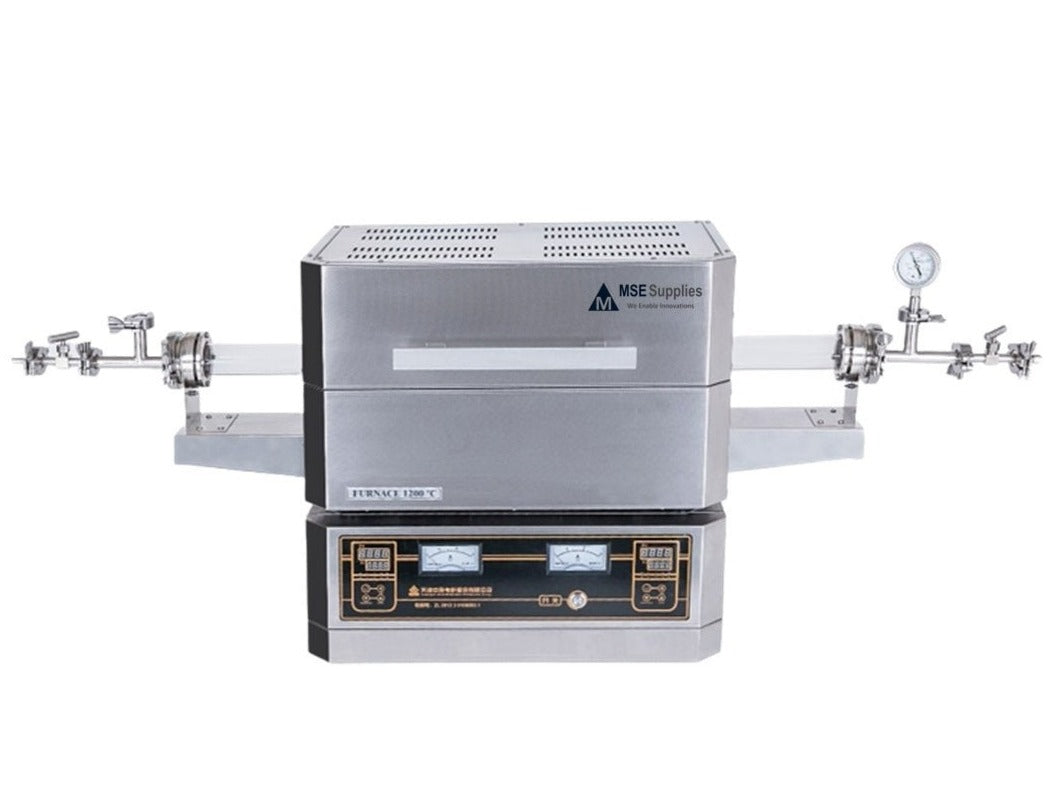

MSE PRO 1200°C Double Temperature Zone Tube Furnace T 100/420/12
MSE Supplies offers a Double Temperature Zone Tube Furnace T 100/420/12 with maximum working temperature of 1100°C and heating region of Ø100x420mm. Tube furnaces provide users with vacuum/controlled atmosphere and high temperature. It is widely used for many processes, including heat treatment of metal in different atmospheres, catalyst formation that need inert gas protection, etc. Fields of application include semiconductor, nanotechnology and carbon fiber, etc.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
- High current protection guarantees long service life
- High heating rate
- Uniform temperature distribution
- Easy-to-operate
- With PID adjustment, fuzzy control, and self-tuning functions
- Programmable controller with 50 segments
- Can be connected to a laptop for remote control, real-time tracking, history recording and data output (available upon request)
- Over-temperature protection and electric shock protection
- Airtight and automatically adjust the pressure in the tube when pressure is high
- Corrosion Resistance
- Stainless steel embossed board
Options:
- Vacuum control system and gas flow control system
Technical Data:
| Model | T 100/420/12 |
| SKU# |
Regular Control Panel (MA0468) Touch Screen Control Panel (MA0469) |
| Maximum Temperature | 1200℃ |
| Working Temperature | ≤1100℃ |
| Heating Zone | Double Temperature Zone |
| Furnace Tube Material | Quartz Tube |
| Quartz Tube Dimension | Ø100/92*1000mm |
| Heating Zone Length | 420mm |
| Constant Temperature Zone Length | 280mm |
| Voltage |
|
| Power | 3.2kW |
| Furnace Body Dimension | 360*580*565mm |
| Weight | 75kg |
| Heating Elements | High Resistance Electrothermal Alloy Wire OCr27A17Mo2 |
| (Recommended) Heating Rate | 0℃-1000℃≦10℃/min； 1000℃-1200℃≦5℃/min |
| Flange Structure | Double-ring Sealing Clamp for Quick Connection |
| Temperature Control Accuracy | ±1℃ |
| Temperature Control | Programmable temperature control system with 50 segments |
| Warranty | One-year limited warranty with lifetime support. Not responsible for damage caused by improper use |
| Standard Configuration | A set of gas circuit assembly (including a vacuum pressure gauge), a quartz tube, two quartz plugs, a quartz boat, a hook and a pair of heat-resistant gloves |
We offer Tube Furnaces and Box Furnaces with different sizes and Tmax. For more information, please contact us.
