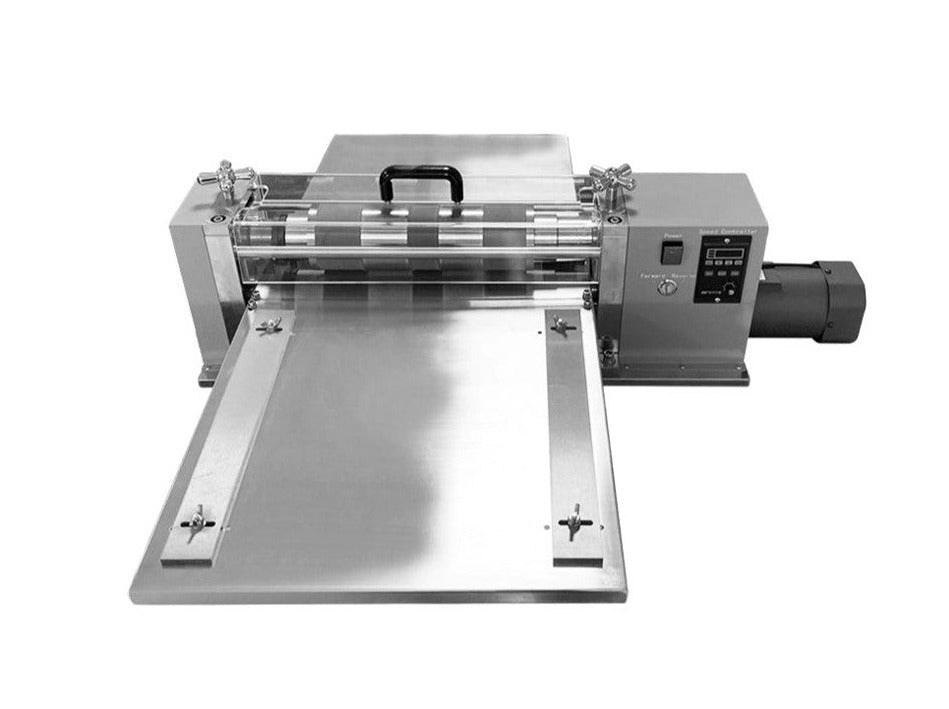

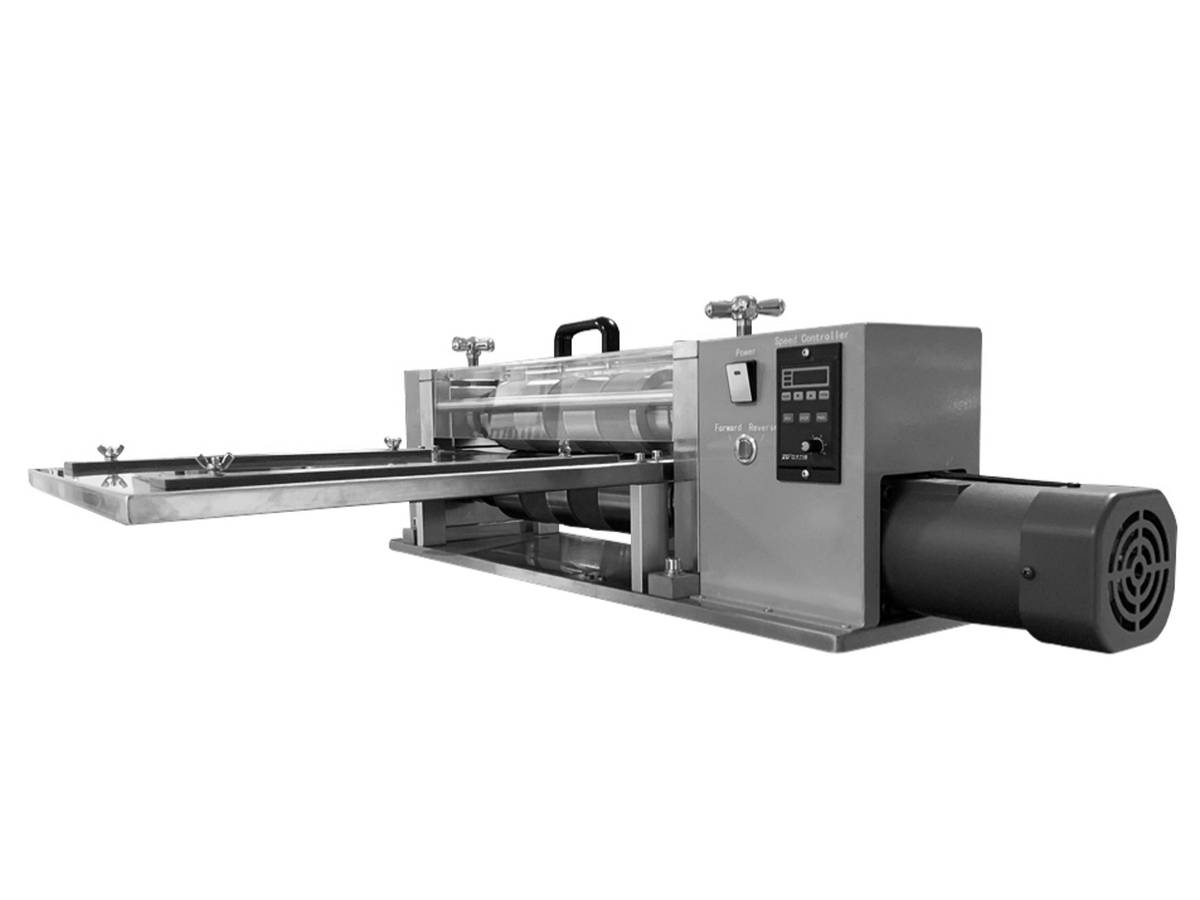

MSE PRO Benchtop Electrode Slitting Machine for Cylindrical and Pouch Cell Battery
Regular price
$ 8,513.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE Supplies offers a benchtop electrode slitting machine for cylindrical and pouch cell research. It is designed for slitting the anode and cathode electrode after the calendaring. The blade cutting width is customizable to accommodate the specific electrode width. It also can be used for slitting other soft metallic foils.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
| SKU | BR0410 |
| Maximum Slitting Width | 300mm (Customizable) |
| Compatible Slitting Material | Coated copper/aluminum foil or soft metallic foil |
| Slitting Thickness | 50~400μm |
| Slitting Blade |
58mm wide blade (standard) (Blade width is customizable) |
| Voltage | 110V |
| Net Weight | 60kg |
| Dimension | 1050*900*400mm |
| Warranty | One year limited warranty with lifetime product support |
