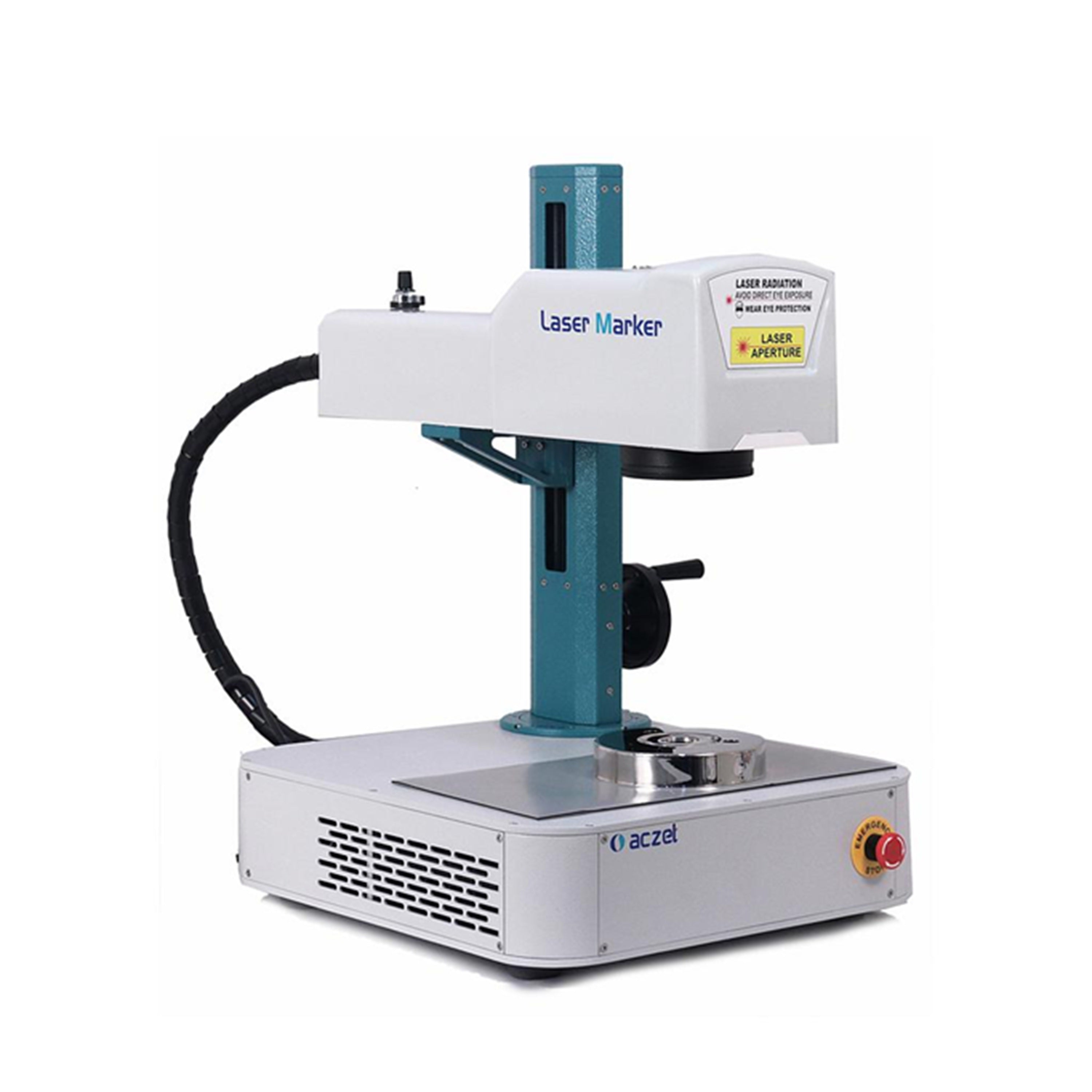

ACZET Compact Fiber Laser Marking Machine
Regular price
$ 12,900.95
Couldn't load pickup availability
Still have questions? Ask our experts!
ACZET Compact Fiber Laser Marking Machine
Overview
MSE Supplies uniquely designed Laser Marking Machine makes the marking in metals and some nonmetals very easy. Through laser, it can mark on jewelry. It is also used to give engraving designs as well as putting hallmarks in jewelry.
It is based on Pulsed Powerful Fiber Laser technology. This technology is a highly reliable laser source. This device is able to mark in all metal and some nonmetal materials. It can mark the minimum line width of 0.03mm and minimum height of 0.3mm for English characters and depth up to 0.3mm.
Its sturdy frame structure for lowest vibration and trouble-free operation makes it ideal for continuing operation like Hallmarking Centers and Jewelry Factories. It can be easily connected with a laptop.
Features
- Less Power Consumption:
Its latest air cool technology makes this machine work on a low power consumption of below 800W. Thus, it is an energy saving device. - Compact and Easy:
It is ergonomically designed and is a compact device. It can be easily placed on workstations, and it occupies a very small space. It is convenient to use for small factories and showrooms. It is very easy to use as it supports auto coding, serial number, batch number, date bar code and two-dimensional codes. - Flexible:
It provides optional motorized rotary marking device for accurate and continuous 360 degree marking inside or outside bangles and rings. - Low Maintenance:
Complete enclosed laser module design with the optical fiber transmission pump light source and air-cooling systems requires no special maintenance and thus makes this device demand low maintenance.
Product Specifications
|
Model |
LM 20 |
|
Laser Power |
20 W |
|
Laser wavelength |
1064 ± 1 nm |
|
Pulse Repetition Rate |
20 Hz - 100KHz |
|
Working Life Of Laser |
Greater than 50,000 hours |
|
Laser Frequency |
20 - 100 kHz |
|
Minimum Width |
0.03 mm |
|
Repeatability |
0.003 mm |
|
Power Supply |
220 V AC, 50 Hz Single Phase |
|
Net Weight (Kg) |
16 kg |
|
Laser Source |
Pulsed Powerful Fiber Laser |
|
Pick Power |
16.5 - 18.5 Kw |
|
Beam Quality M2 |
< 1.4 |
|
Marking Area (mm) |
100 x 100 |
|
Marking Speed |
< 15000 mm/sec |
|
Cooling System |
Air Cooling |
|
Minimum Character |
0.3 mm |
|
Power Consumption (W) |
800 W |
|
Dimension (LxWxH) mm |
450 x 340 x 520 |
|
Packing Dimension (LxWxH) |
650 x 450 x 380 |
