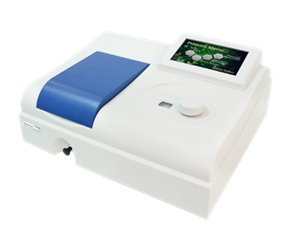

MSE PRO N Plus UV-VIS Spectrophotometer 200-1000nm
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ N Plus UV-VIS Spectrophotometer 200-1000nm
752N Plus UV-VIS Spectrophotometer has the holographic blazed grating monochromator has the advantages of high wavelength accuracy, good monochromaticity and low stray light.
● 7-inch multi color touch-screen, good human-computer interface.
● Linear regression method and coefficient method are added to the concentration test method.
● USB interface is added, and large capacity memory can store 30 concentration curves.
● Adopt microcomputer measurement system, with high conversion accuracy of T-A, automatic adjustment of
● 0% T and 100% T, concentration factor setting and concentration direct reading.
● High accuracy, Good Reproducibility and Stability of Measurement Readings.
● Automatic light gate technology, No need blackbody, to protect the photoelectric sensor
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
● Sample compartment for 5-50mm cuvettes
● Precise automatic T/A changeover
● Automatic zero and full scale adjustment
● 7-inch multi color touch-screen
● Equipped with USB port
● Direct concentration read-out and concentration factor setting function
● Automatic light gate technology to protect photoelectric sensors
Please Contact Us for Available Models and Specifications.
Specifications
| SKU# | LS4610 |
|
Photometry |
Split Beam |
| Monochromator Type | Czerny-Turner |
| Focal Length | 160mm |
| Wavelength Range | 200-1000nm |
| Bandwidth | 2 nm |
| Wavelength Accuracy | ±2 nm |
| Wavelength Repeatability | ≤1nm |
| Wavelength Setting | Manual Turn Knob |
| Photometric Repeatability |
≤0.2% T 0.002 Abs (0-0.5A) 0.004 Abs (0.5-1A) |
| Photometric Range |
0.0-200.0% T -0.097-4.000 A 0.000-9999 C |
| Photometric Accuracy |
±0.5% T ±0.004 Abs (0-0.5A) ±0.008 Abs (0.5-1A) |
| Stray Light | ≤0.1%T( at 220nm NaL, 360nm NaNo2 ) |
| Grating | 1200 lines/mm |
| Noise |
100%（T）noise≤0.3%(T) 0%（T）noise≤0.2%(T) |
| Detector | Silicon Photocell |
| Touch Screen | 7-inch multi color touch-screen |
| Power Requirements | AC220V±22V 50Hz±1Hz, 120W |
| Dimension | 580mm X 460mm X 345mm |
| Weight | 16.5 kg |
Standard Accessories
| Item | Description | Quantity |
| 1 | Operation manual | 1 pcs |
| 2 |
UV WIN8 Spectrum data processing software |
1 set |
| 3 |
Glass cuvette 10mm |
4 Pcs |
| 4 | Quartz cuvette 10mm | 2 pcs |
| 5 |
Power cable |
1 Pcs |
| 6 |
Fuse |
2 Pcs |
| 7 |
Cuvette holder 10mm |
1 Pcs |
Optical Accessories
- Cuvette holder 50, 100 mm
- Cuvettes 20, 30, 50, 100mm
