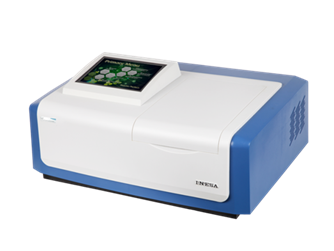

MSE PRO L3 Series Split Beam VIS Spectrophotometer 325-1100nm
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ L3 Series Split Beam VIS Spectrophotometer 325-1100nm
L3 Split Beam VIS Spectrophotometer survey optical system, and blazed holographic gratings. They have outstanding test precision and very competitive prices. and blazed holographic gratings. They have outstanding test precision and very competitive prices. 8-inch color touch-screen, cutting-edge user interface, powerful functions, and easy operation.
With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as:
● Linear regression
● Detailed spectrum scanning
● Concentration direct reading
● Time-based kinetics determination
● Peak / Valley detecting
● GOTO λ
● Multi-wavelength measurement
The equipment is designed with sophisticated power protection system. With high capacity of internal memory, it can store testing results, scanned images, regression equations and correction data. Therefore, it follows a fast initialization when power on.
The instrument can be connected with dedicated printer, which can print testing results, or draw curve from spectral scanning, fixed wavelength time-based scanning, and linear regression.
With USB COM port the device can be connected to a PC, which can not only enhance the performance in data testing and spectrum scanning, but also expand the memory to save more testing results.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
● Split beam optical system
● Automatic wavelength settings
● 8-inch multi color touch-screen
● Automatic 8 position cuvette holder
● Automatic zero and full scale adjustment
● Equipped with USB port
● Thermal plotter optional Software optional
Please Contact Us for Available Models and Specifications.
Specifications
| SKU# | LS4606 |
LS4607 |
|
Photometry |
Split Beam |
Split Beam |
| Monochromator Type | Czerny-Turner | Czerny-Turner |
| Focal Length | 160mm | 160mm |
| Wavelength Range | 325-1100nm |
325-1100nm |
| Bandwidth | 1.8 nm | 1.8 nm |
| Wavelength Accuracy | ±0.5 nm | ±0.5 nm |
| Wavelength Repeatability | ≤0.2nm | ≤0.2nm |
| Wavelength Setting | 8-inch color Touch Screen | 8-inch color Touch Screen |
| Photometric Repeatability |
≤0.2% T 0.001 Abs (0-0.5A) 0.002 Abs (0.5-1A) |
≤0.2% T 0.001 Abs (0-0.5A) 0.002 Abs (0.5-1A) |
| Photometric Range |
0.0-200.0% T -0.301-4.000 A 0.000-9999 C |
0.0-200.0% T -0.301-4.000 A 0.000-9999 C |
| Photometric Accuracy |
±0.5% T ±0.002 Abs (0-0.5A) ±0.004 Abs (0.5-1A) |
±0.5% T ±0.004 Abs (0-0.5A) ±0.008 Abs (0.5-1A) |
| Stray Light | ≤0.03%T(at 360nm NaNo2) |
≤0.03%T(at 360nm NaNo2) |
| Grating | 1200 lines/mm | 1200 lines/mm |
| Noise |
100%（T）noise≤0.2%(T) 0%（T）noise≤0.1%(T) |
100%（T）noise≤0.2%(T) 0%（T）noise≤0.1%(T) |
| Detector | Silicon Photocell |
Silicon Photocell |
| Wavelength Scanning | n/a |
Yes Scanning Speed: Fast-Medium-Slow Baseline:≤±0.002 A(335-1090nm) |
| Power Requirements | AC220V±22V 50Hz±1Hz, 100W |
AC220V±22V 50Hz±1Hz, 100W |
| Dimension | 710mm X 590mm X 505mm | 710mm X 590mm X 505mm |
| Weight | 40 kg | 40 kg |
Standard Accessories
| Item | Description | Quantity |
| 1 | Operation manual | 1 Set |
| 2 |
Glass cuvette 1cm |
4 Pcs |
| 3 |
Power cable |
1 Pcs |
| 4 |
Fuse |
2 Pcs |
| 5 |
Cuvette holder 10mm |
1 Pcs |
Optical Accessories
- UV WIN8 Station Pro software
- Cuvette holder 50, 100mm
- Cuvettes 20, 30, 50, 100mm
