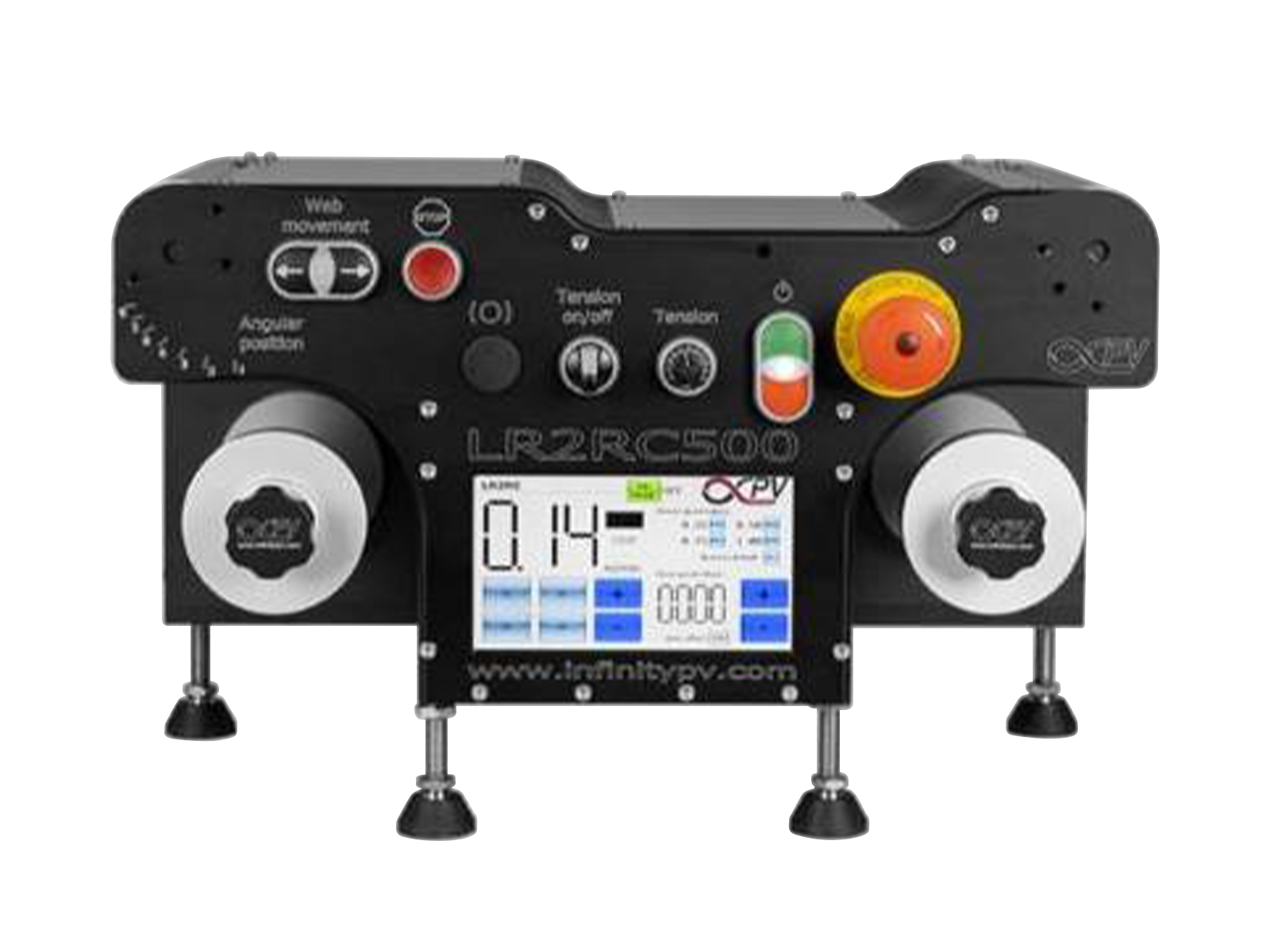

InfinityPV Laboratory Roll-to-Roll Coater LR2RC500 Platform
Buy InfinityPV products from MSE Supplies at the best value.
The Laboratory Roll-to-Roll Coater (LR2RC) revolutionizes the processing of thin functional films with its compact, high-precision design. Ideal for both lab research and small-scale pilot production, this versatile system efficiently processes hundreds of meters of foil. Its modular structure allows for extensive customization, including the choice of unit size and components like slot-die heads, slurry coaters, flexographic printers, syringe pumps, gear pumps, drying systems, and roll-to-roll laminators. Designed for seamless integration into existing lab setups, it bridges the gap between research and production, making it perfect for applications such as batteries, fuel cells, printed solar cells, and sensors. With user-friendly features and adherence to international safety standards, the Laboratory Roll-to-Roll Coater offers a reliable, scalable, and efficient solution for a wide range of industries.
Technical Specifications:
- Web Speed 0.05-2.8 m/min.
- Working Width Up 200 mm.
- Fits 1 Oven System.
- Touch Screen.
- Buttons for Unit Operation.
- Web Tension Control.
- Standard Unwinder/Rewinder Mode.
- Spindles with Adjustable Conical Bobbin Holders.
- Rollers in Anodized Aluminum (Options Available).
- Operates from a Single Phase (240VAC).
- Dimensions (WxDxH): 50 cm x 50 cm x 30 cm | Weight: 30 kg.
Key Features:
- Compact Size: Fits in laboratories, gloveboxes, or fume hoods without additional infrastructure.
- Customizable: Choose from a variety of lengths and widths, with numerous accessories available.
- Easy and Fast Exchangeable Modular Components: Includes printing and coating units, drying and curing systems, foil pretreatment, laminators, trimming knives, and more.
- Modular Drying/Curing System: Accommodates various drying and curing methods.
- Software Control Option: Advanced control options for precision and repeatability.
- Web Tension Control: Ensures consistent quality across runs.
- CE Certified - CSA/UL Compliant: Meets international safety standards.
Application Fields:
- Batteries
- Fuel Cells
- Printed Solar Cells (OPV, Perovskite, DSSC, Tandem)
- Adhesives and Sealants
- Medical Devices (Biocompatible and Drug-eluting Layers)
- Packaging Materials
MSE Supplies offers a variety of roll-to-roll coaters and its accessories. Please contact us for more information.
