MSE PRO MiniGel Vertical Transfer Electrophoresis Chamber

Ready to Ship
SKU: LS0527
$ 945.95

Still have questions? Ask our experts!

Email +1 (520) 783-7989

MiniGel Vertical Transfer Electrophoresis Chamber

MiniGel Transfer Electrophoresis Chambers allow for transferring Nucleic Acid and Protein samples to precast gels to be analyzed via a gel imaging system. The design includes double-sided sponge pads in an effort to prevent leakage and deformation of precast gels.

LS0527: Runs up to 2 gels at once and includes gel holders for 8x10cm and 10x10cm gels.

LS0528: Runs up to 4 gels at once and includes gel holders for 9x9cm gels.

Applications

  • Western Blots
  • Northern Blots
  • Southern Blots

Features

  • Two max chamber capacities available, to accommodate the transfer of 2 total gels and 4 total gels.

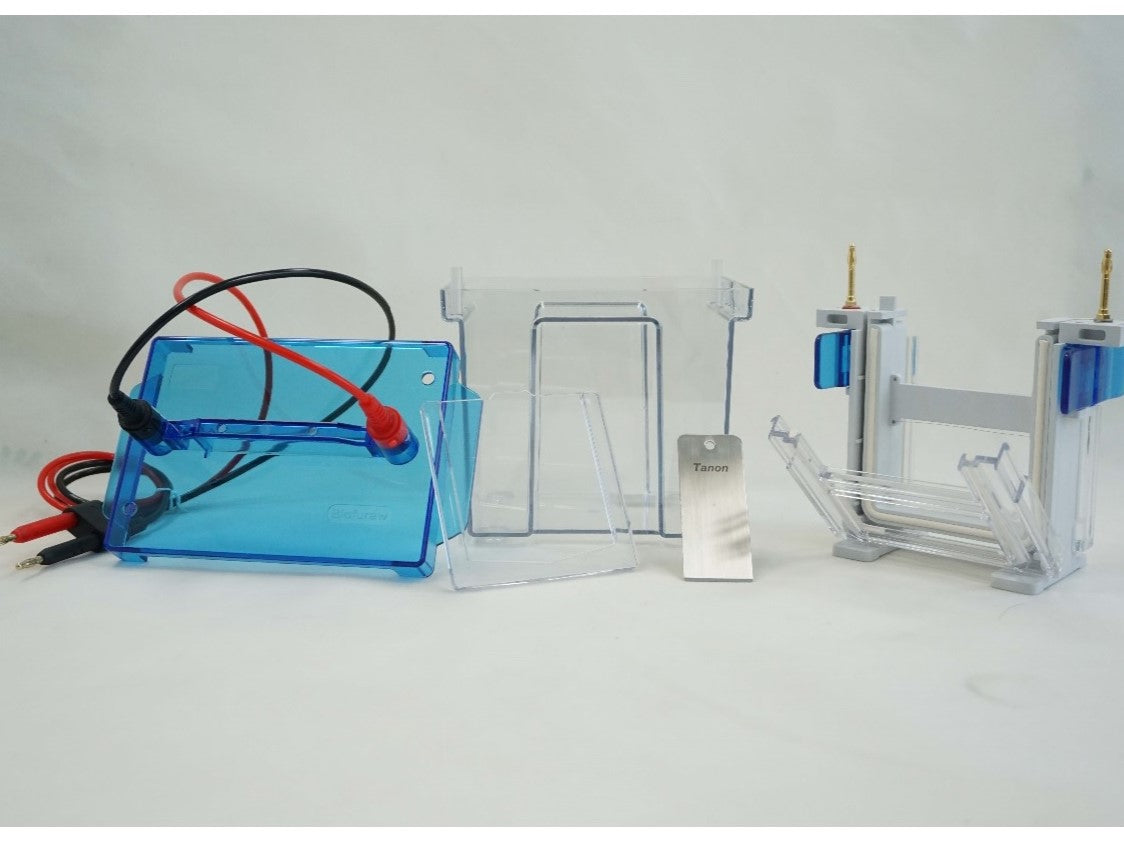

  • Includes the transfer chamber, lid with electrodes to attach to power supply, and transfer cassette.
  • Easy-to-operate transfer glue rack.
  • The electrode frame design generates less heat compared to other chamber brands.

    Specifications

    SKU #  LS0527 (2 gels) LS0528 (4 gels)
    Chamber Dimensions (LxWxH, cm) 17.5x12.5x14 17.5x12.5x14
    Loading Gel Area (cm)

    8x10

    and

    10x10

    		 9x9
     Outer Chamber Buffer Capacity (mL) 1100
    		 1200
    Inner Chamber Buffer Capacity (mL) 270
    		 270
