b.safe System Waste Caps Capacitive (S60, 1xGL25 (m), 1xGL14 (f) ) (PE-EX/PP-GF )
Regular price
$ 715.95
Couldn't load pickup availability
Still have questions? Ask our experts!
b.safe System Waste Caps Capacitive (S60, 1xGL25 (m), 1xGL14 (f) ) (PE-EX/PP-GF )
Product Description

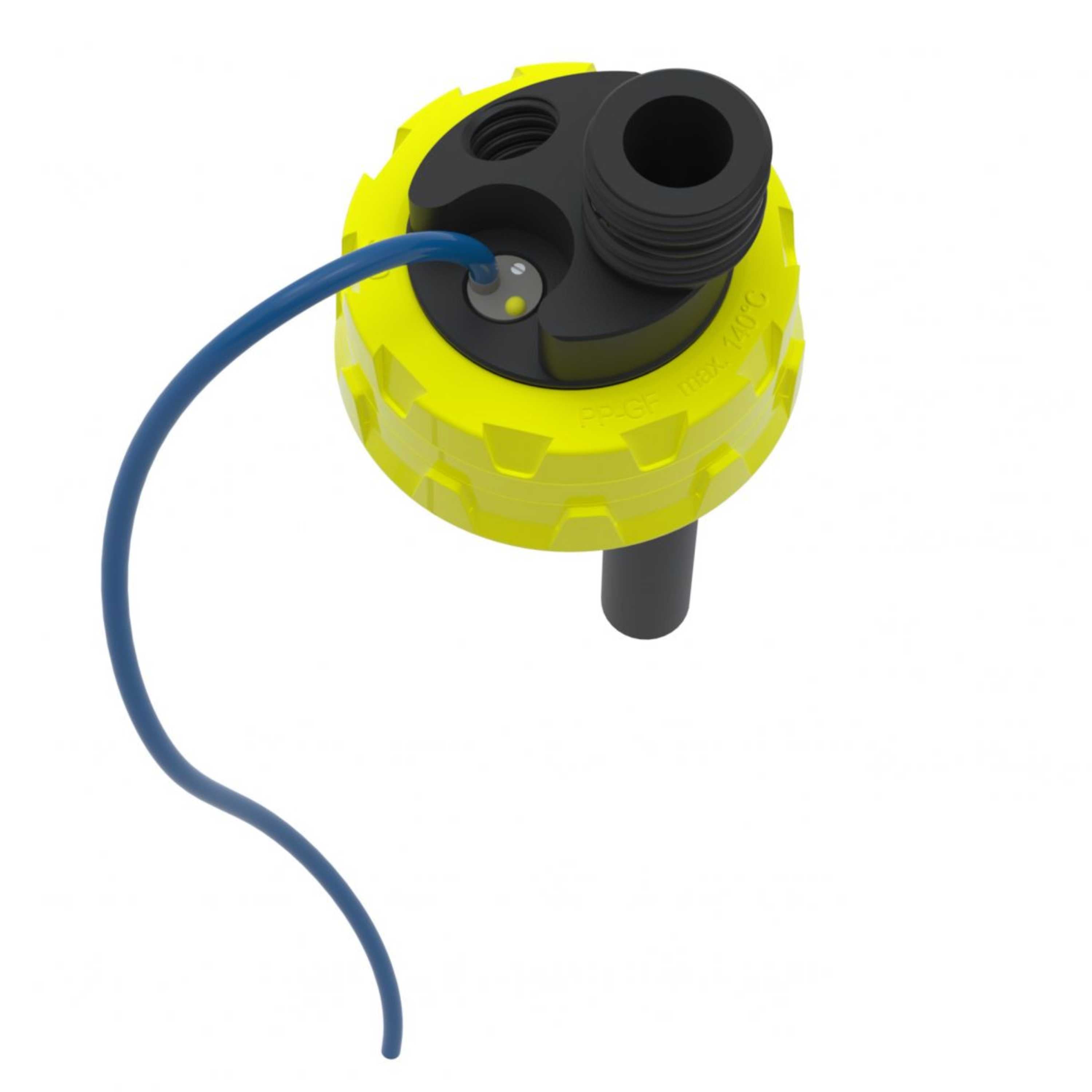

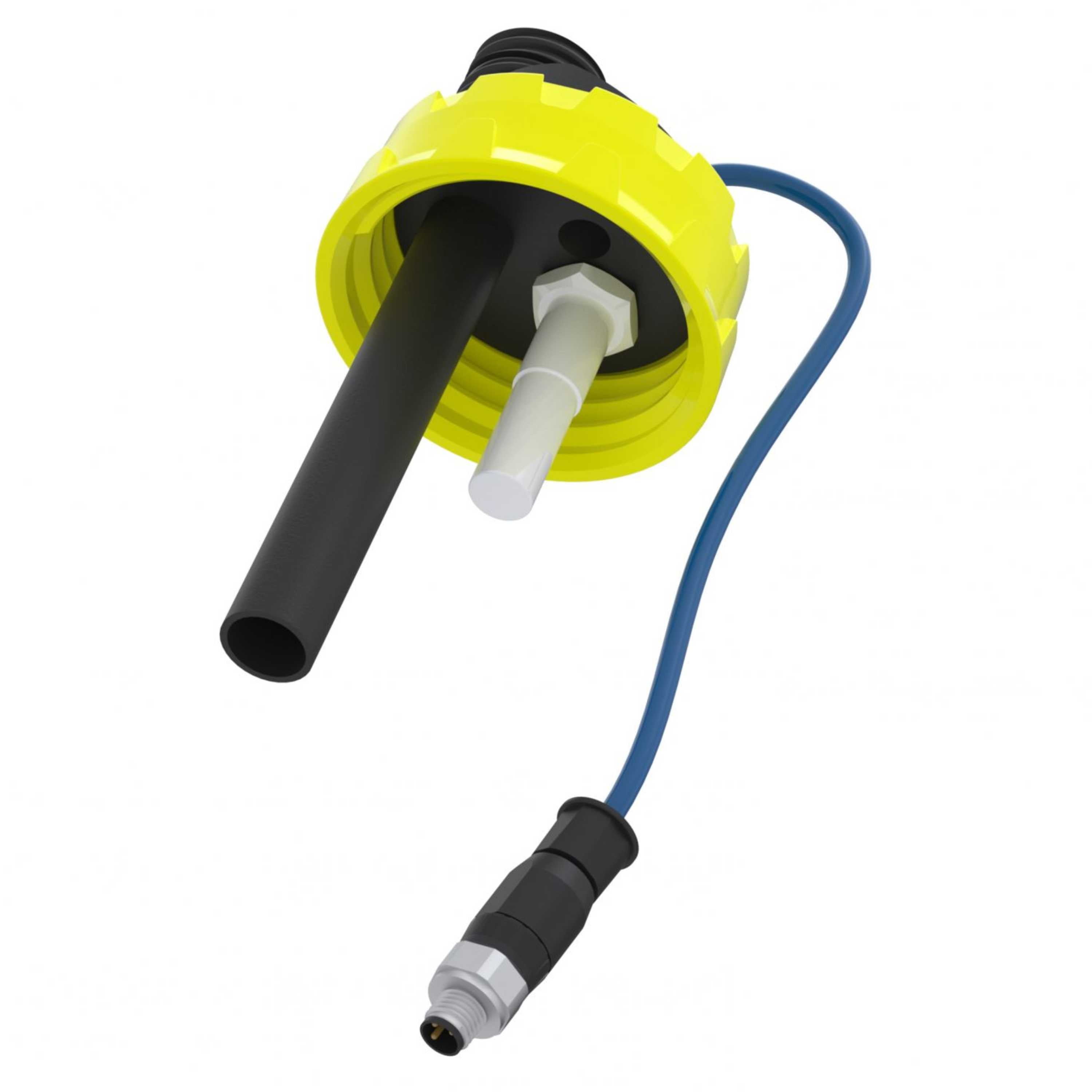

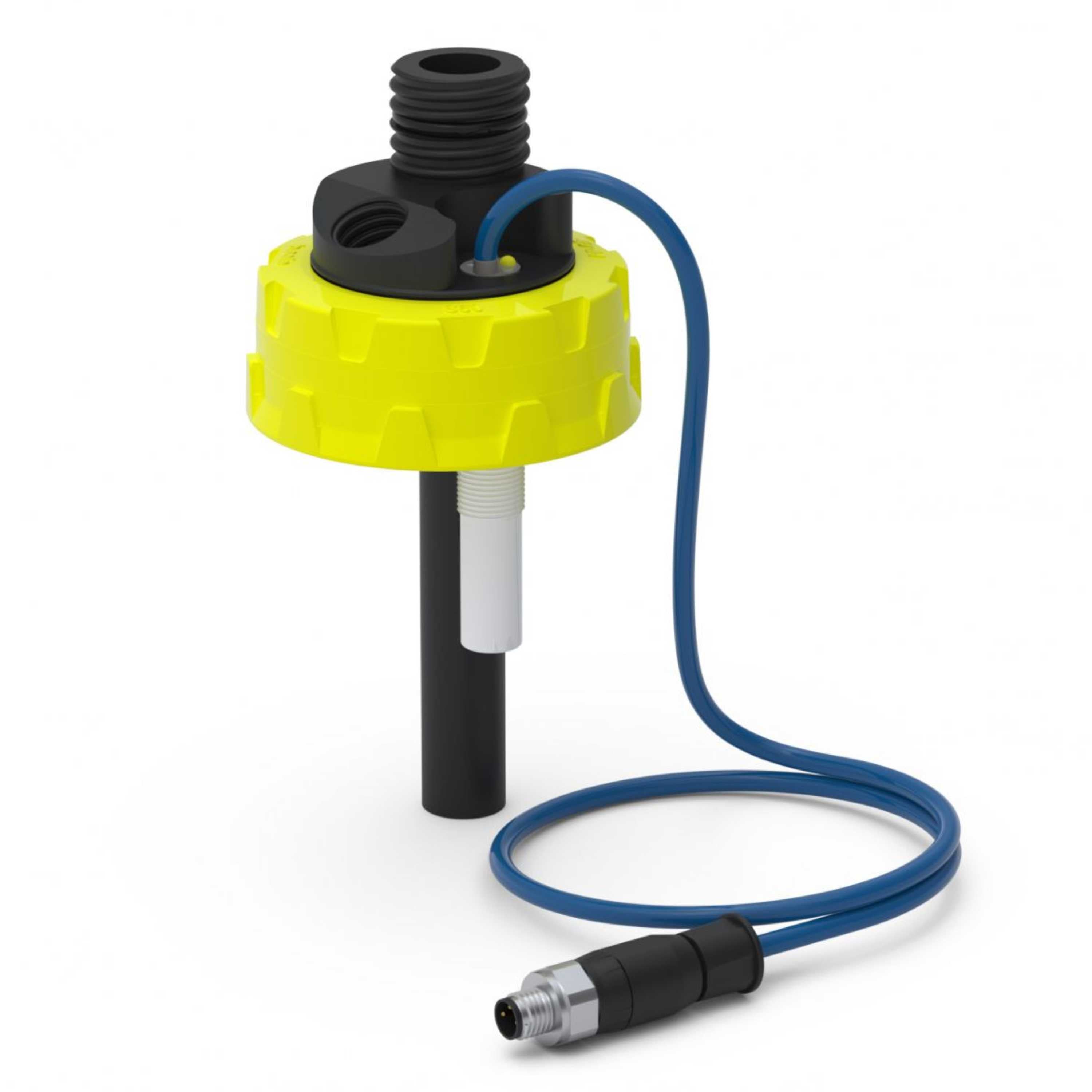

Screw cap made of PP, free movable insert made of conductive PE-EX, permanently fixed sensor for capacitive level control with cable (0,5 m). With 1 hose connector GL 25 suitable for b.safe Waste Tubes and 1 connector GL14 for fixing the b.safe Venting Hose or a b.safe Exhaust Filter. Design and scope of delivery according to table.
Applications

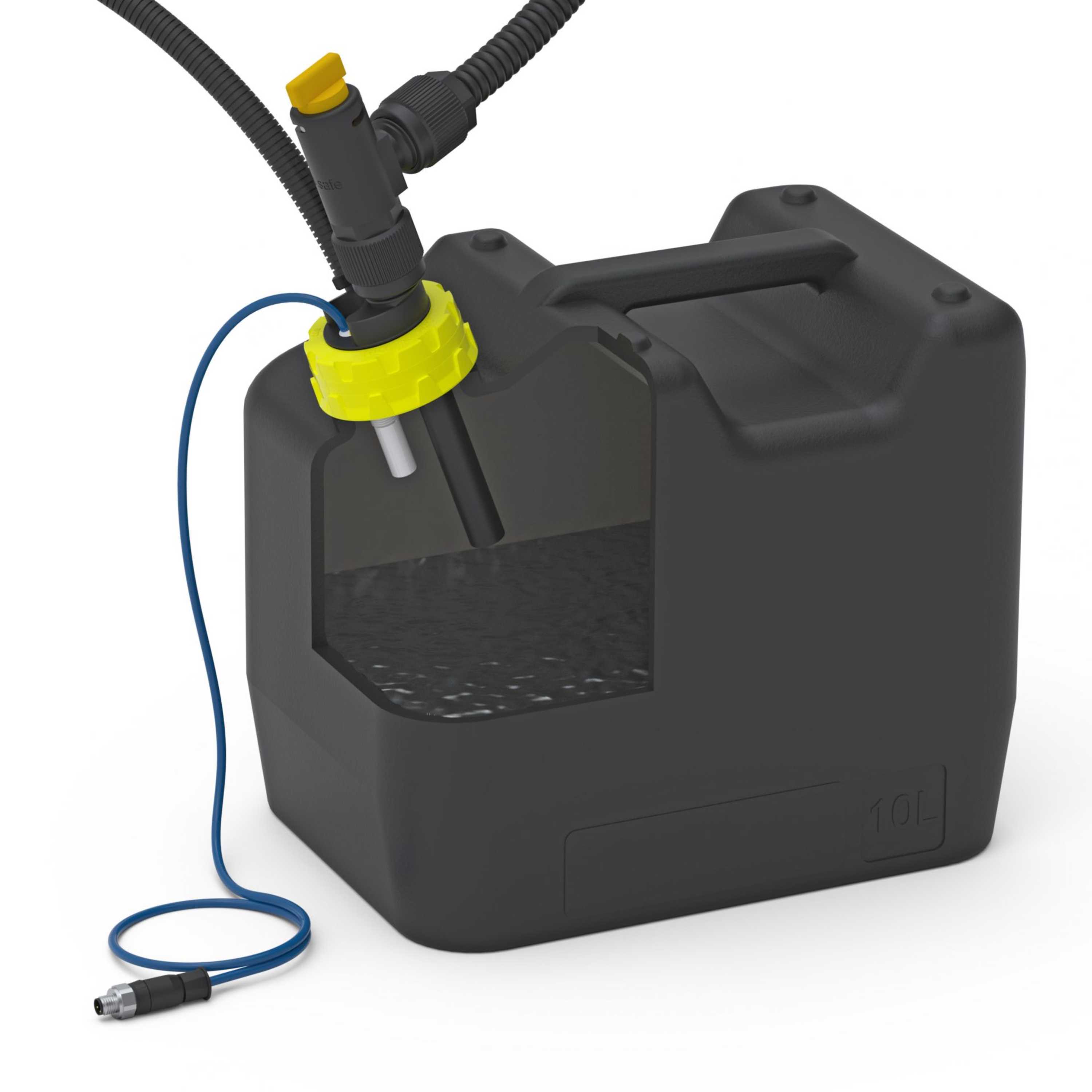

To avoid spill over of canisters through the connection of a Waste Cap capacitive to a b.safe Display for electronic level control. With the use of b.safe Waste Tubes, solvent waste is led directly into the canister, solvent vapors are held back by the exhaust filter with activated carbon or can be led to the hood by means of a venting hose
Dimensional Drawing
Specifications:
|
Model |
R1325-60 |
|
Chemical resistance |
++ very good |
|
Conductivity |
1.000 kOhm |
|
Material |
PE-EX/PPS |
|
Temperature resistance |
from -50°C to +80°C |
|
Filling below surface level |
nein / no |
|
For Canister thread |
S60 |
|
Hose connector |
1x GL25 (m) |
