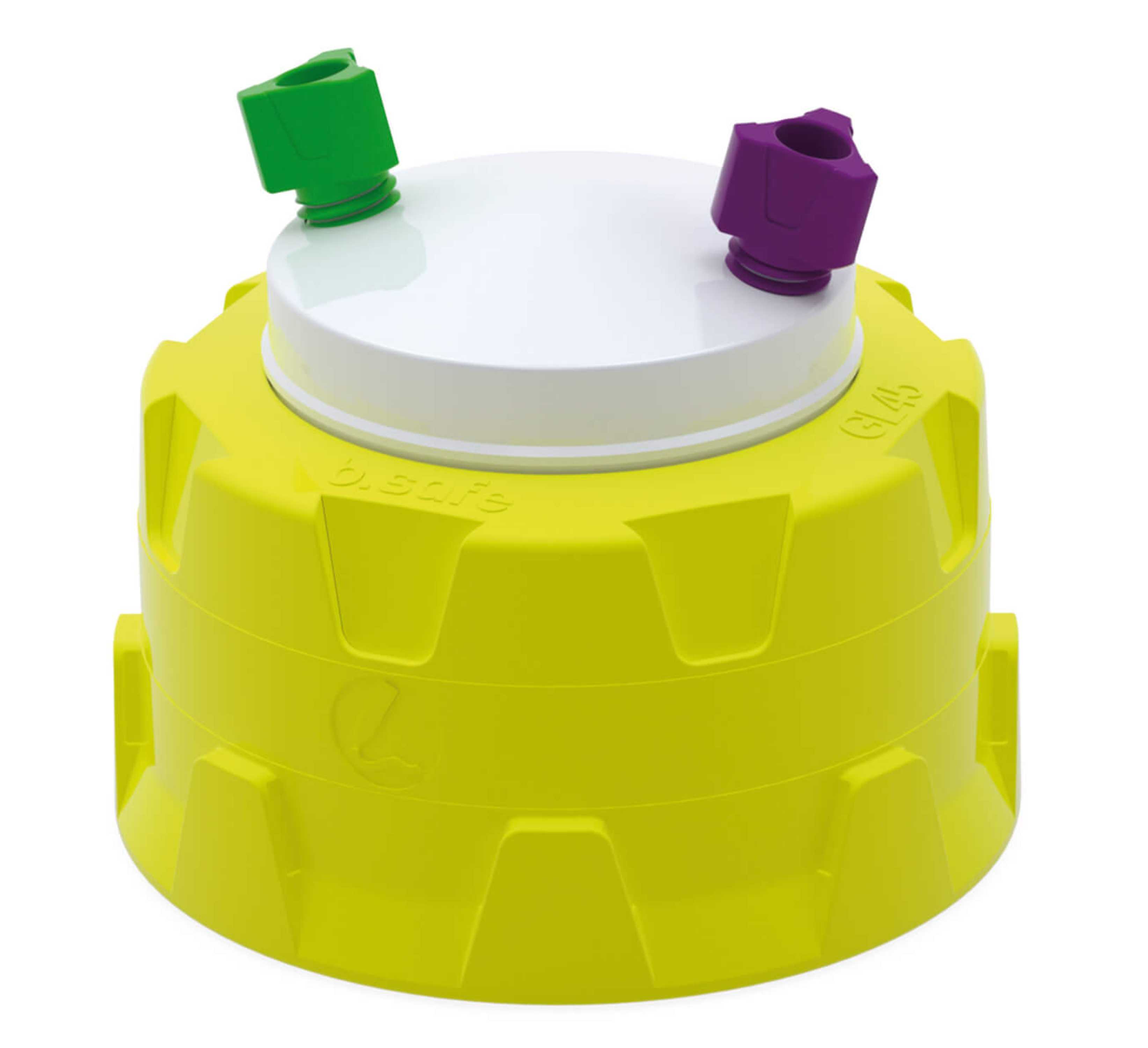

b.safe System Caps GL45 (2x UNF 1/4" ) (PTFE/PP )
Regular price
$ 109.95
Couldn't load pickup availability
Still have questions? Ask our experts!
b.safe System Caps GL45 (2x UNF 1/4" ) (PTFE/PP )
Product Description
Screw cap made of PP for free movable GL45 thread, insert made of PTFE. With PFA fittings for capillaries with O.D. 1,6/2,2/3,2 mm (thread UNF 1/4“), hose connector for tubings I.D. 6,5-8 mm (thread NPT 1/8“). Adapted to the installation on b.safe Desktop Mounts GL45 or b.safe Multiports GL45. Capillaries are inserted from the top, hose connectors are connected sideways in order to prevent tubes from bending and to avoid any backflow. Version and scope of delivery as per chart.
Applications
Combination of capillaries and hoses of HPLC systems in one desktop mount. Unused connections can easily be closed with b.safe Blind Fittings. As an option you can use b.safe Corrugated Tubing Coupling Cat. No. M 514-.. to connect corrugated tubes with I.D. 6,5 or 8,5 mm.
Dimensional Drawing
Specifications:
|
Model |
R1145-02 |
|
Chemical resistance |
++ very good |
|
Material |
PTFE, PP |
|
Temperature resistance |
from -50°C to +80°C |
|
Hose Connectors |
0 |
|
Number of Fittings [green] |
2 x Ø 1,6 mm |
|
Number of Fittings [purple] (2) |
2 x Ø 2,2 mm |
|
Number of Fittings [yellow] (3) |
2 x Ø 3,2 mm |
|
Number of capillary connectors |
3 |
