b.safe Desktop Mount GL45 (1x GL 45 (m), 1x GL 25 (m) ) (PE-EX )
Regular price
$ 230.95
Couldn't load pickup availability
Still have questions? Ask our experts!
b.safe Desktop Mount GL45 (1x GL 45 (m), 1x GL 25 (m) ) (PE-EX )
Product Description

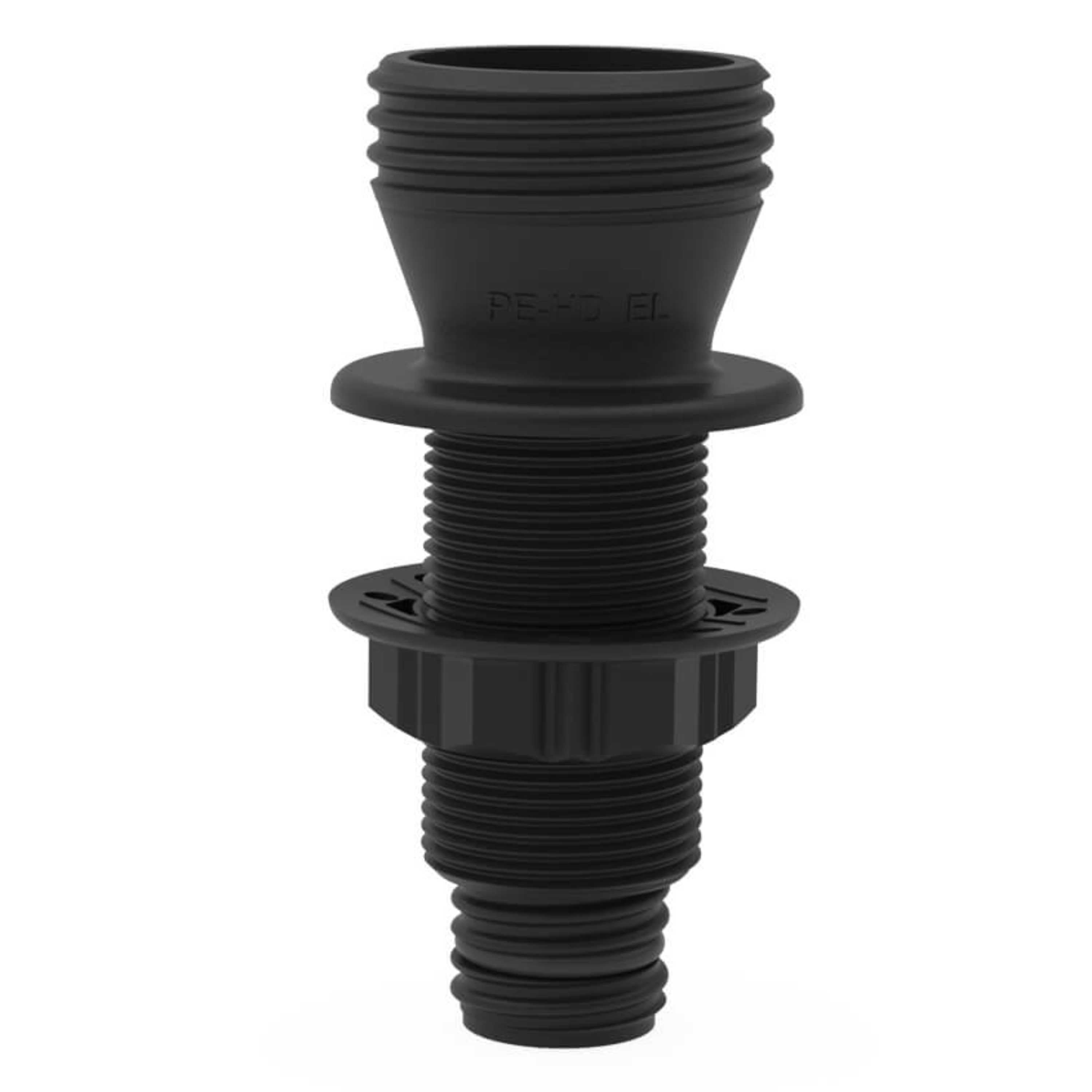

Made of static dissipative PE-EX, suitable for tabletops with a thickness of 10 to 35 mm, easy fixing with self-adhesive, silicone-free sealing washer and counter nut. Connection at upper side: male thread GL45 to install either a b.safe Funnel with screw cap GL45 or b.safe System Cap GL 45. Connection at bottom: male thread GL25 for direct connection with flexible b.safe Waste Tubes.
Applications

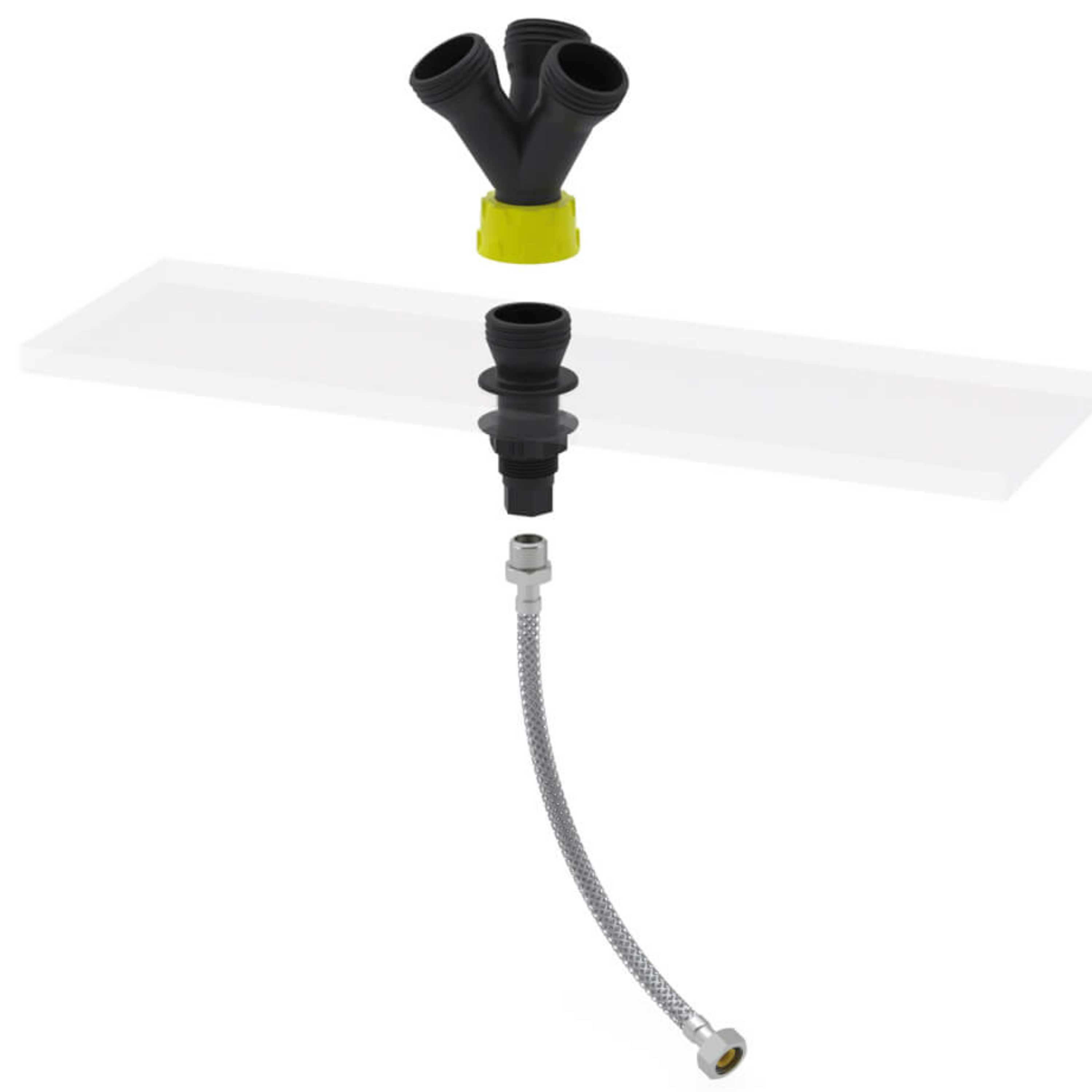

Integration of b.safe System Caps and b.safe Funnels in laboratory hoods or working tables. Liquid solvent waste can be led directly into canisters via b.safe Waste Tubes with screw connection GL25.
Dimensional Drawing
Specifications:
|
Model |
R1100-45 |
|
Chemical resistance |
++ very good |
|
Conductivity |
1.000 kOhm |
|
Material |
PE-EX |
|
Temperature resistance |
from -50°C to +80°C |
|
Connection [bottom] (2) |
GL25 männlich/male |
|
Connection [upper side] |
GL45 männlich/male |
|
Total length [mm] |
1 |
Downloadable links:
Technical information
