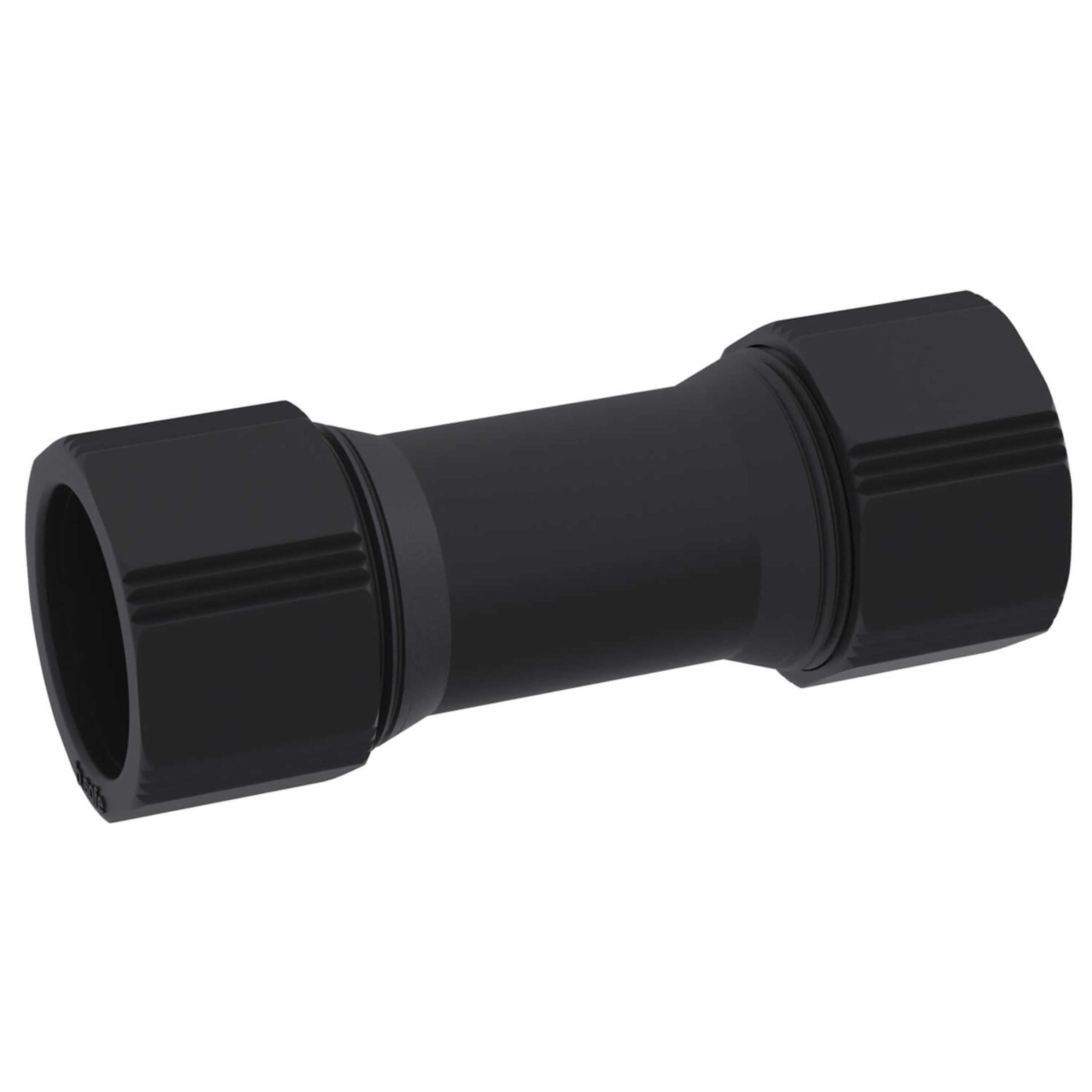

b.safe Connector for Waste Pipes (L 125 mm, Ø 44 mm ) (PE-EX )
Regular price
$ 174.95
Couldn't load pickup availability
Still have questions? Ask our experts!
b.safe Connector for Waste Pipes (L 125 mm, Ø 44 mm ) (PE-EX )
Product Description

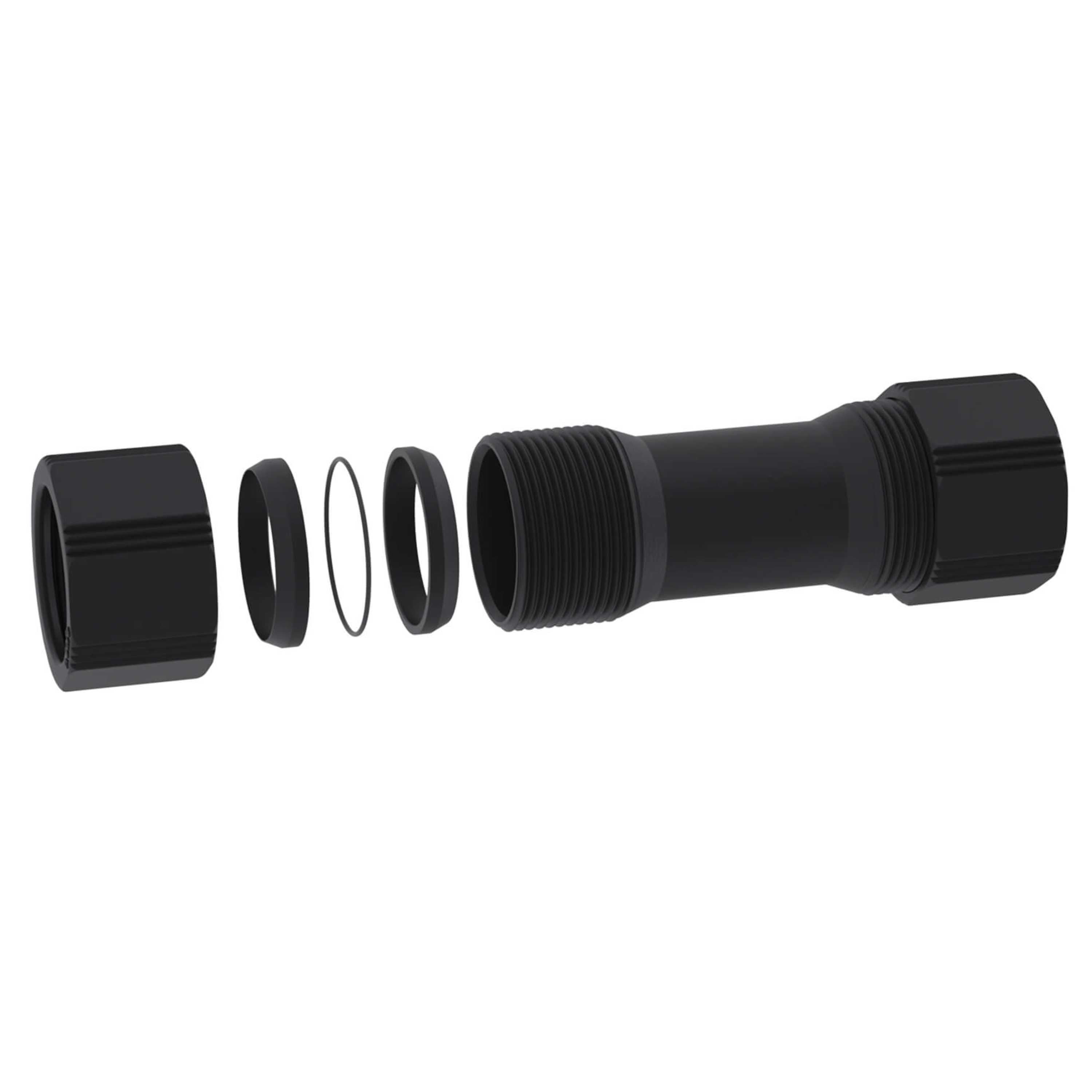

Straight connector made of static dissipative PE-EX with clamp Connection on both sides for fixing and clamping b.safe Waste Pipes with O.D. 32 mm. Each clamp connection consists of 1 lock nut in PE-EX, 2 conical sealing rings in PTFE-EX and 1 O-ring in EPDM.
Dimensional Drawing
Specifications:
|
Model |
R1172-01 |
|
Chemical resistance |
++ very good |
|
Conductivity |
1.000 kOhm |
|
Material |
PE-EX, PTFE-EX |
|
Temperature resistance |
from -50°C to +80°C |
|
Connection |
2x Klemmverbindung / clamp connection Ø 32 mm |
|
Dimensions [(LxØ) mm] |
125 x 44 |
|
Form |
gerade / straight |
Downloadable links:
Technical information
Material Safety Data Sheets
