AS ONE Molding Vacuum Desiccator 300 x 287 x 325mm MVD-100

Order upon Request
SKU: ASONE1-6158-01
$ 1,202.95

Still have questions? Ask our experts!

Email +1 (520) 789-6673

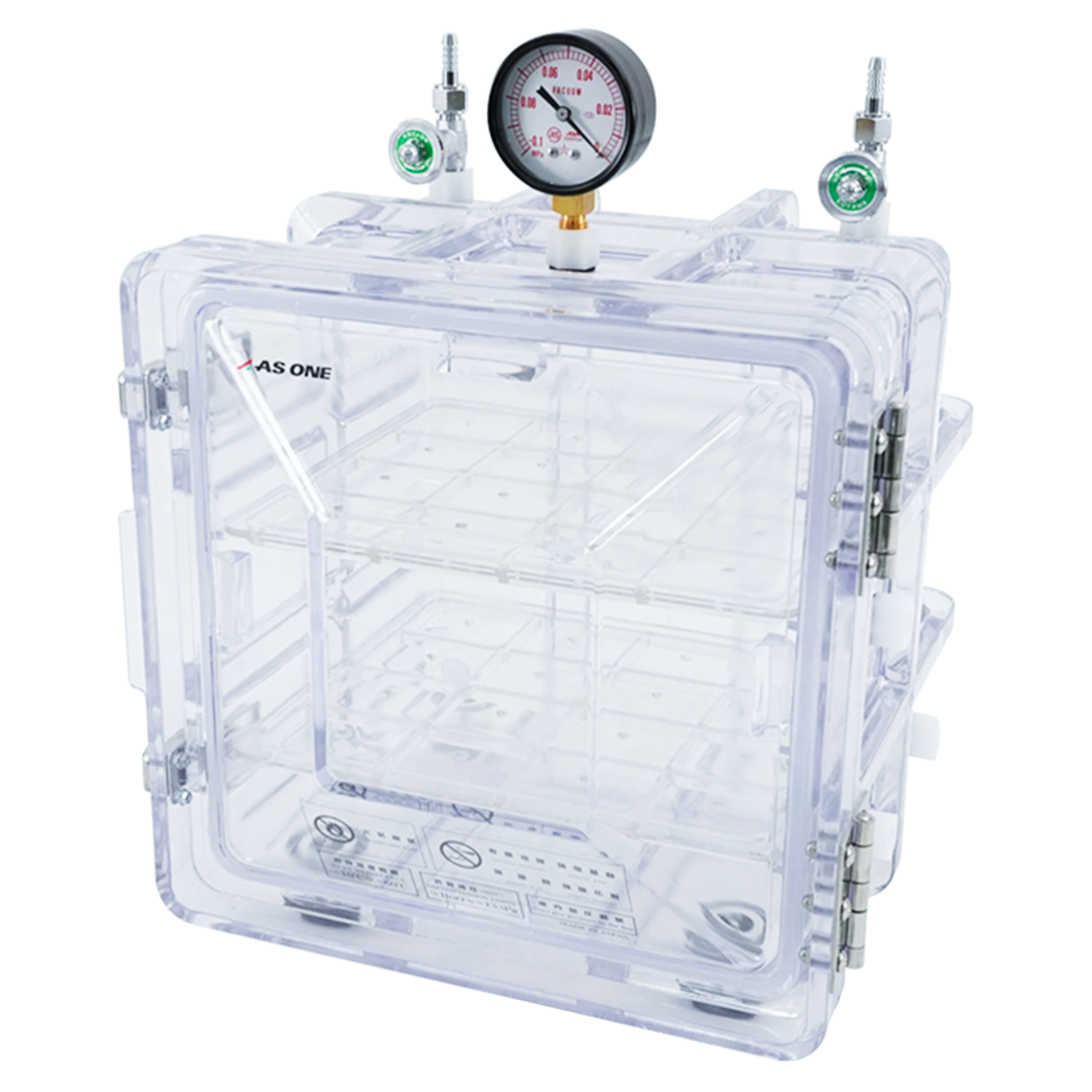

AS ONE Molding Vacuum Desiccator 300 x 287 x 325mm, MVD-100

Buy AS ONE Corporation products from MSE Supplies at the best Value. Made in Japan.

Features

  • Tough vacuum desiccator with PC (polycarbonate) integral molding.
  • High sealing silicone packing is used for the seal part of the door and main body, so there is no need for grease.
  • Vacuum gauges and valves can be mounted on either the top or right side of the body.
  • High-performance integrally molded vacuum desiccator.

Specifications:

Material:  PC (polycarbonate)
Allowable vacuum:  1 Torr (about 133 Pa)
number of shelves:  4 stages
Capacity:  Up to 13 L
Weight:  7 kg
Load tolerance:  Body / approx. 50 kg, shelf board / approx. 5 kg
Model number:  MVD-100
external dimension (mm):  300 x 287 x 325
inner size (mm):  250 x 210 x 250
Accessories:  vacuum valves (φ8 mm nipple base portion R 1/4) x 2 pieces, vacuum gauge x 1 piece, shelf board × 2 pieces
