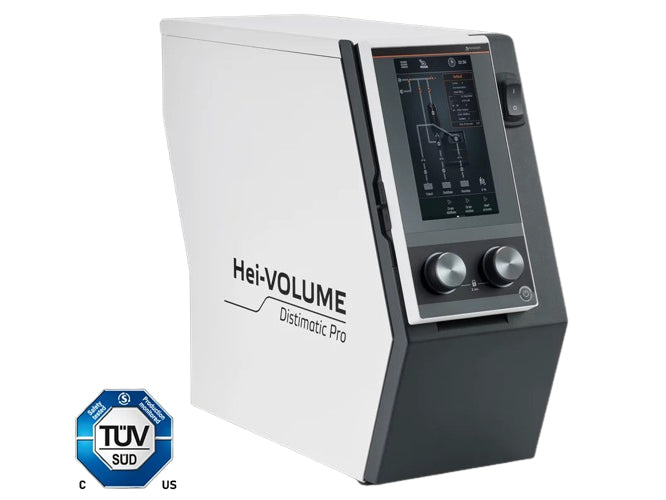

Heidolph Distimatic Pro Industrial (For Glassware Set R)
For distilling high boilers and operating under reflux: Version with adapter for Hei-VAP Industrial with R glassware.

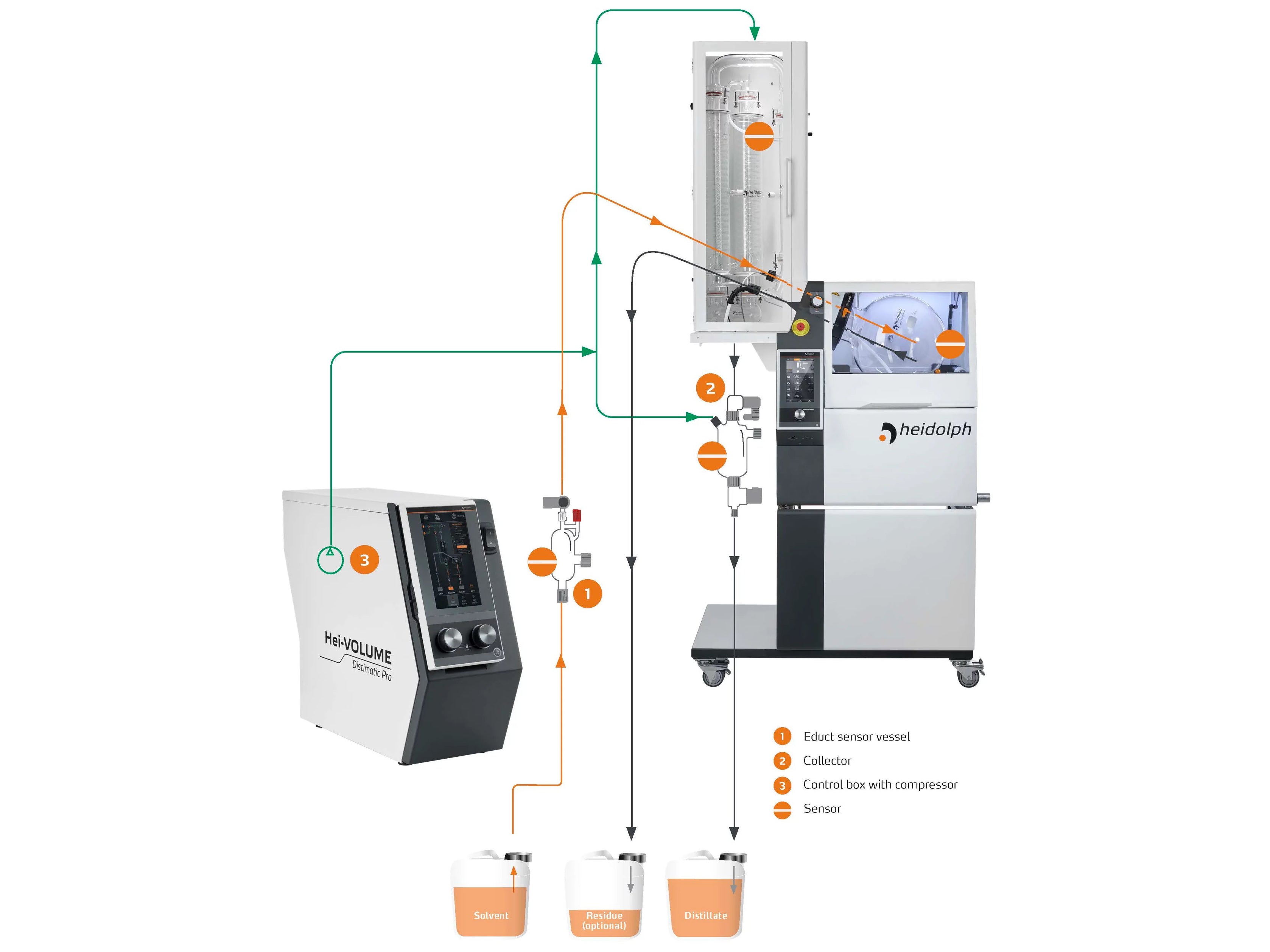

You can enter the parameters for the sensor- or time-controlled filling of the rotary flask via the removable 7“ touchscreen control panel. The emptying time of the coated collector vessel with condensate cooling (approx. 1 l) by the compressor can also be programmed here. In addition, you can start the automatic cleaning mode and manual operation. The control box with the integrated compressor of the Hei-VOLUME Distimatic Pro can be mounted directly with all components on a Hei-VAP Industrial large-scale rotary evaporator using the bracket supplied.
In combination with the corresponding evaporator system, the Hei-VOLUME Distimatic Pro automatic module enables efficient, unattended operation for every area of application.
For the greatest possible safety and a wide range of applications, all parts that come into contact with the media, including the supplied tubing, are made of chemical-resistant materials.
Product Parameter
| Permissible ambient conditions | 5 – 31 °C at 80 % rel. humidity 32 – 40 °C decreasing lineary up to max 50% rel. humidity |
| Weight | 17 kg |
| Protection class (EN 60529) | IP 42 (Housing and control panel) |
| Display | Touchdisplay; Digital; detachable |
| Power input | 1500 |
| Dimensions (w/d/h) | 186 x 429 x 521 mm |
| Compatibility | Hei-VAP Industrial |
| Automatic refill of sample | yes |
| Automatic discharge of condensate | yes |
| Automatic drainage of residue | no |
| Emergency-Stop button | on-off switch and optional |
| Functional Principle | Overpressure |
