MSE PRO Color Glass Windows
Couldn't load pickup availability
Customizable Product
Together with our experts we will create a product designed for your needs
Still have questions? Ask our experts!
MSE supplies offers customized Color Glass Windows with different materials, dimension, surface qualify, etc.

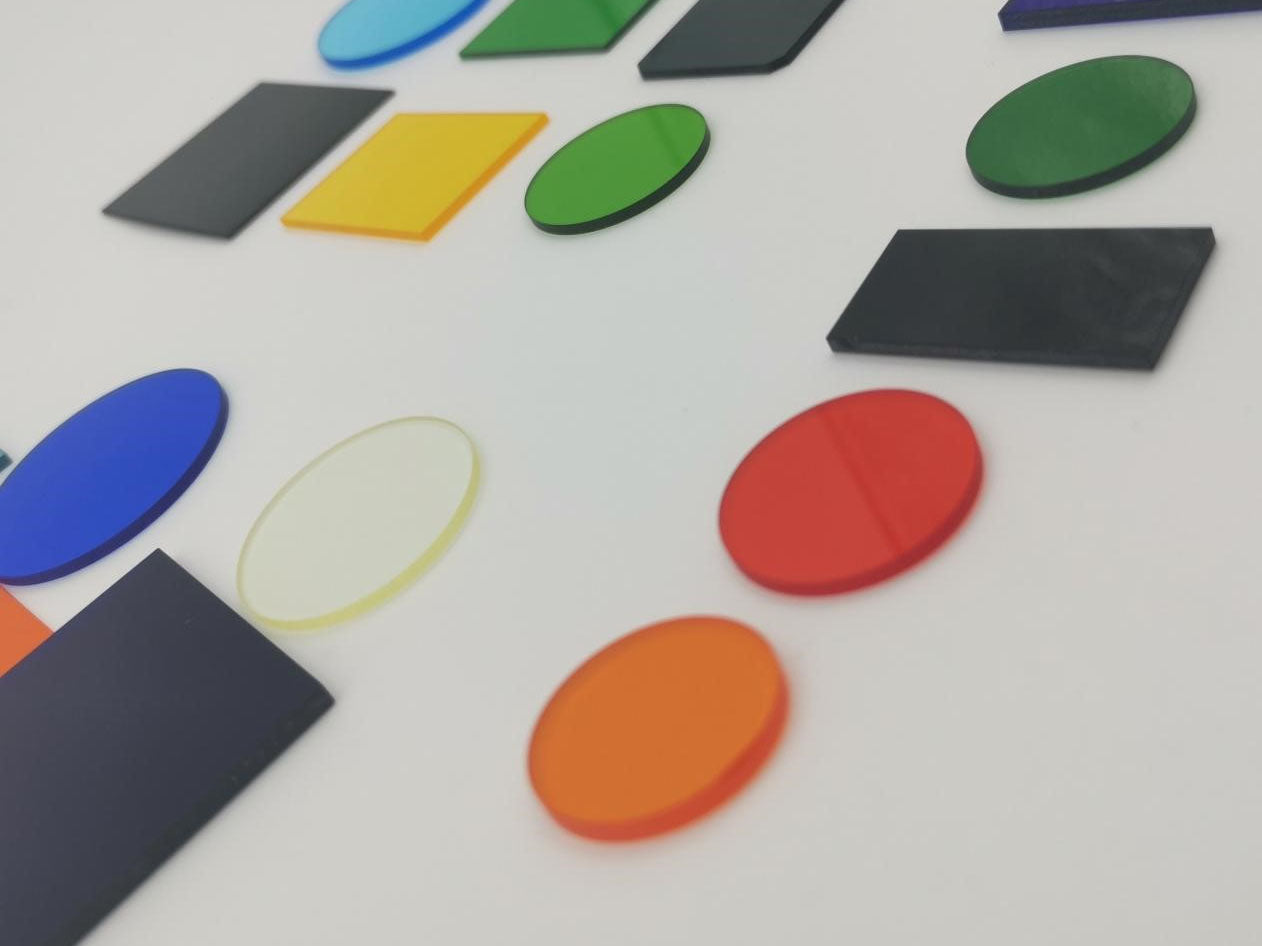

Color glass windows, also known as color glass filters, block light with certain wavelength and allow the rest to pass. The amount of light absorption is the function of dye concentration and window thickness. It is widely used in clinical chemistry, fluorescence microscopy, etc.
MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
Technical Data:
| Parameters | Value |
| Material | Color Glass |
| Size (mm) |
2-500 |
| Size Tolerance (mm) | +0/-0.01~+0/-0.1 |
| Thickness Tolerance (mm) | ±0.01~±0.1 |
| Irregularity (P-V) @ 632.8nm | λ/4~λ |
| Surface Quality | 20/10~80/50 |
| Parallelism | <30”~3' |
| Clear Aperture (%) | >90 |
| Bevel | Protective bevel as needed |
| Coating | Uncoated, AR, BBAR |
