Melt Spinner MSP 10, Made in Germany by Edmund Buhler
Couldn't load pickup availability
Customizable Product
Together with our experts we will create a product designed for your needs
Still have questions? Ask our experts!

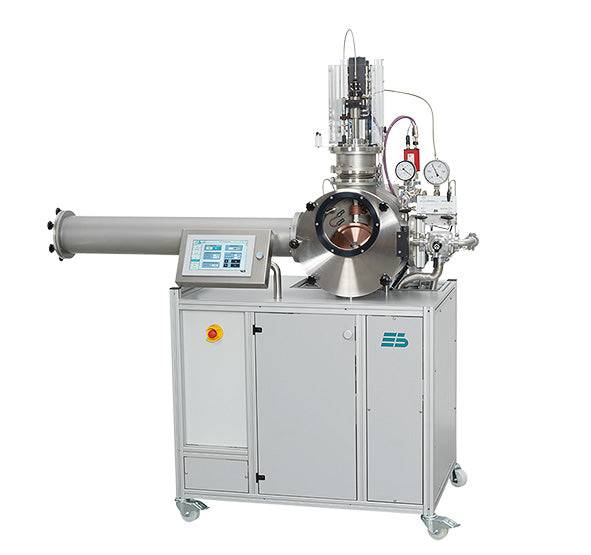

Melt Spinner Model MSP 10 is Made in Germany by Edmund Buhler. This is the latest model and replaces the previous Melt Spinner SC model.
Description
- Laboratory scale system for max. 5 or 10 g per run
- Copper spinning wheel 200 mm
- Complete system consisting of a high vacuum chamber, rack system, adequate high vacuum pumping system (including turbo-molecular or diffusion pump), and RF generator (different models available, 5 - 6 kW)
Details
| Max. charge: | 5 - 10 g (depending on generator) |
| Generators: | 5 kW / 6 kW |
| Spinning wheel: | solid copper, 200 mm diameter |
| Width of ribbons: | 1 - 10 mm |
| Connection: |
400 V, 3-ph, 50/60 Hz (generator) 230 V, 50/60 Hz (melt spinner) Transformer is available for connection to other electric outlets |
| Crucibles: | boron nitride or quartz, with slit nozzle or round nozzle |
| Options: | Infrared quotient pyrometer, Automatic crucible positioning system TPS 1, Casting option, Recirculating chiller |
| PDF Downloads: | > Melt Spinner MSP 10 |
MSE Supplies is the exclusive distributor of Edmund Buhler products in the United States, Canada and Mexico.
