Hioki Electrode Resistance Measurement System RM2610 PRO Kit

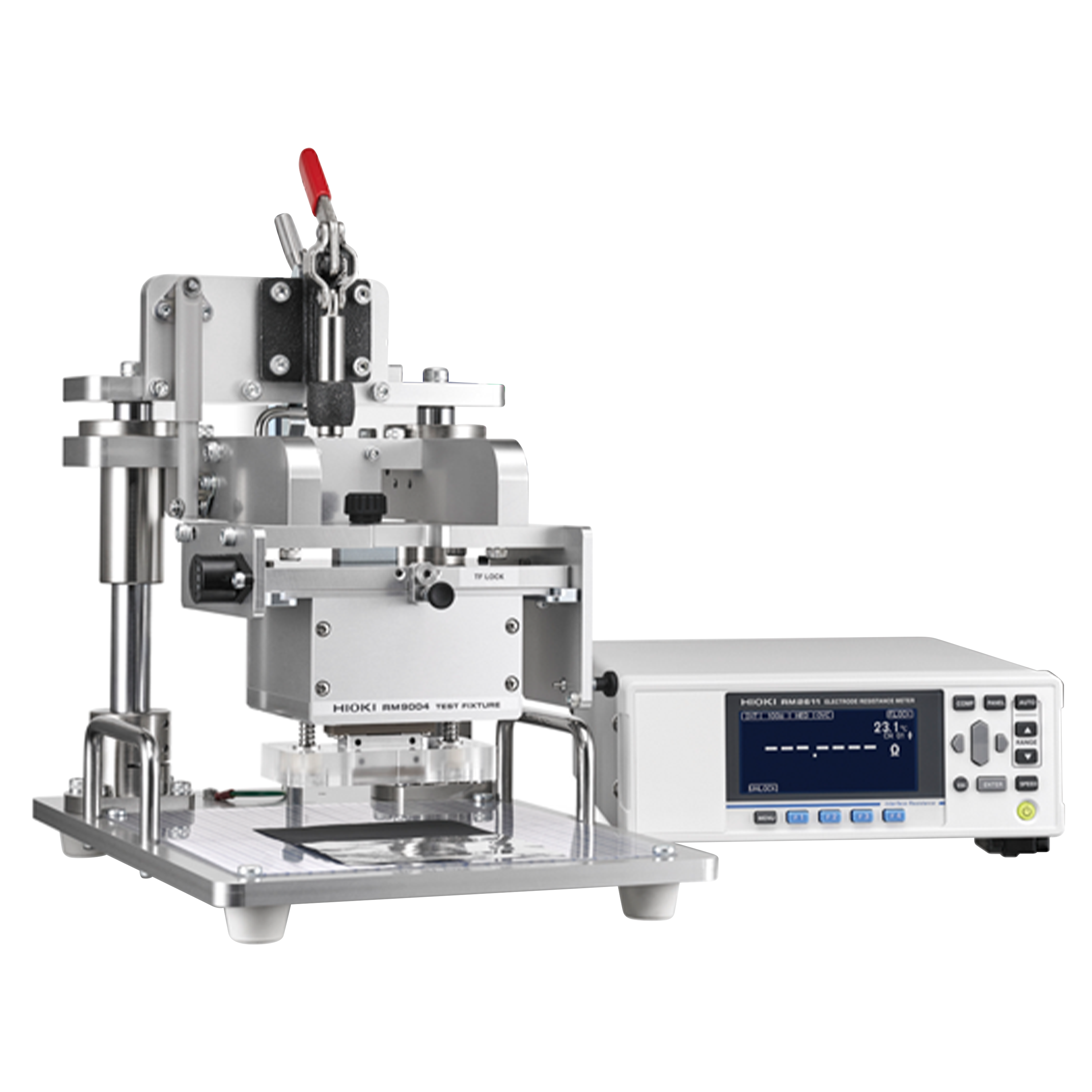

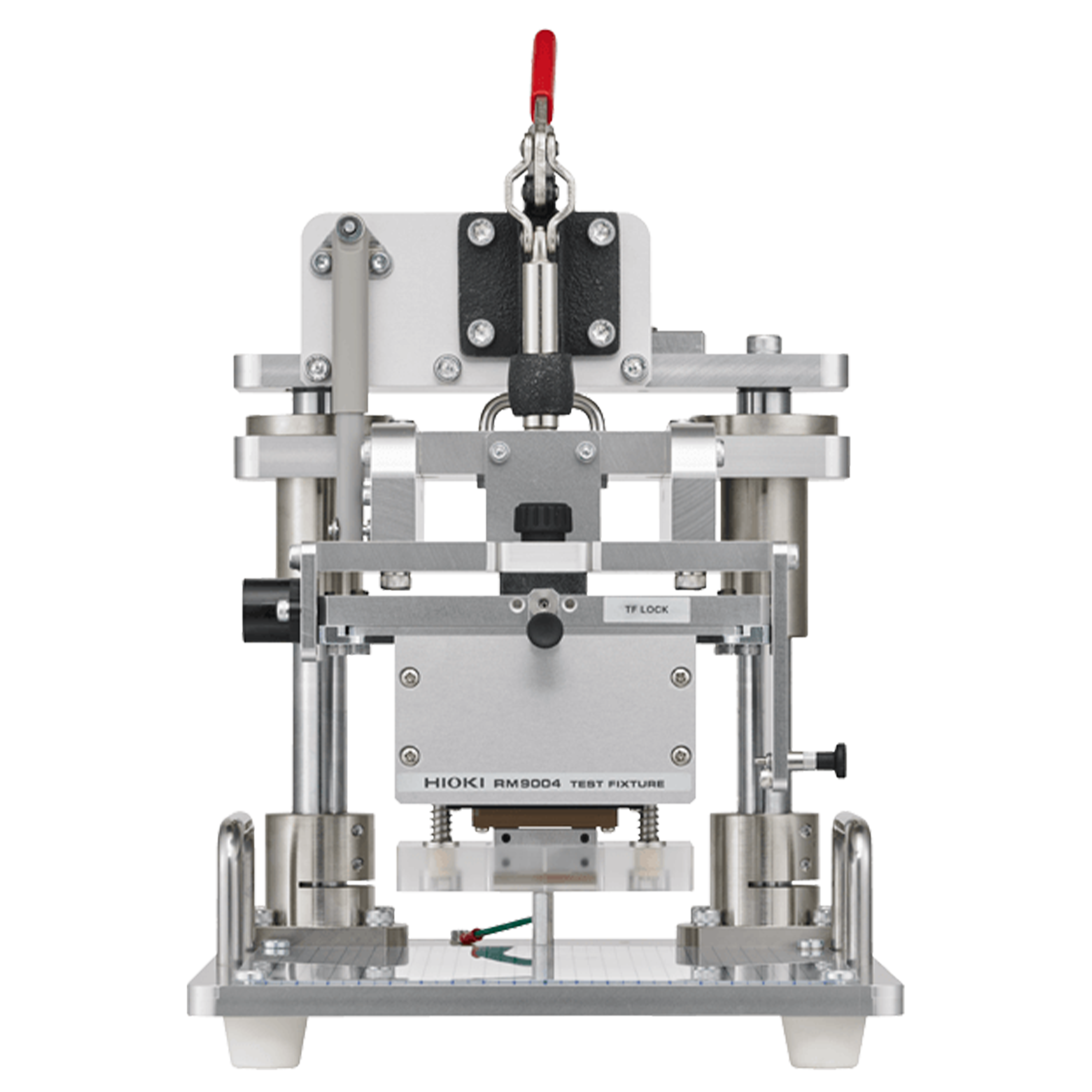

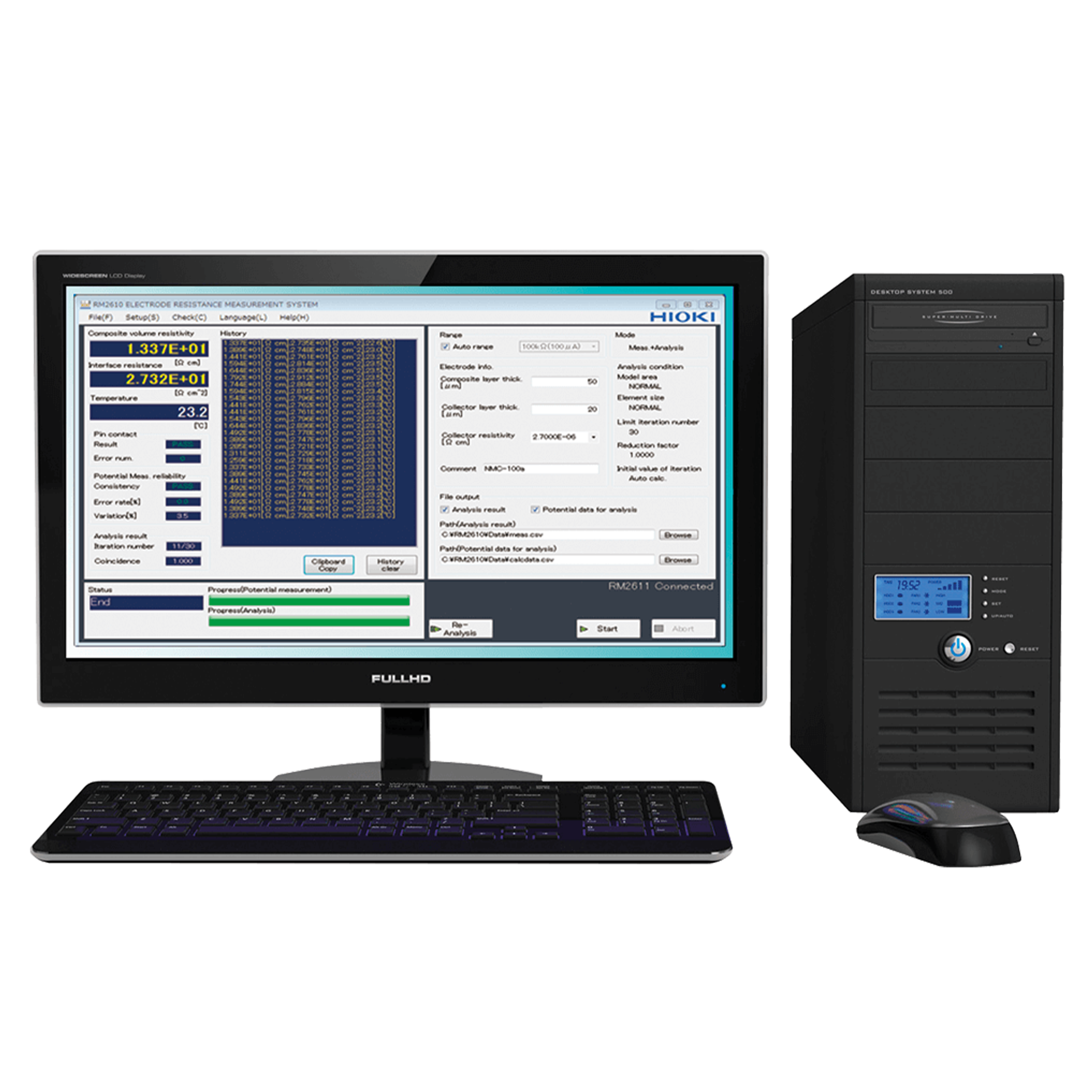

The RM2610 isolates and quantifies the resistance characteristics of electrode sheets, a major component of lithium-ion batteries (LIBs), as two components: the composite layer resistance and the interface resistance between the composite layer and collector. The system allows users to visualize these two quantities by measuring the surface of the electrode sheet with a test fixture that consists of an array of test probes and then using proprietary analytical techniques to quantify them.
HIOKI products are authorized for sale by MSE Supplies in the United States only. Please contact us for international orders.
Basic specifications
RM2611 Electrode Resistance Meter requires regular calibration. For more information about calibration, please contact us.
| Measurement target | Positive and negative electrode sheets for rechargeable lithium-ion batteries | |||||
|---|---|---|---|---|---|---|
| Measurement parameters | Composite resistivity [Ωcm] Interface resistance (contact resistance) between the composite layer and current collector [Ωcm^2] |
|||||
| Computation method | Inverse problem analysis of potential distribution using the finite volume method | |||||
| Information necessary for computation | • Composite layer thickness [μm] (for 1 side) • Current collector thickness [μm] • Current collector volume resistivity [Ωcm] |
|||||
| Measurement time | - Contact check + potential measurement : approx. 30 sec. - Calculation : approx. 35 sec. (on a PC with Intel core i5-7200U CPU) The measurement time may vary depending on the measurement target and the processing capacity of the PC. |
|||||
| Measurement current | 1 μA (min.) to 10 mA (max.) | |||||
| Number of probes | 46 | |||||
| Recommended PC specifications | CPU: 4 or more threads RAM: 8 GB or greater (4 GB required) Operating system: Windows 7 (64-bit), 8 (64-bit), 10 (64-bit) |
|||||
| Temperature measurement function | Measures temperature near the test fixture | |||||
| Included accessories | TEMPERATURE SENSOR Z2001 ×1, USB cable ×1, USB license key ×1, Probe check board ×1, Power cord ×1, Instruction manual ×1 | |||||
