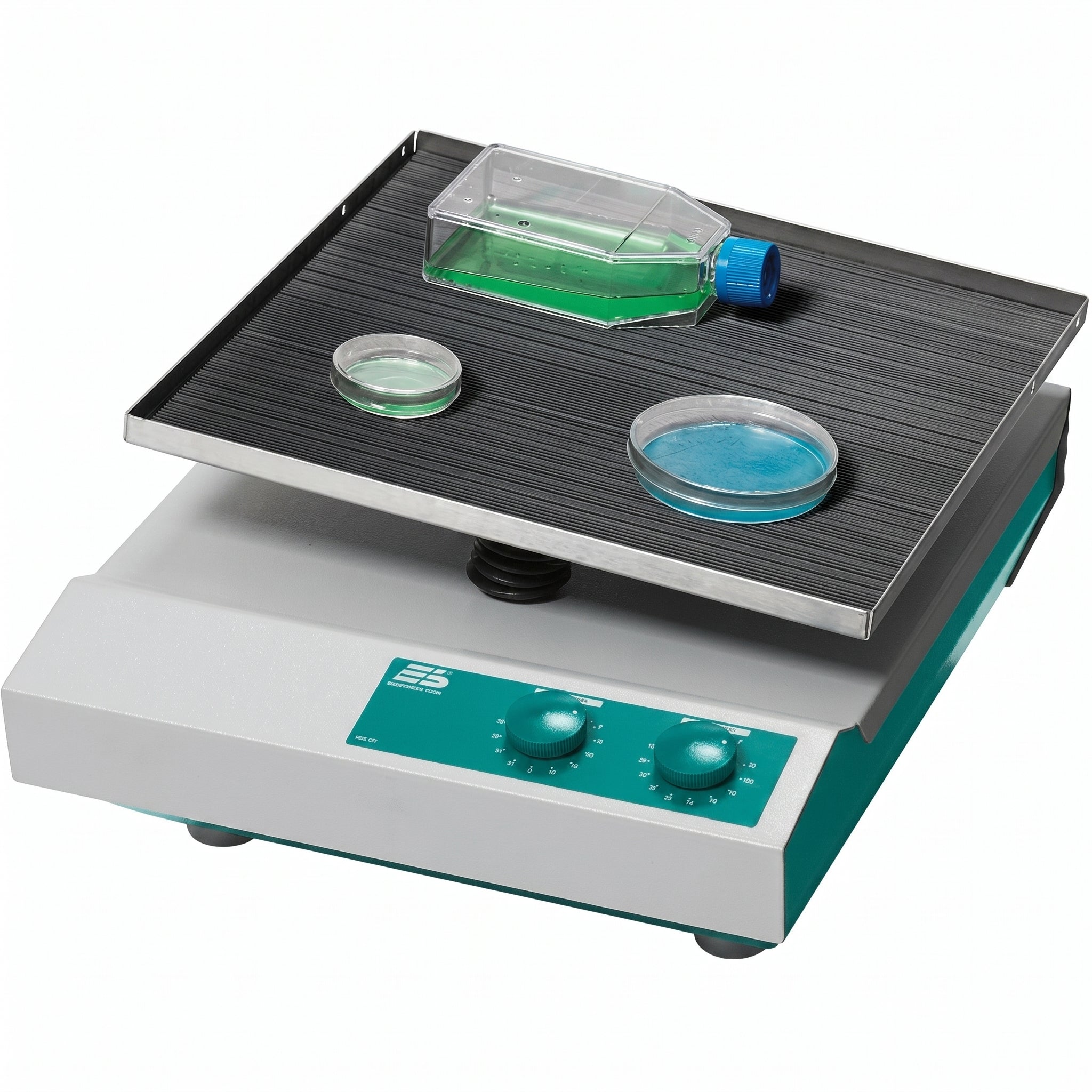

Tilt Shaker WS 10 (Edmund Buhler, Made in Germany)
Regular price
$ 2,772.95
Couldn't load pickup availability
Still have questions? Ask our experts!
Description
The Edmund Buhler Tilt Shaker WS 10 works with slow, linear tilting motion and a fix angle of tilt of 5° with a shaking speed of 1 - 23 rpm. The shaking platform of 340 x 340 mm can be loaded with a max weight of 10 kg.
Basic Equipment
Basic device includes basic tray and rubber mat
Accessories
Multi-story rack system WS / TL, p/n 0051 247
Details
| Motion: | linear tilting motion |
| Shaking platform: | 340 x 340 mm |
| Max. load: | 10 kg |
| Shaking speed: | 1 - 23 rpm, steplessly adjustable |
| Angle of tilt: | 5° fixed |
| Timer: | 0 - 120 min / continuous |
| Order No.: | 6114 000 |
Technical specifications
| Electrical supply: | 24 V DC, 50 / 60 Hz (115 V version on request) |
| Enclosure protection: | IP 21 |
| Heat emission: | approx. 8 W |
| Ambient temperature: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 355 x 450 x 205 mm |
| Weight: | 18.5 kg |
