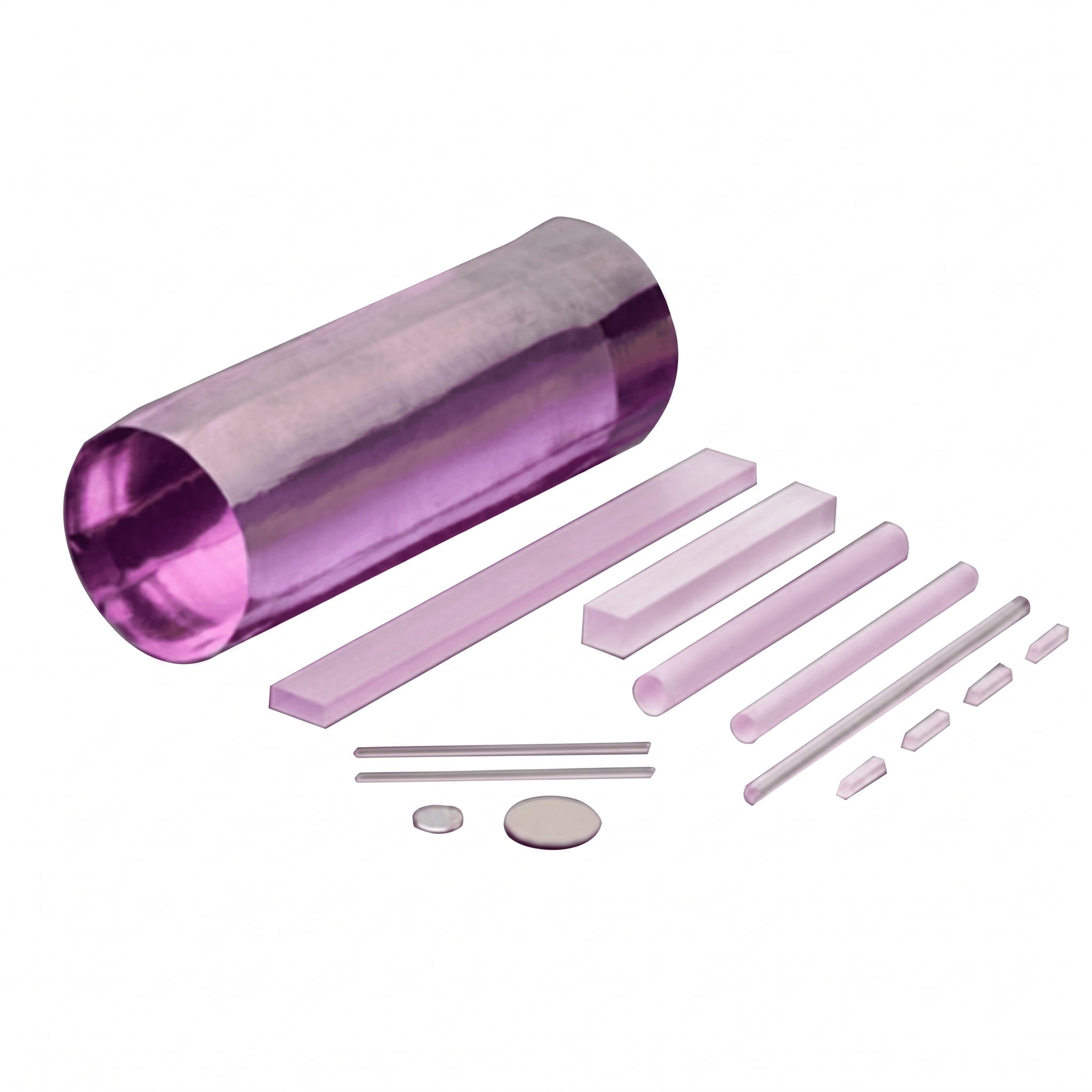

MSE PRO Nd YAG Nd Doped Yttrium Aluminium Garnet Laser Crystal
Couldn't load pickup availability
Customizable Product
Together with our experts we will create a product designed for your needs
Still have questions? Ask our experts!
Available Nd concentrations are 0.6 and 1.0 (atm%)
|
Main Specifications |
|
|
dimensional tolerance |
Dia: < +/-0.05 mm, length: < +/-0.5 mm |
|
flatness |
λ/8 @633nm |
|
Surface fineness |
10/5 |
|
flatness |
30 arc sec. |
|
verticality |
5 arc min |
|
orientation |
<111> crystalline direction,< +/-0.5° |
|
coating film |
AR coating, HR Coating |
|
reflect |
R<0.2%@1064, HR:R>99.5%@1064,R<5%@808nm, |
|
clear aperture |
>95% central area |
|
wavefront distortion |
<7mm diameter: <λ/8 per inch @ 633nm, 7mm diameter: <λ/10 per inch @ 633nm |
Publications related to YAG laser crystals:
| [1] | J. E. Geusic et al., Laser oscillations in Nd-doped yttrium aluminum, yttrium gallium and gadolinium garnets, Appl. Phys. Lett. 4 (10), 182 (1964) |
| [2] | D. Y. Shen et al., Highly efficient in-band pumped Er:YAG laser with 60W of output at 1645 nm, Opt. Lett. 31 (6), 754 (2006) |
| [3] | J. W. Kim et al., Fiber-laser-pumped Er:YAG lasers, IEEE Sel. Top. Quantum Electron. 15 (2), 361 (2009) |
| [4] | Li Chaoyang et al., 106.5W high beam quality diode-side-pumped Nd:YAG laser at 1123 nm, Opt. Express 18 (8), 7923 (2010) |
| [5] | X. Délen et al., 34 W continuous wave Nd:YAG single crystal fiber laser emitting at 946 nm, Appl. Phys. B 104 (1), 1 (2011) |
| [6] | H. C. Lee et al., Diode-pumped continuous-wave eye-safe Nd:YAG laser at 1415 nm, Opt. Lett. 37 (7), 1160 (2012) |
