MSE PRO Ultra-Thin Porous Titanium Sheet
Couldn't load pickup availability
Still have questions? Ask our experts!

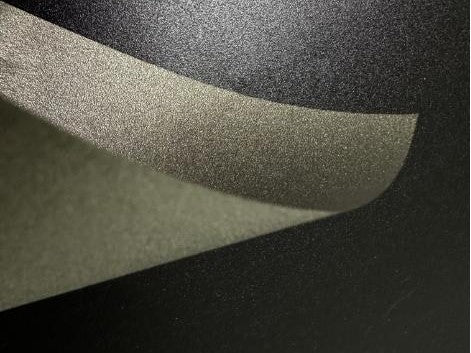

MSE PRO™ Ultra-Thin Porous Titanium Sheet
Description
Porous titanium GDL (Gas Diffusion Layer) is a commonly used material in Polymer Electrolyte Membrane (PEM) electrolyzers, employed for gas transport and electron
conduction during the electrolysis process.
Good gas transport performance: The porous titanium GDL has a high degree of gas permeability, effectively transporting hydrogen or oxygen to the catalytic layer of the electrolytic reaction, thereby improving reaction efficiency.
Excellent electronic conduction performance: The porous titanium GDL can provide a good electronic conduction path, ensuring rapid electron transfer during the electrolysis process, thereby increasing the rate and efficiency of the electrolytic reaction.
Specification
Thickness: 0.1mm, 0.25mm

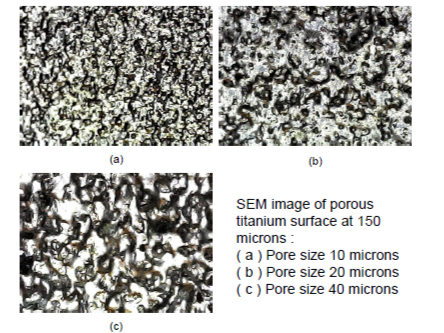

Accuracy / Pore Size: 10um-50um
Porosity: 50%-80%
Thermal conductivity: 6.7-7.5 W/(m·K)
Technique: Powder Sintering Process
Surface: Smooth, clean and metallic
Application: Pure water electrolysis hydrogen production GDL / PTL
The size of this product can be customized. Please contact us with any specific customization requirements.
