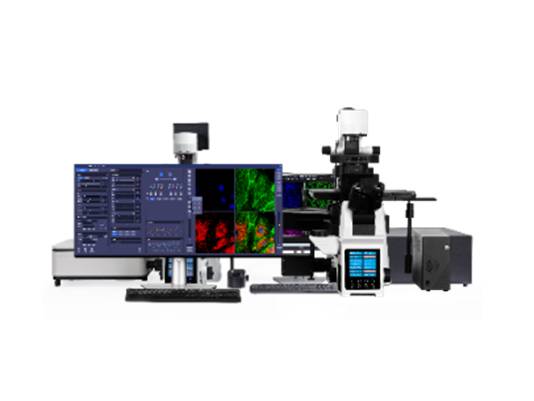

MSE PRO™ SMK-1036 Fluorescence Microscope

MSE PRO™ SMK-1036 Fluorescence microscope integrates observation and analysis. Automated control of imaging process, excellent for live cell imaging. MSE PRO™ SMK-1036 has powerful expansion functions, providing a more complete solution for life science research. Fluorescence microscope integrates observation and analysis. Automated control of imaging process, excellent for live cell imaging. MSE PRO™ SMK-1036 has powerful expansion functions, providing a more complete solution for life science research.

1.High optical resolution
X/Y axis resolution ratio: 240nm; Z-axis resolution ratio: 600nm.

2.High sensitivity backlit sCMOS camera
High sensitivity backlit sCMOS camera, with a frame rate of up to 100 frames per second and a quantum efficiency of up to 95% at 2048×2048 pixels, with a 6.5um pixel size.

3.Illumination
4-wavelength LED light source, long life, high brightness, low light toxicity, high uniformity lighting solutions.

4.Software
Hardware control: 12-axis fully electric control, camera control, supports third-party light source, electric stage and other peripheral control.

Image acquisition: x, y, z, λ, t, n, l, seven-dimensional acquisition, multi-dimensional, full process automated control.

Image processing: 3D reconstruction and display, co-localization processing, co-localization linkage, image brightness, contrast, threshold processing, image flipping, mirroring, background removal, dynamic image generation, stack processing and ROI processing.

Image analysis: distance, perimeter, area, roundness, maximum and minimum gray scale, and other parameter analysis, co-localization analysis, cell counting, particle counting, protein tracking, subpopulation analysis and cell cycle analysis.

• 1.Five-dimensional sequence acquisition of x, y, z, λ, t, realizes automatic acquisition control.

• 2.Graphical interaction: switch optical port, filter block, objectives with one-click and changing observation mode.

• 3.Electric focusing, electric stage, electric fluorescence filter block, electric condenser, electric light source control, electric light path switching, realizing fully electric 12-axis control.

• 4.Real-time optical density measurement, real-time global histogram display.

• 5.Graphical focus control, focus position memory, automatic focus control.

• 6.Customize 1-8 channel acquisition, real-time pseudo-color display, arbitrary multi-channel overlay, and real-time display of multi-channel overlay map.
• 1.Real-time display of comparison before and after image processing
• 2.Record image information in detail, including detailed parameters such as acquisition channel, objectives, exposure time, etc.
• 3.Real-time image preview
• 4.3D image reconstruction

Application

* Infinity Color Correction Optical System
* 20-45 degree tilting binocular tube, interpupillary distance: 50-76mm
* High eye point wide field plan eyepiece PL10X/22mm
* Long Working Distance Plan Semi- Apochromatic Objectives 4X, Infinity Plan Semi-Apochromatic Objectives4X, Infinity Plan Super Apochromatic Objectives 10X, 60X(oil)    * Low position coarse and fine coaxial electric focusing mechanism
* Motorized sextuple nosepiece (with expansion slot)
* Electric bright field sextuple nosepiece with DIC slot and upper optical port CTV adapter
* 6-hole electric control condenser NA0.55, WD26
* Koehler transmission illuminator, 10W cool color LED light illumination
* Electric septuple condenser, NA 0.55, WD=27mm

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC
