RWD Digital Microscope

Description

DOM-1001 is a 16 Million Pixels high-end integrated digital microscope, and enables real-time record, collect, and share high-definition 4K images and videos(1080P). Multiple people can view samples simultaneously, supporting the whole process of taking pictures and videos. it is widely applied in Life science: dental, animal surgery, tumor, morphological observation, embryologic histology, education, Industry & Manufacturing: electronics& semiconductor, metals, medical, new energy, etc.

Features

16MP CMOS camera: The camera comes with fast automatic one-key exposure, supports exposure compensation, and can quickly shoot samples that contain areas of sharp bright and dark contrast.
Auto/manual one-button white balance and RGB adjustable enables real colors.
FHD resolution real-time images: The 60fps CMOS camera provides recording 4K pictures and 1080p videos.
The 7:1 zoom ratio (with switchable locking aperture) able to realize rapid magnification.
Ergonomic design : Foot pedal to adjust focal length, 180 mm working distance.

Specifications

Parameter item	Technical Item Description
Resolution	1920×1080pixel
Sensor grade	Panasonic 1600W 1/2.33″CMOS
Pixel size	1.335μmX1.335μm
Sensor size	6.18mmx4.65mm
magnification	18-100x (27-inch monitor)
Zoom Ratio	07:01
Working distance	180mm
The depth of field	6.7 mm (Highest magnification), 0.41 mm (Lowest magnification）

Model

Type name

Number

Notes

DOM-1001

Digital Microscope

Standard configuration includes

11.6-inch display

Videos

Mouse embryo observation

MCAO experiment video

Optical Microscopes

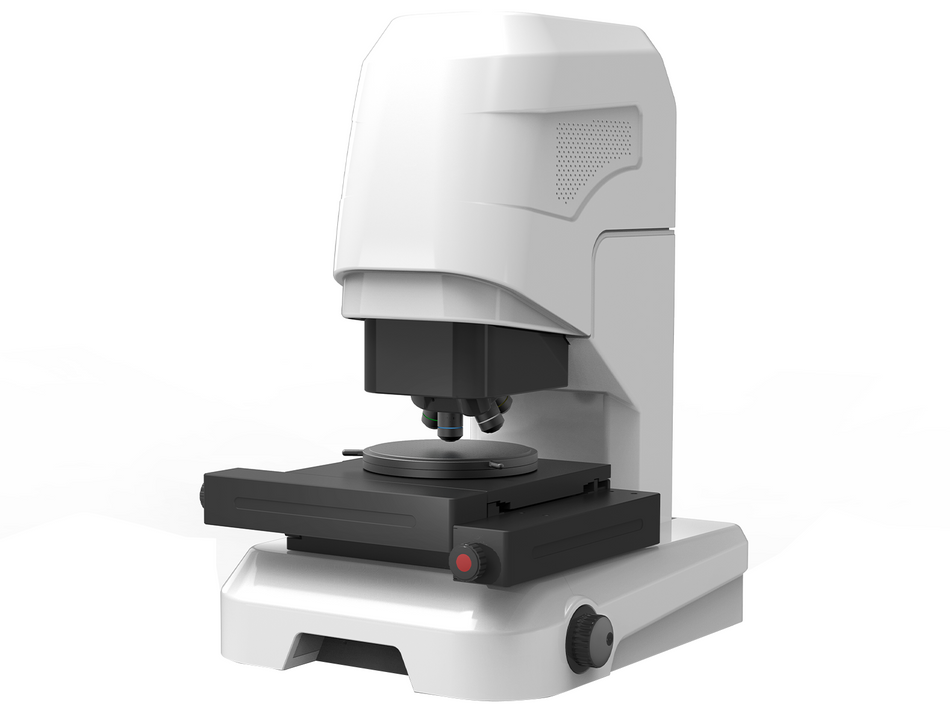

MSE PRO Confocal Microscope with 200x200 mm Table Size, 10 kg Load capacity

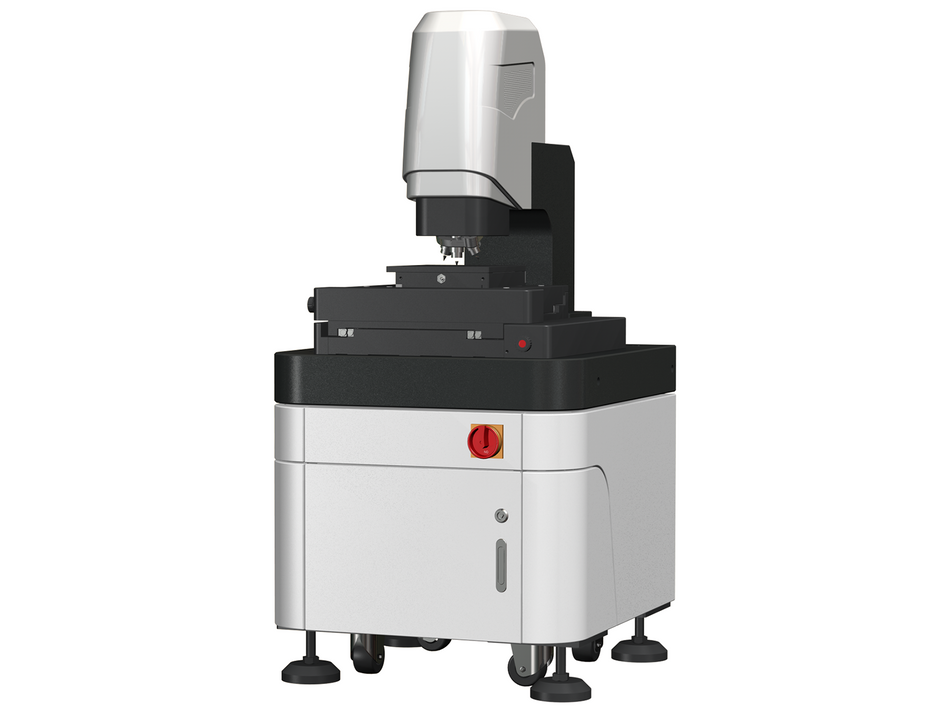

MSE PRO Confocal Microscope with 300x300 mm Table Size, 10 kg Load Capacity

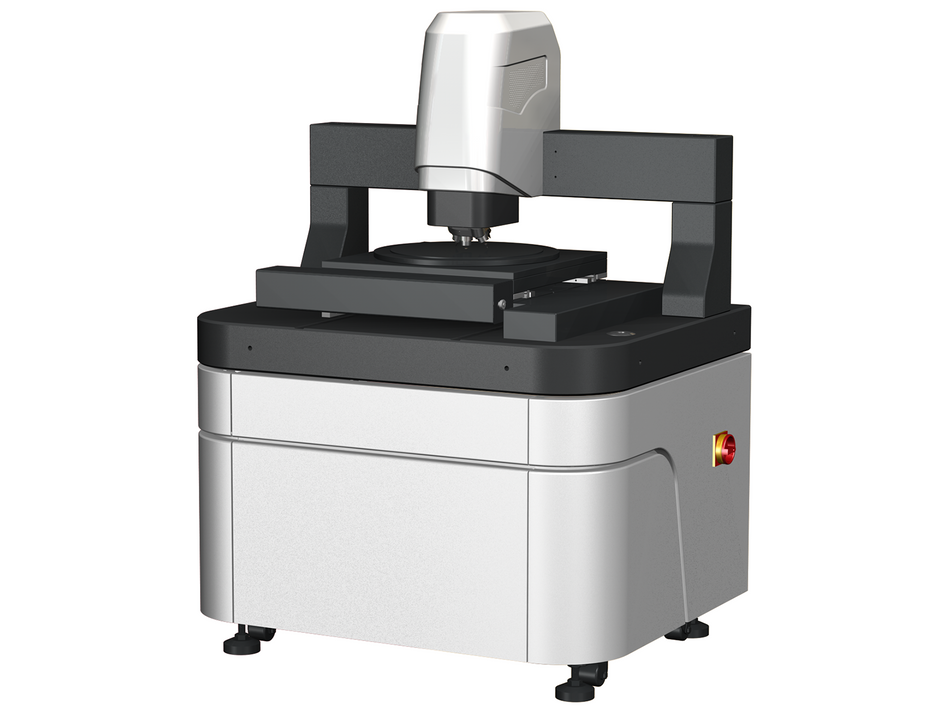

MSE PRO Confocal Microscope with 450x450mm Table Size, 10 kg Load capacity
