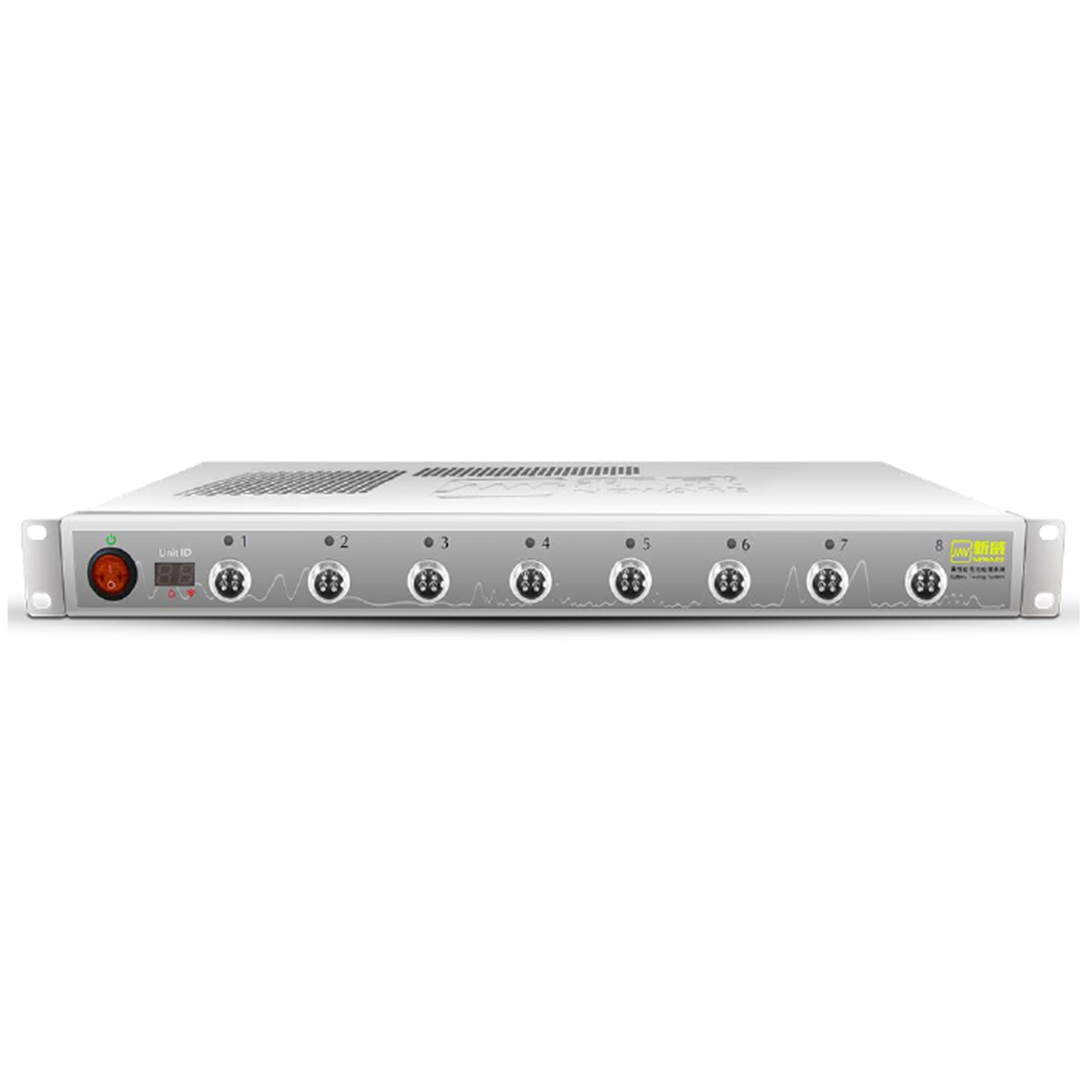

Neware CT-4008Q-5V100mA-HWX-W, 5V100mA Battery Cell Tester,  8 channels

Introduction

The Neware CT-4008Q-5V100mA-HWX-W, 5V100mA Battery Cell Tester, 8 Channels is a compact battery testing system designed for precise charge and discharge analysis of low-current cells and devices. With 8 independent channels, 5V / 100mA per channel, and support for multiple charge/discharge modes, it is suitable for laboratory battery research, DCIR evaluation, cycle testing, and routine cell performance analysis.

Built with independent channel control, Kelvin connection data acquisition, and high measurement accuracy, this tester supports detailed battery testing workflows while providing flexible data export and TCP/IP communication for convenient lab integration.

Key Features

  • 8 independent testing channels
  • Up to 5V / 100mA per channel
  • Voltage accuracy of ±0.02% FS
  • Current accuracy of ±0.02% FS
  • Supports CC, CV, CCCV, CP, and CR modes
  • Pulse testing supported with minimum pulse width of 500 ms
  • DCIR values available in BTSDA
  • Kelvin connection for accurate data acquisition
  • Minimum data record interval of 10 ms
  • TCP/IP communication with Ethernet port
  • Data export in Excel, TXT, CSV, PDF, and Plot/Graph formats

Specifications

Model CT-4008Q-5V100mA
Input AC AC 110V, 60Hz
Input Power 7 W
Resolution AD: 16 bit; DA: 16 bit
Input Impedance ≥1 GΩ
CV Output Range 10 mV to 5 V
Minimum Discharge Voltage -5 V
Voltage Accuracy ±0.02% of FS
Voltage Stability ±0.02% of FS
Current Output Range / Channel Range 1: 0.1 mA; Range 2: 1 mA; Range 3: 10 mA; Range 4: 100 mA
Current Accuracy ±0.02% of FS
CV Cut-off Current Range 1: 0.1 μA; Range 2: 1 μA; Range 3: 1 μA; Range 4: 0.1 mA
Current Stability ±0.02% of FS
Output Power / Channel 0.5 W
Power Stability ±0.1% of FS
Current Response Time Max rising time: 1 ms
Working Step Time ≤ 365 × 24 h / step
Time Format 00:00:00.000 (h, m, s, ms)
Min Data Record Interval 10 ms
Min Voltage Change 5 mV
Min Current Change 0.1 μA; 1 μA; 10 μA; 0.1 mA
Frequency 100 Hz
Charge Modes CC, CV, CCCV, CP
Charge Cut-off Conditions Voltage, Current, Time, Capacity, -ΔV
Discharge Modes CC, CP, CR, CV, CCCV
Discharge Cut-off Conditions Voltage, Current, Time, Capacity, Energy
Pulse Charge CC, CP
Pulse Discharge CC, CP
Min Pulse Width 500 ms
Pulse Counts Up to 32
Charge/Discharge Switch Supported
Pulse Cut-off Conditions Voltage, Time
DCIR Calculated DCIR values available in BTSDA
Max Cycles 65535
Max Steps 254
Cycle Nest 3
Protection Power-off data protection, off-line operation mode, user-defined protection conditions
Channel Control Mode Independent control
Data Acquisition Method Kelvin connection
Noise <85 dB
Database MySQL
Communication TCP/IP
Operating System Windows 7 / 8 / 10, 64 bit
Data Export Excel, TXT, CSV, PDF, Plot/Graph
Disk Drive 500 GB
Communication Port Ethernet port
Leak Current 0.005 mA
Channels per Unit 8
Operation Temperature 0°C to 40°C
Storage Temperature -10°C to 50°C
Operation Humidity ≤70% RH, no moisture condensation
Storage Humidity ≤80% RH, no moisture condensation
Clamp Types Alligator, Polymer, Coin
Dimensions (W × D × H) 1U (164), 480 × 330 × 44 mm



Applications

This battery cell tester is suitable for:

  • Low-current battery charge/discharge testing
  • Cycle life evaluation
  • Pulse testing and DCIR analysis
  • Laboratory battery research and routine performance testing

Important Notes

  • This battery tester does not include a middle machine. If required, the middle machine must be purchased separately. Please order it here
  • The default fixture supplied with this unit is the polymer clamp, and the default channel cable length is 0.2 meters. The polymer clamp is shown in the image below.



  • If you require a different type of clamp, please contact MSE Supplies directly.

MSE Supplies is an authorized distributor of Neware in the USA. The product figure is for reference only. The actual product may look different based on the product configuration.
