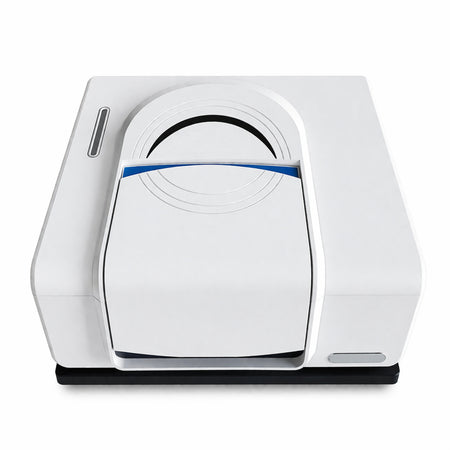

MSE PRO 530PRO Fourier Transform Infrared (FTIR) Spectrometer
Introduction
The MSE PRO 530PRO Fourier Transform Infrared (FTIR) Spectrometer is a high-performance Fourier Transform Infrared spectrometer designed for advanced laboratory analysis, routine quality control, and scientific research. Built on more than thirty years of FTIR development and manufacturing experience, the 530Pro version combines intelligent operation, strong stability, and low maintenance requirements in one compact platform. It is well suited for applications such as battery materials analysis, materials science, pharmaceutical analysis, polymer characterization, food and beverage testing, and environmental studies.
The system features a cube-corner Michelson interferometer, gold-coated reflecting mirrors, a modular cast-aluminum structure, and intelligent moisture-proof design to support long-term stability and reliable spectral performance. With Ethernet and WiFi communication, real-time instrument status monitoring, and a large sample chamber for accessory expansion, the DW-FTIR-530Pro is a flexible solution for modern FTIR workflows.
Key Features
- High-sensitivity FT-IR spectrometer for research and routine analysis
- Cube-corner Michelson interferometer for long-term optical stability
- DLATGS detector for improved performance
- Signal-to-noise ratio better than 40,000:1
- Wavenumber range of 7800–350 cm⁻¹
- Resolution of 0.85 cm⁻¹
- Wavenumber accuracy of ±0.01 cm⁻¹
- High-intensity, long-lifetime, air-cooled IR source
- Real-time instrument status, temperature, and humidity monitoring
- Ethernet and WiFi dual communication modes
- MainFTOS Suite software workstation compatible with Windows
- FDA 21 CFR Part 11 compliance software available
- Large sample chamber for ATR, liquid cell, reflectance, microscope, and other accessories
- Intelligent multi-sealed moisture-proof design for reliable operation
- CE certified, with IQ/OQ/PQ available as optional
- Compact benchtop design with broad accessory expandability
Specifications
| Parameter | Specification |
|---|---|
| SKU | MA0068422 |
| Interferometer | Cube-corner Michelson interferometer |
| Beam Splitter | Multilayer Ge coated KBr |
| Standard Detector | DLATGS |
| Optional Detector | MCT |
| IR Source | High intensity, long lifetime, air-cooled IR source |
| Wavenumber Range | 7800–350 cm⁻¹ |
| Resolution | 0.85 cm⁻¹ |
| Wavenumber Accuracy | ±0.01 cm⁻¹ |
| Signal-to-Noise Ratio | Better than 40,000:1 |
| S/N Test Condition | RMS value, at 2100–2200 cm⁻¹, resolution: 4 cm⁻¹, 1 minute data collection |
| Scanning Speed | Microprocessor control, different scanning speed selectable |
| Standard Software | MainFTOS Suite software workstation, compatible with all Windows OS versions |
| Optional Software | FDA 21 CFR Part 11 compliance software |
| Interface | Ethernet & WiFi wireless |
| Data Output | Standard data format, report generation and output |
| Status Diagnosis | Power-on self-check, real-time temperature and humidity monitoring and reminders |
| Certification | CE; IQ/OQ/PQ optional |
| Temperature | 10°C–30°C |
| Humidity | Less than 60% |
| Power Supply | AC220V/±22V, 50Hz/±1Hz; AC110V optional |
| Dimensions | 490 × 420 × 240 mm |
| Weight | 23.2 kg |
| Standard Accessories | Transmission sample holder |
