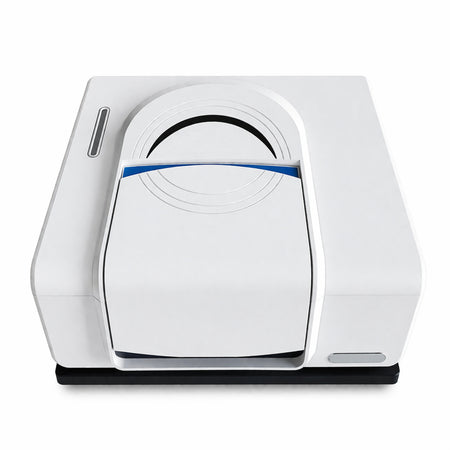

MSE PRO 530A Fourier Transform Infrared (FTIR) Spectrometer
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO 530A Fourier Transform Infrared (FTIR) Spectrometer
Introduction
The MSE PRO 530A FT-IR Spectrometer is a high-sensitivity Fourier Transform Infrared spectrometer designed for routine laboratory analysis, quality control, and scientific research. Built with a cube-corner Michelson interferometer, multilayer Ge-coated KBr beam splitter, and LiTaO3 detector, it delivers stable performance, reliable sensitivity, and convenient operation for a wide range of FTIR applications. The system is suitable for materials science, polymers, pharmaceuticals, food and beverage analysis, environmental studies, and battery material characterization.
The 530A also features intelligent instrument status monitoring, Ethernet and WiFi communication, modular structural design, and a large sample chamber that can accommodate a variety of accessories. These capabilities make it a flexible and practical choice for labs seeking dependable FTIR analysis with room for future expansion.
Key Features
- High-sensitivity optical system with cube-corner Michelson interferometer
- LiTaO3 detector for reliable routine FTIR analysis
- Wavenumber range of 7800-350 cm⁻¹
- Resolution of 0.85 cm⁻¹
- Wavenumber accuracy of ±0.01 cm⁻¹
- Signal-to-noise ratio better than 20,000:1
- High-intensity, long-lifetime, air-cooled IR source
- Real-time instrument self-check and status monitoring
- Temperature and humidity monitoring with reminders
- Ethernet and WiFi dual communication modes
- MainFTOS Suite software workstation compatible with Windows
- FDA 21 CFR Part 11 compliance software available as optional software
- Large sample chamber for flexible accessory integration
- CE certified, with IQ/OQ/PQ available as optional
- Suitable for transmission, ATR, reflectance, and other accessory-based testing setups
Specifications
| Parameter | Specification |
|---|---|
| SKU | MA0068421 |
| Interferometer | Cube-corner Michelson interferometer |
| Beam Splitter | Multilayer Ge coated KBr |
| Standard Detector | LiTaO3 |
| IR Source | High intensity, long lifetime, air-cooled IR source |
| Wavenumber Range | 7800-350 cm⁻¹ |
| Resolution | 0.85 cm⁻¹ |
| Wavenumber Accuracy | ±0.01 cm⁻¹ |
| Signal-to-Noise Ratio | Better than 20,000:1 |
| S/N Test Condition | RMS value, at 2100-2200 cm⁻¹, resolution: 4 cm⁻¹, 1 minute data collection |
| Scanning Speed | Microprocessor control, different scanning speed selectable |
| Standard Software | MainFTOS Suite software workstation, compatible with all version Windows OS |
| Optional Software | FDA 21 CFR Part 11 compliance software |
| Interface | Ethernet & WiFi wireless |
| Data Output | Standard data format, report generation and output |
| Status Diagnosis | Power on self-check, real-time temperature and humidity monitoring and reminders |
| Certification | CE; IQ/OQ/PQ optional |
| Temperature | 10°C-30°C |
| Humidity | Less than 60% |
| Power Supply | 110V / 60Hz |
| Dimensions | 490 × 420 × 240 mm |
| Weight | 23.2 kg |
| Standard Accessories | Transmission sample holder |
