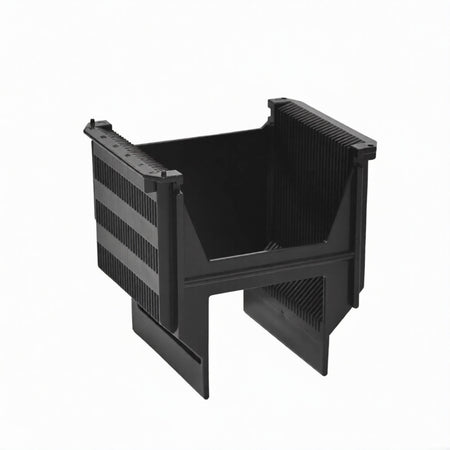

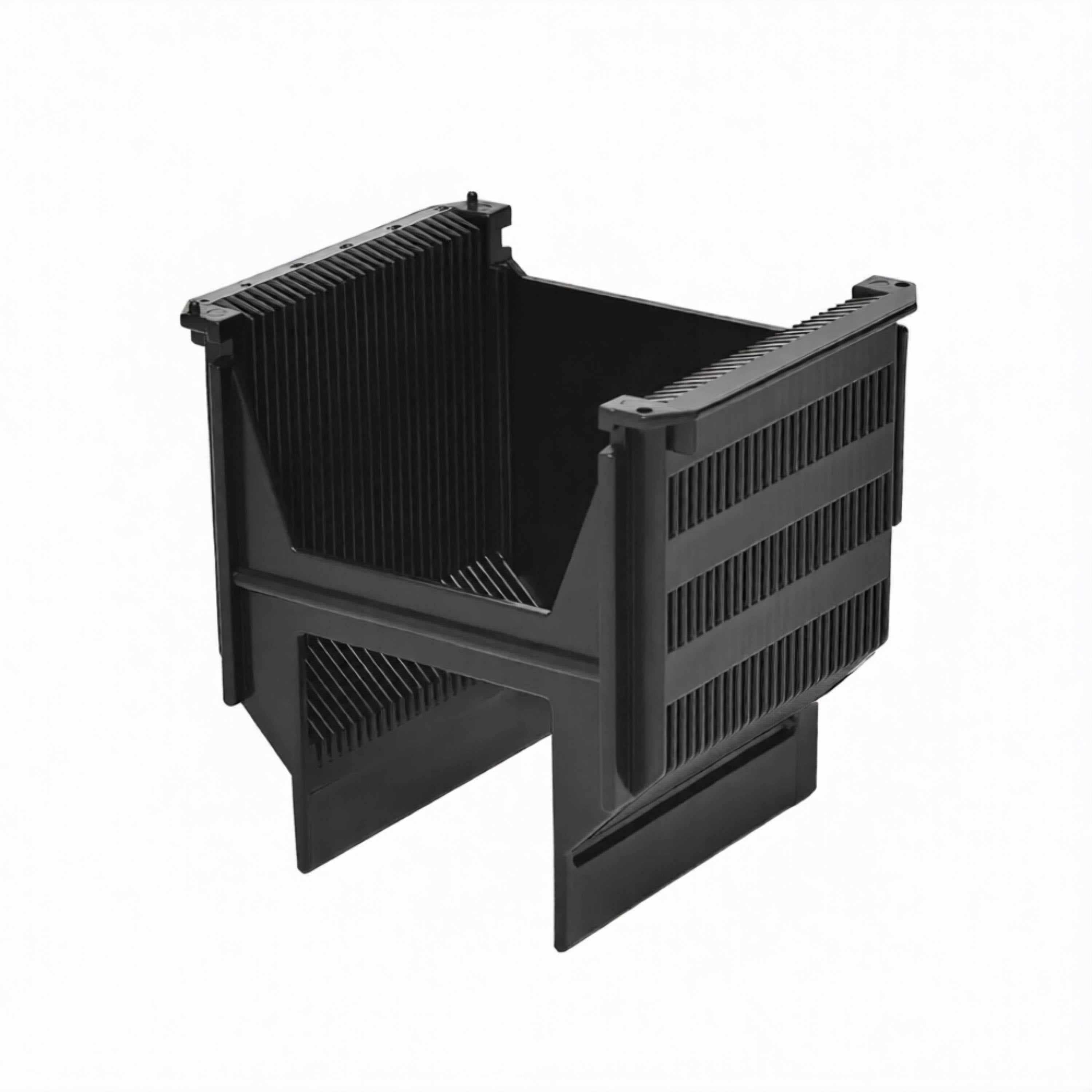

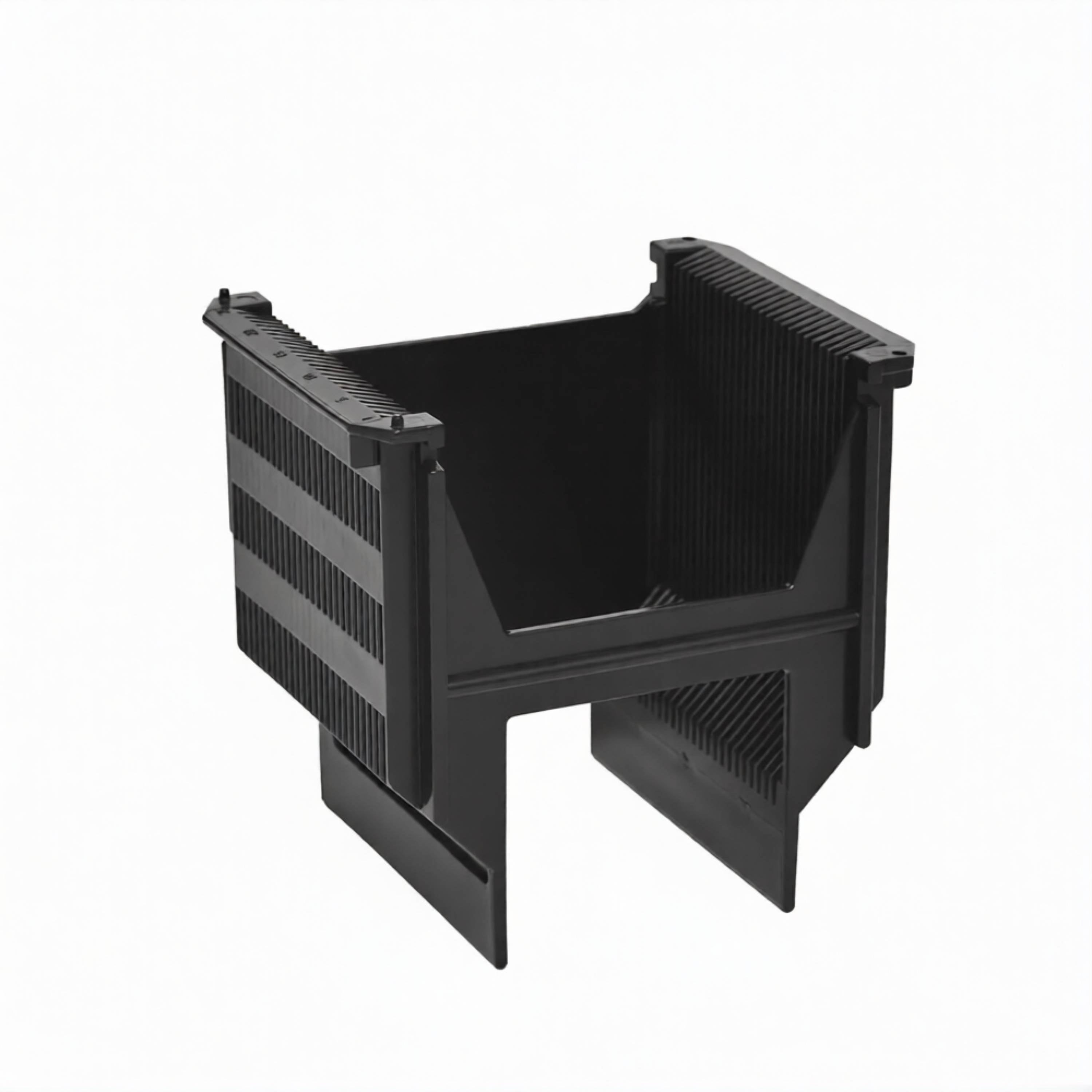

Hiner-pack® 6-inch Wafer Cassette - Conductive PP
Description:
Maintains wafer stability through transport, inspection, and fabrication stages
Engineered for semiconductor wafer handling, wafer cassettes—sometimes referred to as wafer boats—are used for in-fab wafer transfer and temporary storage. Designed to accommodate wafers of consistent size, they are molded from high-grade polypropylene for strength and thermal resistance. Available in natural or conductive material, these cassettes integrate seamlessly with automated wafer processing equipment, ensuring precise alignment, contamination control, and operational reliability. Commonly used in general wafer handling, they can be paired with wafer storage boxes to maximize wafer protection during movement.
- Lightweight PP construction ideal for in-fab transfer
- Compatible with automation and cassette-standard tools
- Available in multiple colors to facilitate process identification
- Available in multiple materials to cope with different requirements for chemical resistance
- Moderate temperature resistance material
Application
- Handling and storage of wafers mounted on flex, film, or dicing frames
- Safe vertical orientation to facilitate easy loading and unloading
- Minimizing mechanical stress during the transportation of fragile wafers
- Protection from environmental contamination in cleanroom logistics
Specifications
| BASIC INFORMATION | ||
| Part Number | Collocation Reference | Wafer Size |
| MCS-6/25-BL | -- | 6"/150 mm |
| Material | Maximum Capacity | Color |
| Conductive PP | 25 | Black |
| Delivery Time | Usually 2-3 weeks, depending on order quantity | |
* For more sizes or customization needs, please contact our team. We offer one-stop packaging solutions for your products.
| TECHNICAL DATA | ||
| PROPERTY | TEST METHOD | RATED VALUES |
| Density | ISO 1183-1 (23°C) | 1.0 g/cm³ |
| Melt Index (350°C/5kg) | ASTM D–1238 | 15.0 g/10min |
| Shrinkage Percentage | ISO 2577 | 1.2~1.6 % |
| Tensile Strength | ISO 527-2 (50mm/min) | 25 MPa |
| Tensile Strain at Break | ISO 527-2 (50mm/min) | 10% |
| Flexural Strength (Fracture) | ISO 178 (2mm/min) | 27 MPa |
| Flexural Modulus | ISO 178 (2mm/min) | 1150 MPa |
| LZOD Notch Impact Strength (3.2mm) | ISO 180 (23°C) | 30 kJ/m² |
| Surface Resistivity | ASTM D–257 | 1.0×10⁴~1.0×10⁹ Ω/sq |
| Flame Retardant Rating | UL 94 | HB Class |
* The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
