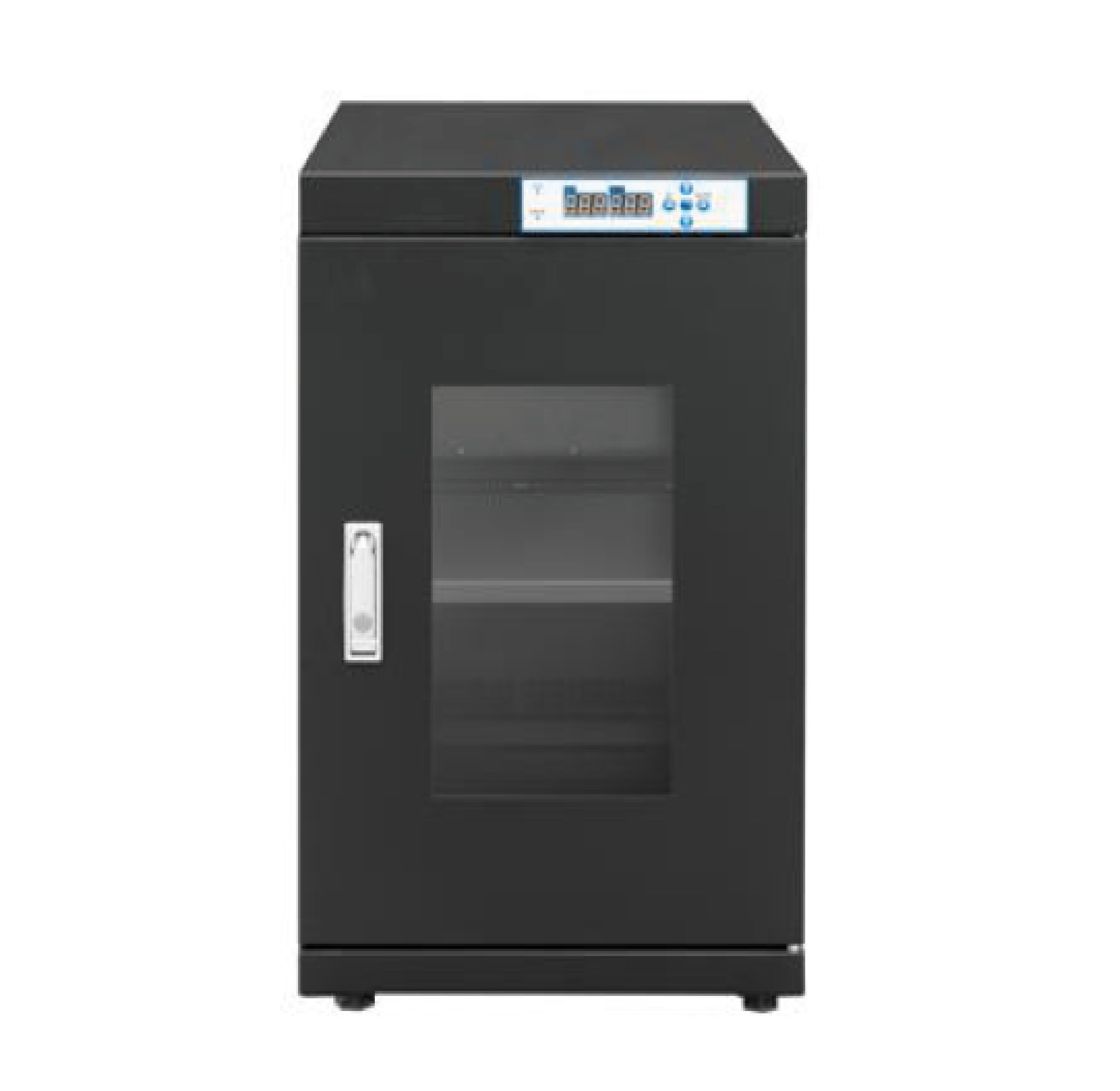

The MSE PRO <5%RH 98L ESD Safe Dry Cabinet is a compact benchtop solution designed to protect moisture-sensitive electronic components from humidity-related damage. It provides automatic humidity control within <5% RH, ensuring a stable low-humidity storage environment for ICs, PCBs, semiconductors, and precision electronic parts.
Equipped with a precise LED digital controller and ESD-safe construction, the cabinet offers reliable environmental monitoring and safe handling of sensitive materials. Its modular design allows easy maintenance and upgrades, while RoHS-compliant construction supports long-term durability with an expected service life of 15–20 years.
Key Features
-
Automatic humidity control <5% RH
-
Compact 98L benchtop design
-
ESD-safe construction
-

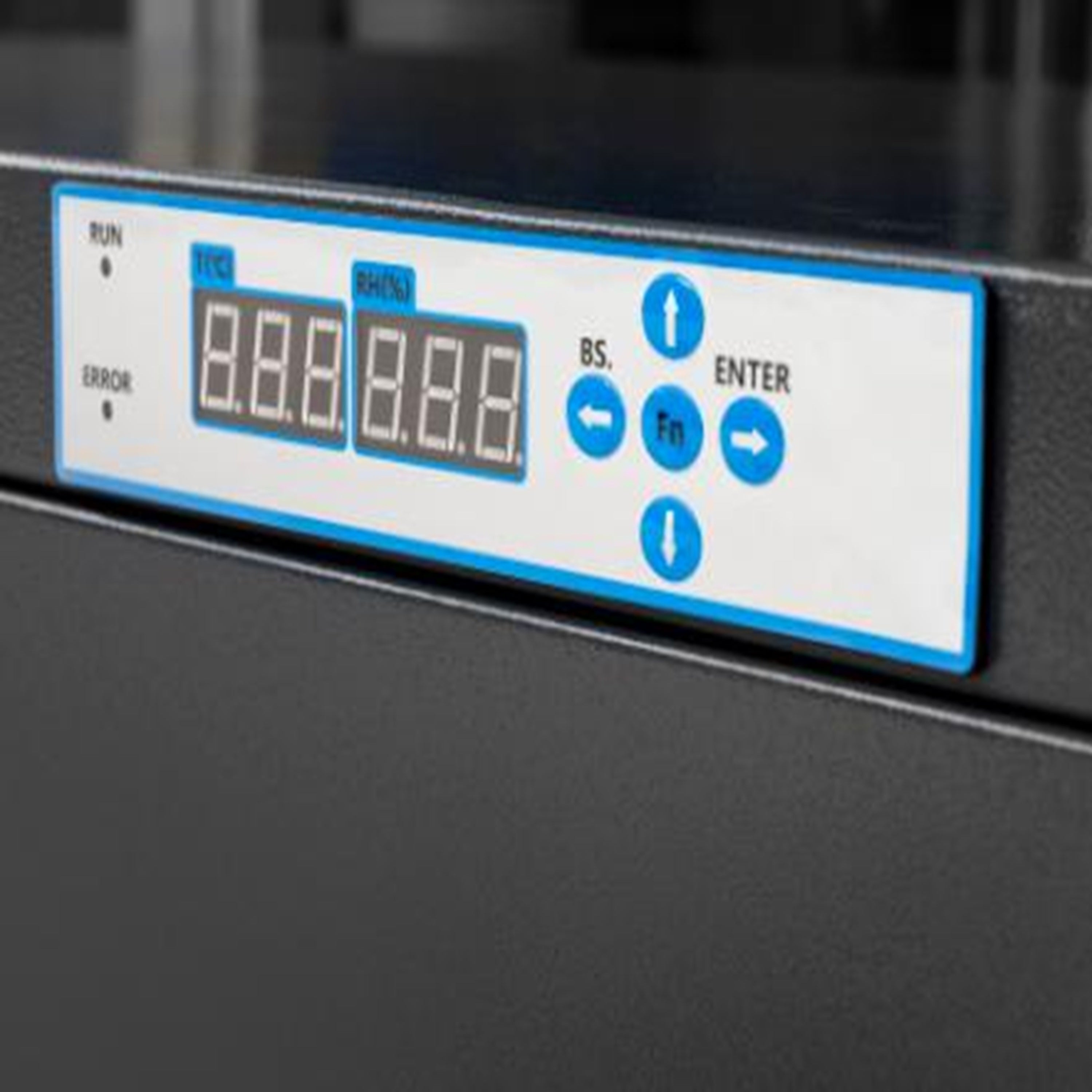

Precise LED digital controller
-
Modular, serviceable structure
-
Calibration reminder function
-
Plug-and-play operation
Ideal for laboratories, electronics manufacturing, and controlled storage of moisture-sensitive components.
Specification
| SKU | TDU98F |
| Interior Dimension | 446(W) × 372(D) × 598(H) mm |
| Exterior Dimension | 448(W) × 400(D) × 688(H) mm |
| Packing Dimension | 540(W) × 480(D) × 850(H) mm |

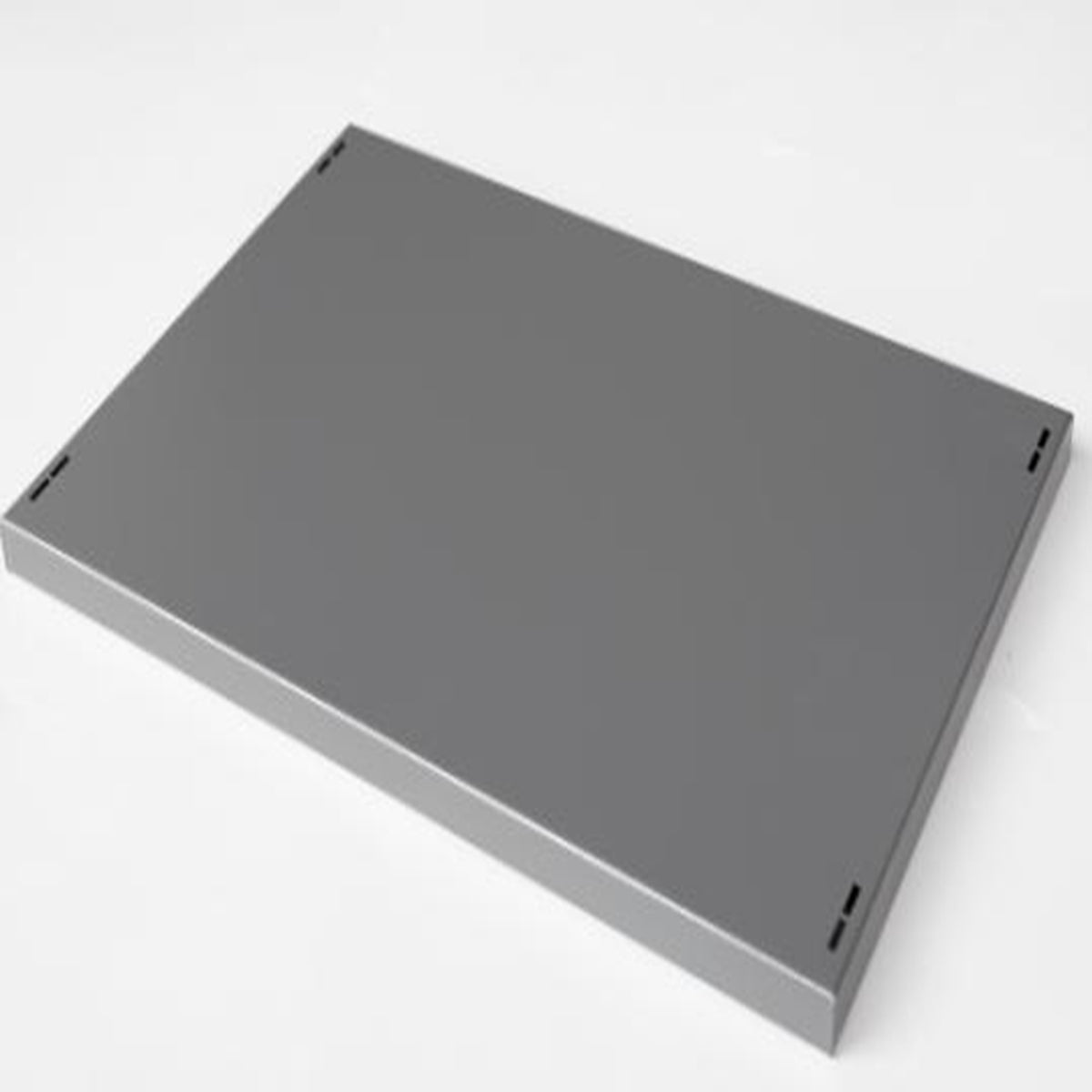

| Shelf Dimension | 1 shelf, 50 kg load capacity |
| Humidity Range | <5% RH automatic |
| Volume | 98 L |
| Net/Gross Weight | 35 kg (Gross) |
| Recovery Time | Approx. 30 min to reach <5% RH after 30 sec door opening (25°C, 60% RH, no load) |
| Precision | ±3% RH, ±0.5°C; Resolution: 0.1% RH, 0.1°C |
| Shelf | 1 pc |
| Voltage | 110V / 220V / 230V, 50Hz / 60Hz |
Recommended Storage Humidity Guide
|
Relative Humidity
|
Suggested stored items
|
|
55%~45%RH
|
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
|
|
45%~35%RH
|
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
|
|
35%~20%RH
|
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
|
|
10%~20%RH
|
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
|
|
10%-1%RH
|
IC, BGA, copper, silver, and materials very sensitive to humidity, etc
|
MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.
