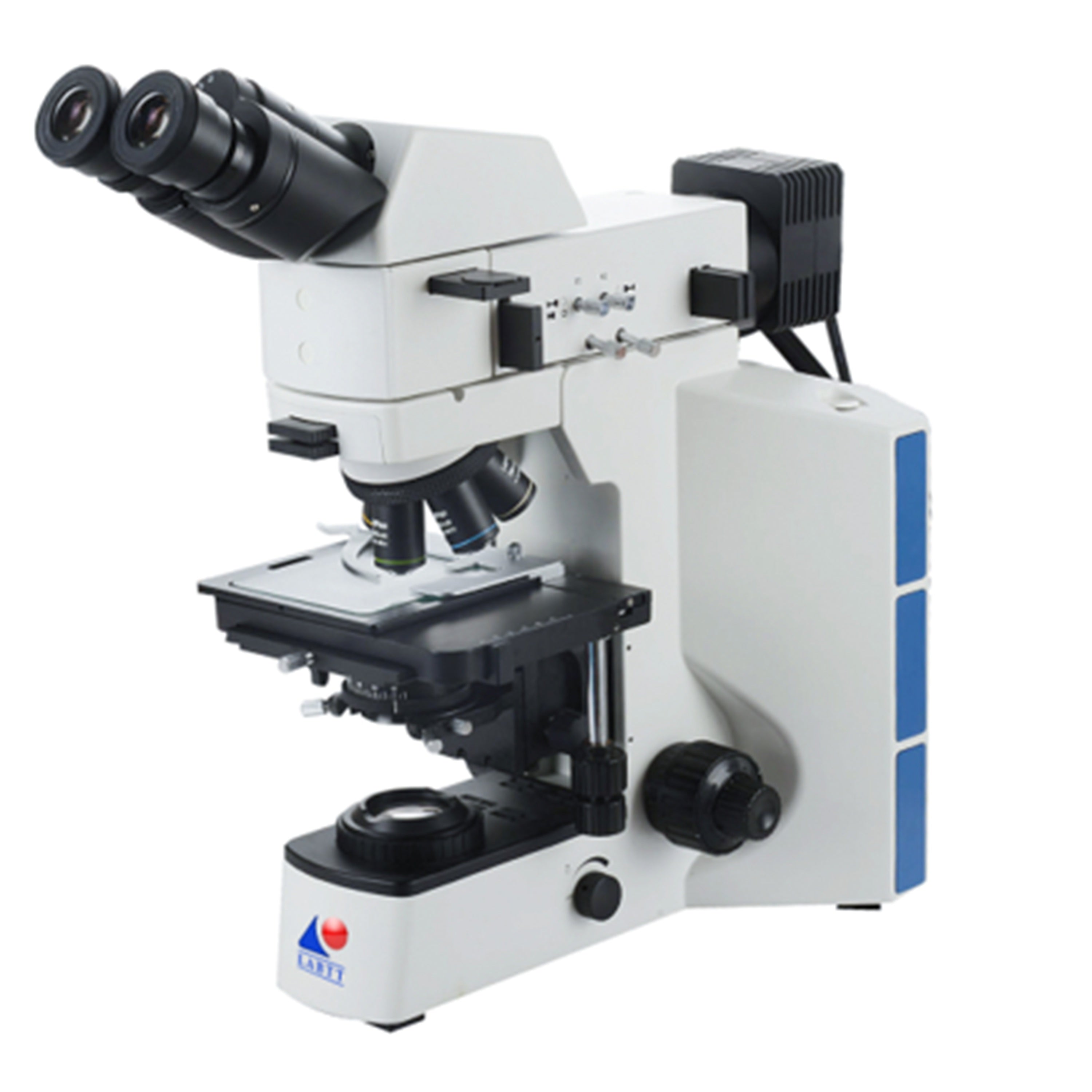

MSE PRO Upright Metallurgical Microscope with Reflected Illumination System
Introduction
The MSE PRO Upright Metallurgical Microscope with Reflected Illumination System is designed for high-performance materials analysis and industrial inspection. Featuring an advanced infinity optical system and long working distance objectives, it delivers excellent image clarity, accurate color reproduction, and enhanced resolution. With versatile observation modes including brightfield, oblique illumination, and simple polarized light, this microscope provides a flexible and reliable solution for metallographic analysis and quality control applications.
Key Features
- Advanced infinity-corrected optical system with long working distance objectives for high-resolution imaging
- Reflected Köhler illumination with 5W warm LED for uniform brightness and reduced eye fatigue
- Multiple observation modes: brightfield, oblique illumination, and simple polarized light
- Ergonomic 30° inclined viewing head with adjustable interpupillary distance for comfortable operation
- Large mechanical stage with precise X–Y movement for stable sample positioning
- Adjustable aperture and field diaphragms to minimize stray light and enhance image contrast
Specification
| Category | Specification |
| Optical System | Infinity-corrected chromatic aberration optical system |
| Viewing Head | 30° inclined binocular/trinocular head, interpupillary distance 54–75 mm, diopter adjustment ±5 |
| Eyepiece | PL10X/22 mm wide-field high eyepoint eyepiece |
| Objectives | Long working distance metallurgical objectives: 5X, 10X, 20X, 50X |
| Nosepiece | 5-position internal locating nosepiece |
| Focusing System | Coaxial coarse & fine focusing, coarse stroke 28 mm, fine precision 0.002 mm |
| Stage | Double-layer mechanical stage, size 175 × 145 mm, travel range 76 × 42 mm |
| Maximum Sample Height | Up to 78 mm |
| Illumination (Reflected) | 5W LED, warm light (3000–3300K), Köhler illumination with field & aperture diaphragm |
| Illumination (Transmitted) | 5W LED transmitted light system |
| Condenser | Swing-out achromatic condenser, N.A. 0.9 with adjustable aperture |
| Observation Modes | Brightfield, oblique illumination, simple polarized light |
| Polarization Components | Polarizer and analyzer with rotating analyzer |
| Filters | Yellow, IF550, LBD, neutral density filters |
| Camera Interface | C-mount adapters (1X, 0.67X, 0.5X) available |
| Power Supply | 110V / 60Hz |
| Additional Features | Adjustable field diaphragm, aperture diaphragm, anti-collision safety stop |
