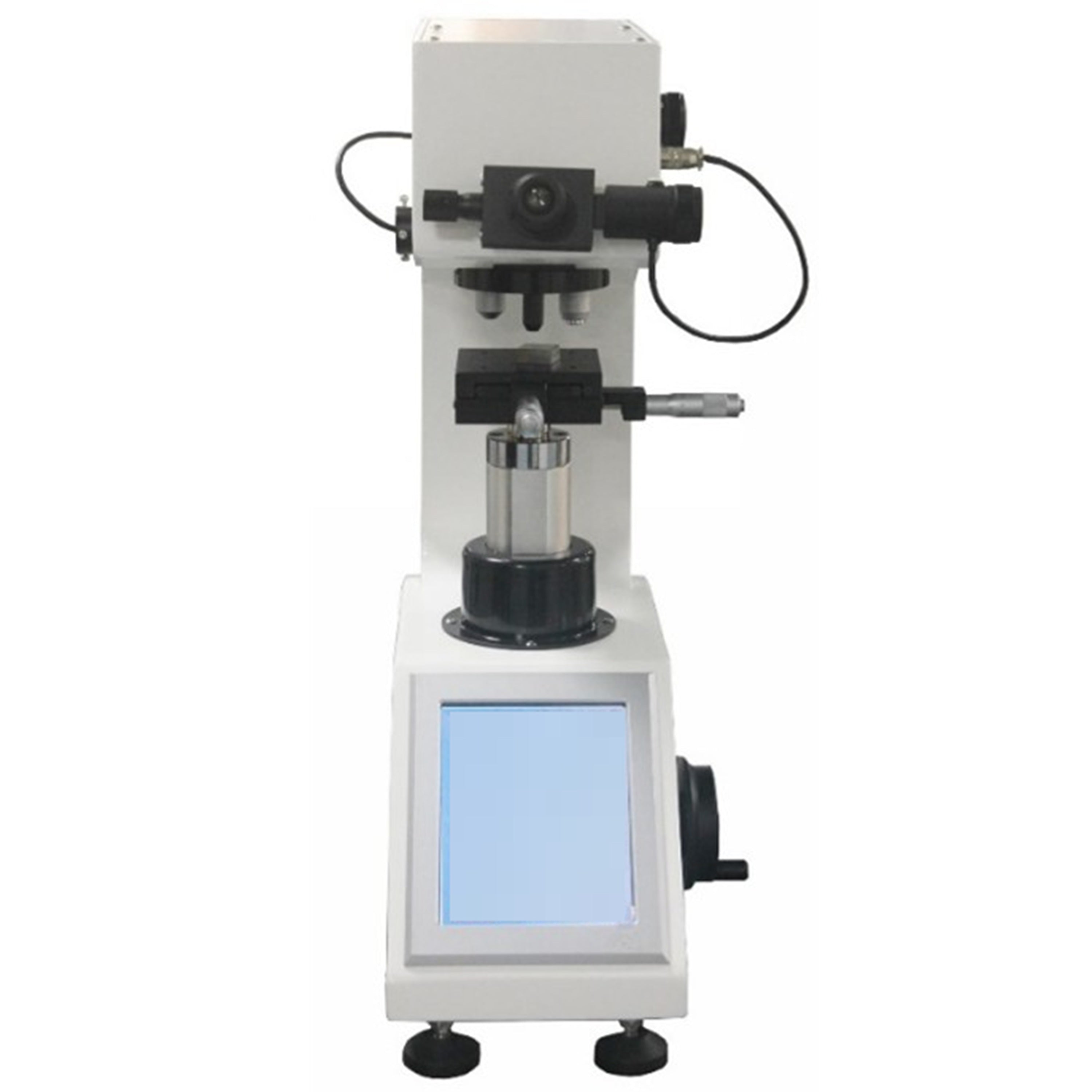

MSE PRO Touchscreen Digital Microhardness Tester with Manual Measurement
Introduction
The MSE PRO Touchscreen Digital Microhardness Tester with Manual Measurement is a precise and user-friendly system designed for microhardness testing of metals, coatings, and thin materials. Featuring an intuitive touchscreen interface and automatic load control, it enables accurate hardness measurement with efficient operation.
With high-resolution optical measurement, multiple hardness scale support, and built-in data processing capabilities, this tester is ideal for laboratories, quality control, and research applications requiring reliable microhardness evaluation.
Key Features
- Touchscreen Operation – 8-inch intuitive interface with menu-driven control for easy setup and testing
- High-Precision Measurement – Optical system with 0.01 µm resolution for accurate indentation analysis
- Wide Load Range – Supports multiple test forces from 10 gf to 1 kgf for versatile applications
- Automatic Test Cycle – Automated loading, dwell, and unloading for consistent and repeatable results
- Multi-Scale Conversion – Supports HV, HK, and conversion to Rockwell and Brinell scales
- Integrated Data Output – Built-in printer, data storage, and RS-232 interface for reporting and export
- Flexible Imaging Options – Optional built-in camera for clearer observation and measurement
Specifications
|
Parameter
|
Specification |
| Hardness Scales | HV, HK (convertible to Rockwell, Brinell) |
| Test Force Range | 10 gf – 1 kgf |
| Test Force Levels | 10, 25, 50, 100, 200, 300, 500 gf, 1 kgf |
| Standards Compliance | ASTM E92 |
| Measurement Resolution | 0.01 µm |
| Display | 8-inch touchscreen |
| Data Storage | Up to 20 test results |
| Output | Built-in printer, RS-232 interface |
| Test Method | Automatic loading, dwell, and unloading |
| Dwell Time | 1 – 99 s |
| Microscope Magnification | 100×, 400× |
| Hardness Range | 8 – 2900 HV |
| Maximum Sample Height | 100 mm |
| Throat Depth | 130 mm |
| Stage Size | 100 × 100 mm |
| Stage Travel | 25 mm × 25 mm |
| Dimensions | 540 × 260 × 650 mm |
| Weight | ~50 kg |
| Power Supply | 110V, 60Hz |
MSE supplies offers various metallographic equipment, please contact us for more information.
