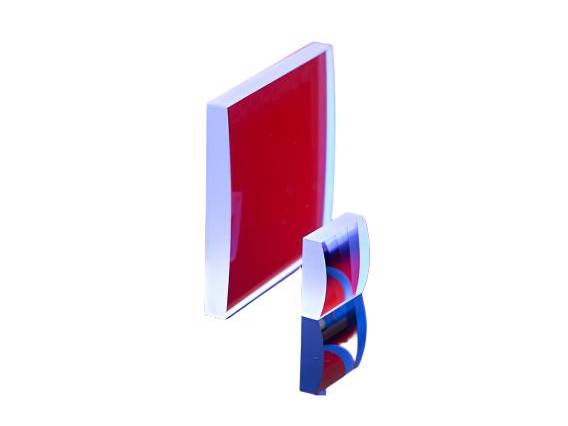

MSE PRO Rectangular BK7 Cylindrical Plano-Convex Lenses with 1/4 Wave MgF2 Coating@550nm
Regular price
$ 171.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ Rectangular BK7 Cylindrical Plano-Convex Lenses with 1/4 Wave MgF2 Coating@550nm
MSE supplies offers Rectangular BK7 Cylindrical Plano-Convex Lenses with 1/4 Wave MgF2 Coating@550nm. Similar to a Plano-Convex lens in profile, but only as a cylinder instead of a sphere. This cylindrical lens focuses light only in one dimension. It can also transform a point image into a line image or charging the height of an image without affecting its width.
MSE Supplies can offer a variety of optical elements, with different focal length and coating options. Please contact us for customization or bulk orders.
Technical Data:
| Material | BK7, fine annealed |
| Dimension Tolerance | +0.0/-0.2 |
| Center Thickness (Tc) | ±0.2 |
| Surface Quality | 60-40 scratch-dig |
| Clear Aperture | 90% surface area |
| Centration | 3' |
| Coatings | 1/4 wave MgF2 coating at 550nm for 0˚ angle of incidence |
