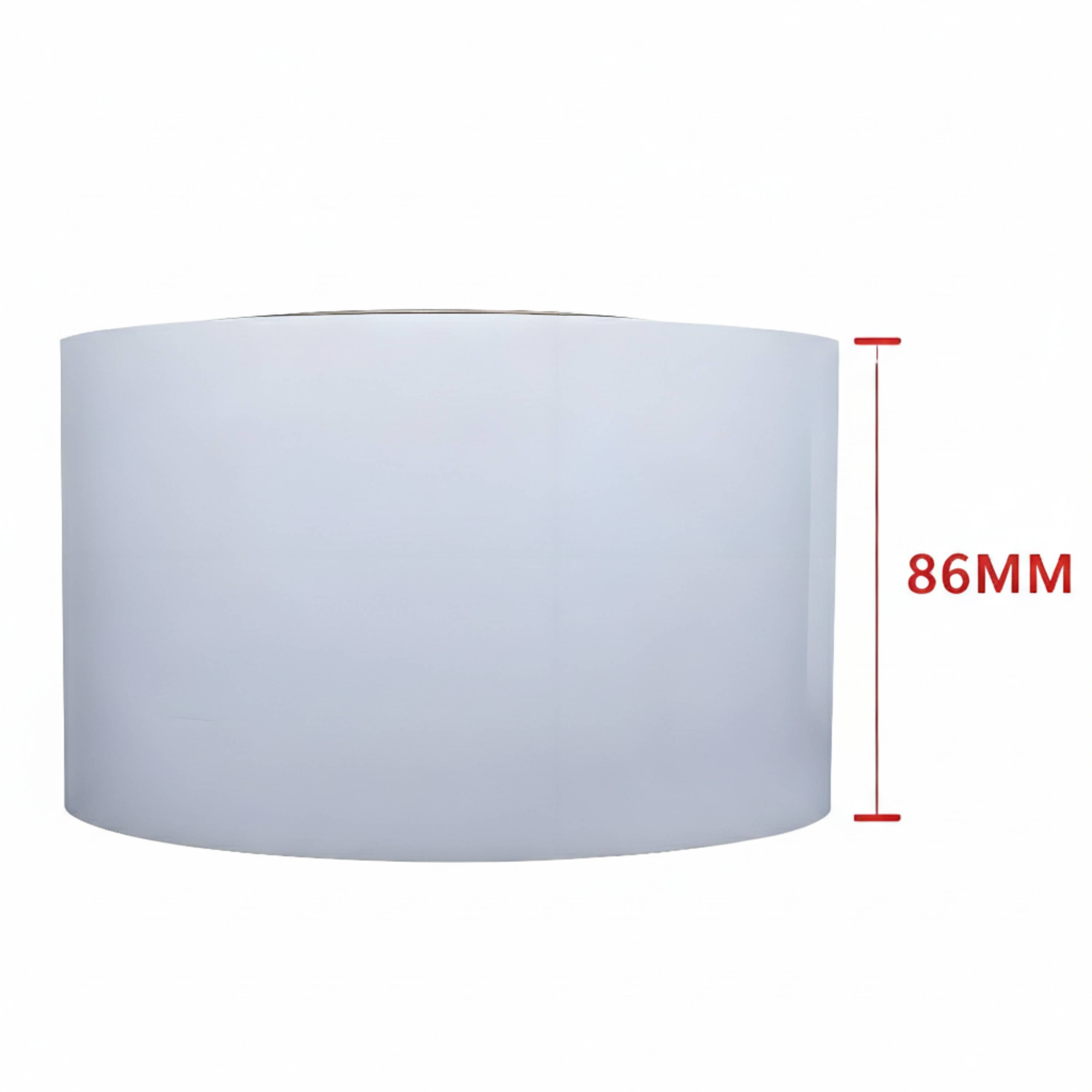

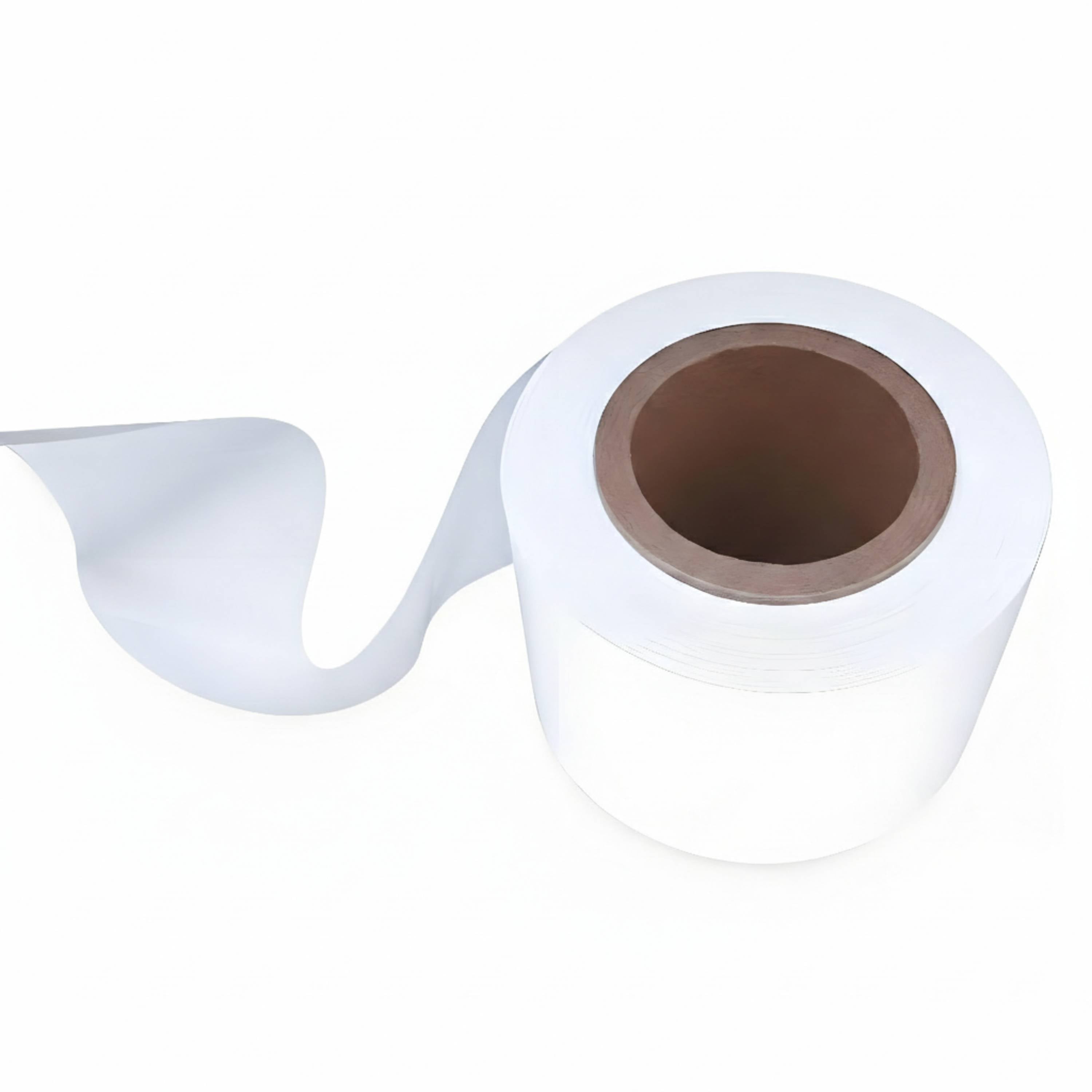

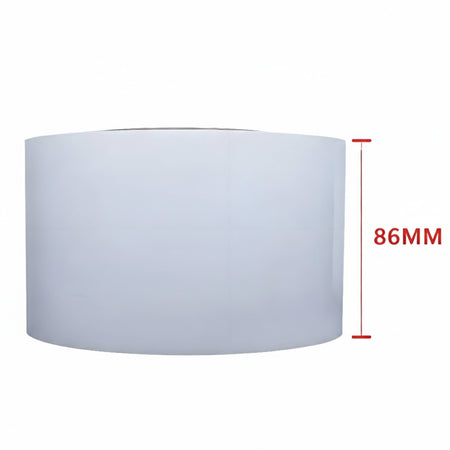

MSE PRO PE Separation Membrane (86mm*10m, 12um)
Introduction
The MSE PRO PE Separation Membrane is a high-quality microporous polyethylene separator designed for lithium-ion battery research and laboratory cell assembly. It functions as a critical safety barrier that prevents direct contact between electrodes while allowing efficient ion transport, helping ensure stable electrochemical performance, low internal resistance, and improved battery safety.
Manufactured from high-molecular-weight polyolefin materials, this separator provides excellent mechanical strength, uniform pore structure, chemical resistance, and dimensional stability. It is well suited for battery materials evaluation, prototype cell fabrication, and academic research applications
Applications
-
Lithium-ion battery research and development
-
Coin cell and pouch cell assembly
-
Battery materials testing and evaluation
-
Academic and industrial electrochemical laboratories
Specification
| Tensile strength MD (Kgf/cm2) | 1588 |
| Puncture strength (g) | 502 |
| Air permeability (Sec/100ml) | 152 |
| Product width (mm) | 86 |
| Elongation at break TD (%) | 0.2 |
| Porosity (%) | 41 |
| Product thickness (μm) | 12 |
| Tensile strength TD (Kgf/cm2) | 1329 |
| Elongation at break MD (%) | 0.8 |
| Area density (g/m2) | 6.7 |
