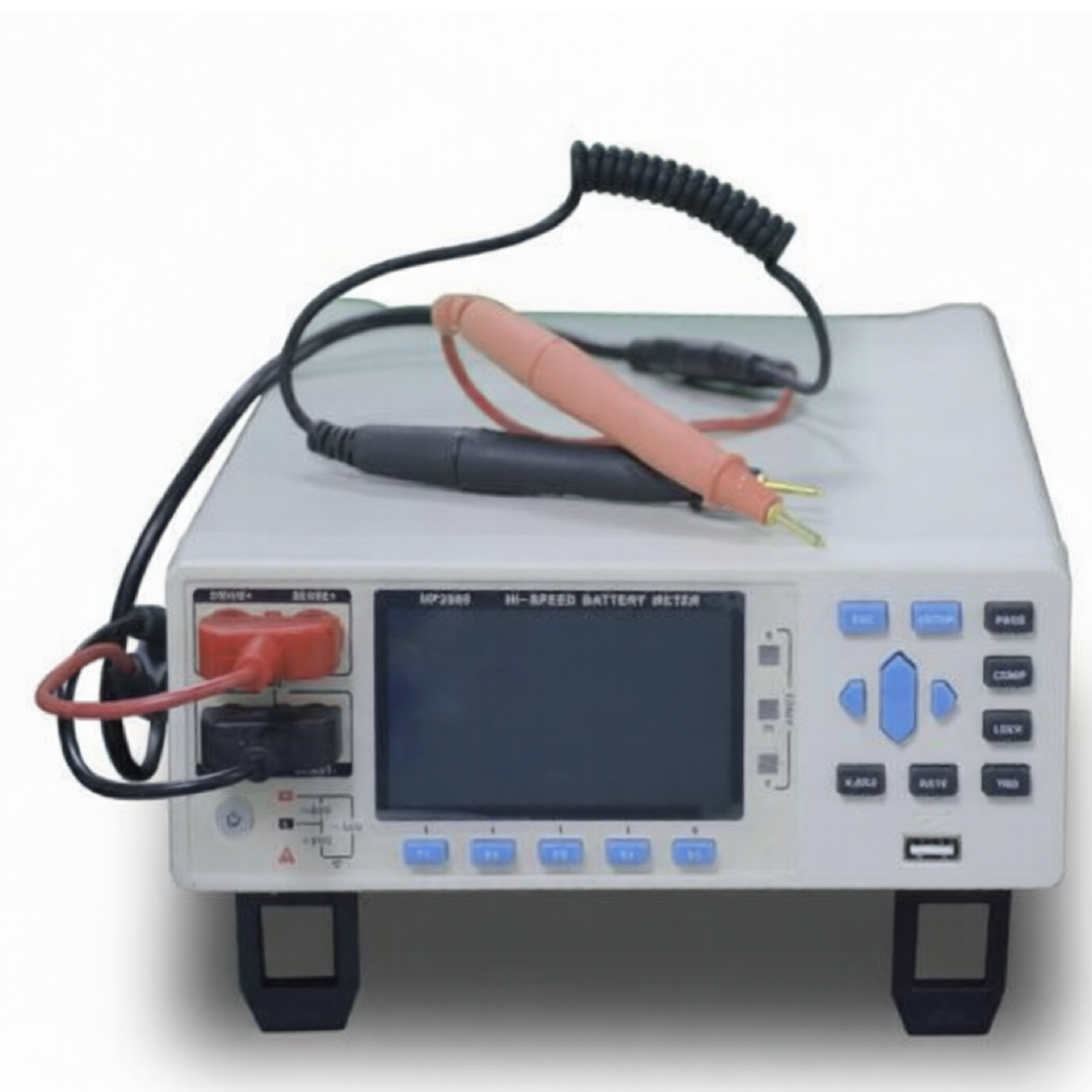

MSE PRO Lithium-Ion Battery Voltage and Internal Resistance Tester
Introduction
The MSE PRO Battery Voltage Internal Resistance Tester is a high-precision AC resistance testing instrument designed for accurate measurement of battery internal resistance and voltage. Suitable for cylindrical and pouch cells, it delivers stable and reliable results with strong anti-interference performance. Ideal for laboratory research, quality control, and automated production lines, it improves testing efficiency and enables seamless system integration.
Key Features
-
High-Precision Measurement
Accurate AC resistance (ESR) and DC voltage testing with excellent stability. -
Wide Application Range
Compatible with lithium-ion, LiFePO₄, NiMH, polymer, alkaline, and lead-acid batteries. -
Advanced Anti-Interference Design
Shielded test loop ensures stable and reliable measurement results. -
Fast Sampling Rates
Multiple speed modes up to 100 measurements per second for high-throughput testing. -
Programmable Comparator Function
Supports 30 sets of sorting parameters with multi-grade classification (Hi/IN/Lo, GD/NG). -
User-Friendly Display
3.5-inch TFT color LCD for clear and intuitive operation. -
Flexible Trigger Modes
Supports internal, manual, external, bus, and auto triggering. -
Data Management & Export
File management system with USB data export capability. -
Multiple Communication Interfaces
RS-232C, USB, LAN, and PLC interface for easy system integration. -
Compact & Energy-Efficient Design
Low power consumption and compact structure for convenient use.
Specification
| Display | 3.5-inch TFT color LCD |
| Signal Source | 1 kHz ±0.2, test current < 100 mA |
| Testing Parameters | AC resistance (ESR), DC voltage (DCV) |
| AC Resistance Range | 0.1 μΩ – 3 kΩ |
| AC Resistance Accuracy | 0.5%±10 dgt (3 mΩ range); 0.3%±5 dgt (other ranges) |
| Resistance Ranges | 2 mΩ / 30 mΩ / 300 mΩ / 3 Ω / 30 Ω / 300 Ω / 3 kΩ |
| Resolution | 0.1 μΩ to 0.1 Ω (depending on range) |
| Measuring Current | 100 mA to 10 μA (range dependent) |
| DC Voltage Range | 10 μV – 60 V |
| DC Voltage Accuracy | ±0.3% rdg ±5 dgt |
| Sampling Rate | Slow: 3/s; Medium: 20/s; Fast: 50/s; Extra Fast: 100/s |
| Comparator | 30 programmable records, 7-grade sorting |
| Trigger Modes | Internal / Manual / External / Bus / Auto |
| Interfaces | RS-232C / PLC / USB (host) / LAN |
| Data Functions | File management, USB export |
| Power Supply | 110V / 60 Hz |
| Power Consumption | 10 W |
| Dimensions (L×W×H) | 325 × 215 × 96 mm |
| Weight | 3 kg |
