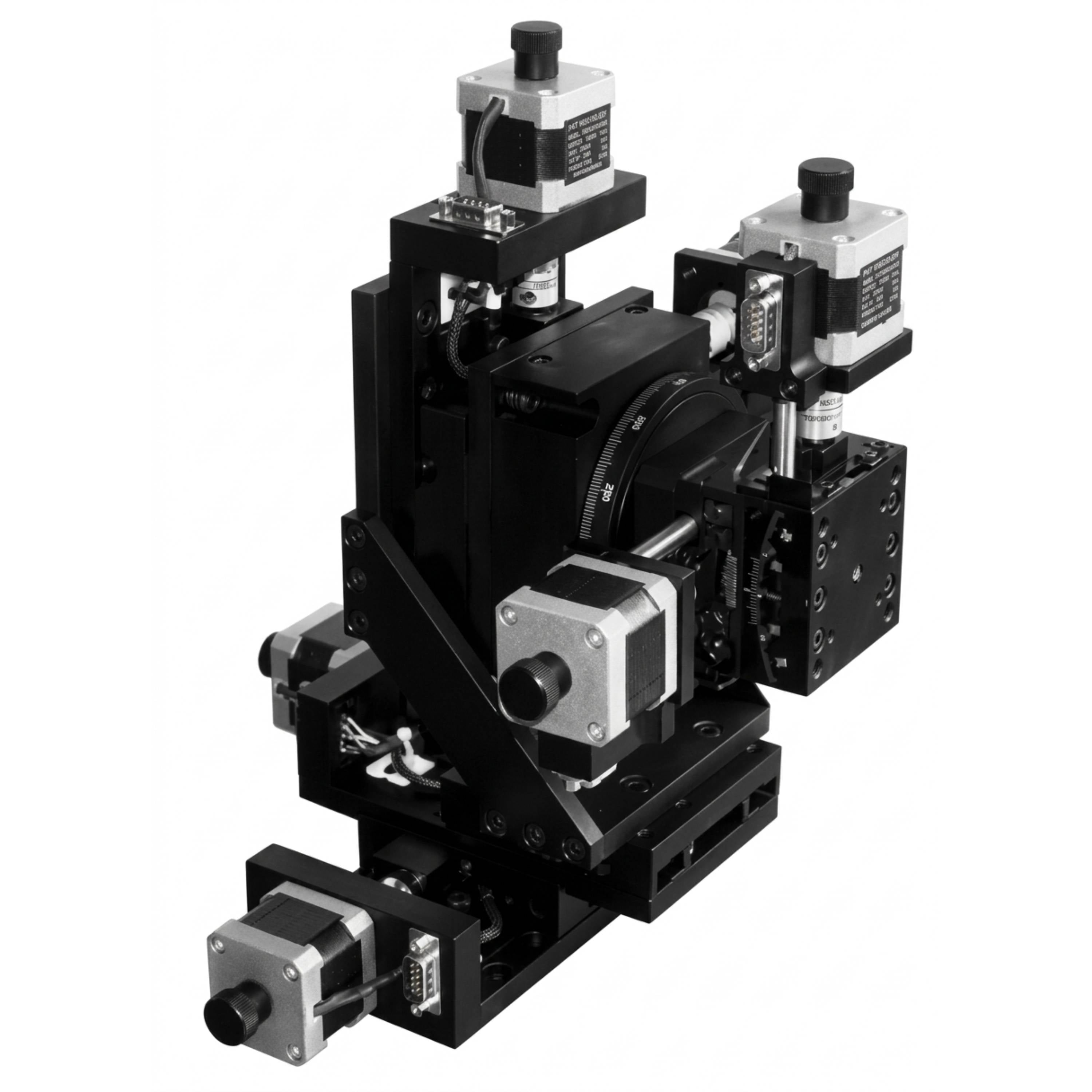

MSE PRO LDTDZ 6 Dimension Combination Stage
Regular price
$ 10,875.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDTDZ 6 Dimension Combination Stage
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070340 | |||
| Model | LDTDZ | |||
| Adjustment Direction | XYZ Translation | 8X | 8Y | 8Z |
| Travel Range | 30mm | ±90° | ±10° | ±15° |
| Table Size | 65*65mm | 65*65mm | 65*65mm | 65*65mm |
| Ratio | 1mm | / | / | / |
| Maximum Speed | 8mm/sec | 8°/sec | 8°/sec | 8°/sec |
| Motor | 42 Stepper Motor | 42 Stepper Motor | 42 Stepper Motor |
42 Stepper Motor
|
| End Load | <<3kg | <<3kg | <<3kg | <<3kg |
| Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Repeat Positioning Accuracy | 15μm | 0.05° | 0.05° | 0.05° |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
