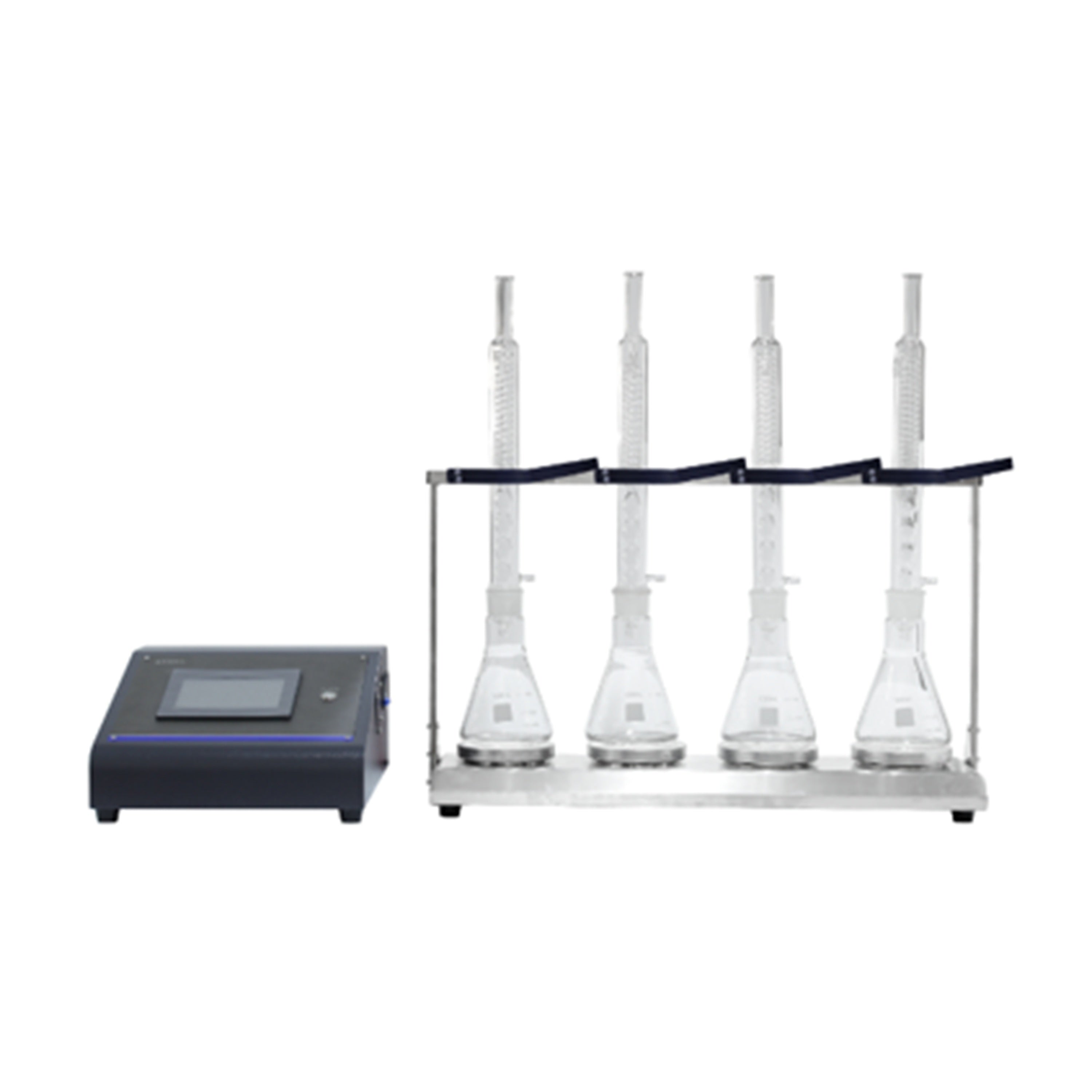

MSE PRO Intergranular Corrosion Testing System with Multi-Station Control (4 Stations)
Introduction
The MSE PRO Intergranular Corrosion Testing System is a specialized solution designed to evaluate the susceptibility of metallic materials to intergranular corrosion under controlled laboratory conditions. Commonly used for stainless steels, aluminum alloys, and nickel-based alloys, this system enables precise testing of material performance in accordance with international standards.
Featuring a multi-station design with independent heating control and automated reflux cooling, the system ensures stable and repeatable corrosion environments, making it ideal for research institutions, quality control laboratories, and industrial testing applications.
Key Features
- Multi-Station Configuration – Four independent testing stations for simultaneous sample evaluation
- Standards Compliance – Supports GB/T 4334-2020, ASTM A262, and ISO 3651 testing methods
- PLC & PID Temperature Control – Maintains stable and precise temperature conditions for long-duration testing
- Independent Heating Control – Each station operates independently with 500 W heating power
- Reflux Cooling System – Condensed vapor automatically returns to the solution, minimizing concentration changes
- Touchscreen Interface – User-friendly control panel for easy parameter setup and monitoring
- Wide Time Range – Programmable corrosion testing from seconds up to 999 hours
- Advanced Safety Protection – Includes over-temperature protection, water failure alarm, and automatic shutdown
- Automatic Fault Detection – Detects glass breakage and system faults with immediate response
- Power Failure Recovery – Automatically resumes testing after power interruption with time tracking
- Optional Remote Monitoring – Supports mobile SMS or WiFi monitoring and control (optional)
- Flexible Cooling Options – Compatible with tap water or optional recirculating cooling systems
Specification
| Parameter | Specification |
| Number of Stations | 4 |
| Applicable Standards | ASTM A262 (optional methods), ISO 3651 |
| Heating Power (per station) | 500 W |
| Total Power | 2200 W |
| Control System | PLC + PID |
| Display | Touchscreen interface |
| Corrosion Time Range | 1 s – 999 h 59 min 59 s |
| Cooling System | Tap water or optional recirculating system |
| Single Container Capacity | 1000 mL |
| Safety Features | Over-temperature, water shortage alarm, glass break detection, auto shutdown |
| Power Recovery | Automatic resume after power interruption |
| Controller Dimensions (W × D × H) | 410 × 500 × 220 mm |
| Corrosion Unit Dimensions (W × D × H) | 850 × 300 × 520 mm (base) / 850 × 300 × 840 mm (with condenser) |
| Power Supply | AC 110 V, 60 Hz |
| Weight | 25 kg |
MSE supplies offers various metallographic equipment, please contact us for more information.
