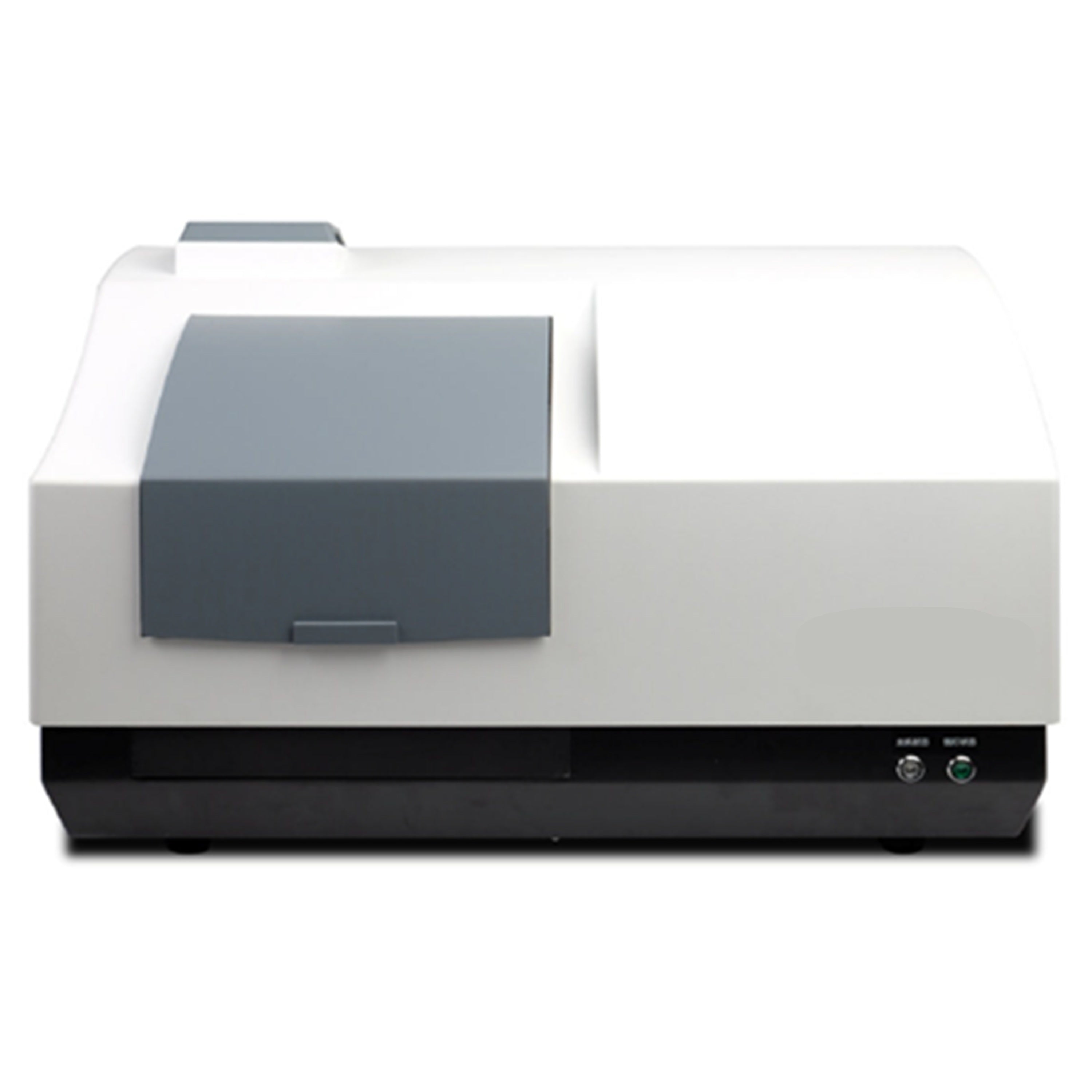

MSE PRO™ Fluorescence-Spectrophotometer
MSE PRO™ Fluorescence-Spectrophotometer (MA0066054) fluorescence spectrophotometer is a new generation of high-performance molecular luminescence analysis equipment. This product is designed for high performance, with high signal to noise ratio, ultra-high scanning speed, ultra-high resolution, ultra-high wavelength accuracy and a variety of accessories. This instrument easily meets the requirements in material research, drug analysis, biochemical and clinical testing, water quality control, food safety testing and other areas of qualitative and quantitative analysis and scientific research. Quantum yield accessory is available for F98 fluorescence spectrophotometer.
Features:
- Horizontal slit optical design, with excellent luminous detection efficiency and high signal to noise ratio. Water Raman peak SNR better than 350: 1 (P-P) or 1500: 1 (RMS). The minimum sample volume is 0.5mL when using a standard 10mm square sample cell.
- Wavelength scanning speed up to 60000 nm / min.
- Bandwidth 1/2/5/10/20nm adjustable.
- Fluorescence Quantum Yield accessory available.
- The software offers fluorescence 3D scanning, equal-wavelength difference synchronous scanning, equal wave number difference (constant energy difference) synchronous scanning functions, (synchronous scanning function require pro version software)
- Multi accessories available.
- Using Hamamatsu’s high quality Xenon light source and photoelectric multiplier tube detectors and instruments to provide sufficient light intensity signal and the detection sensitivity. Built-in frequency filter. Built-in optical gate, designed for unstable sample.
Specifications:
| Parameter | Value |
| Excitation Source | 150 W Xenon lamp (Hamamatsu) |
| Excitation Wavelength | 200 nm – 900 nm |
| Emission Wavelength | 200 nm – 900 nm |
| Excitation Slit | 1 / 2 / 5 / 10 / 20 nm |
| Emission Slit | 1 / 2 / 5 / 10 / 20 nm |
| Wavelength Accuracy | ±0.4 nm |
| Wavelength Repeatability | ≤0.2 nm |
| Signal-to-Noise Ratio (SNR) | ≥350 (P-P), ≥1500 (RMS), ≥15000 (RMS BG) |
| Detection Limit | ≤5 × 10⁻¹¹ g/mL (Quinine Sulfate Solution) |
| Linearity | ≥0.995 |
| Peak Repeatability | ≤1.5% |
| Wavelength Scan Speed | Multi-speed, max 60000 nm/min |
| Minimum Sample Size | 0.5 mL (using standard 10 mm square cell) |
| Filter | Built-in Octave filter |
| Photometric Quantity Range | -9999 ~ 9999 |
| Response Time | 0.02 / 0.1 / 0.5 / 1 / 2 / 4 / 8 s (auto adjust) |
| Data Transportation | USB 2.0 |
| Power Consumption | 200 W |
| Power Source | AC 220 V / 50 Hz; 110 V / 60 Hz |
| Instrument Dimensions | 610 × 460 × 365 mm |
| Weight | Net: 21 kg; Gross: 26 kg |
| Optional Accessories | Multi-function sample rack, membrane rack, sample cell jacket, 200 µL microcentrifuge tube accessory, upconversion fluorescent accessory, fluorescence quantum yield accessory |
MSE Supplies offers a wide range of laboratory spectrometers. Contact us for more information.
