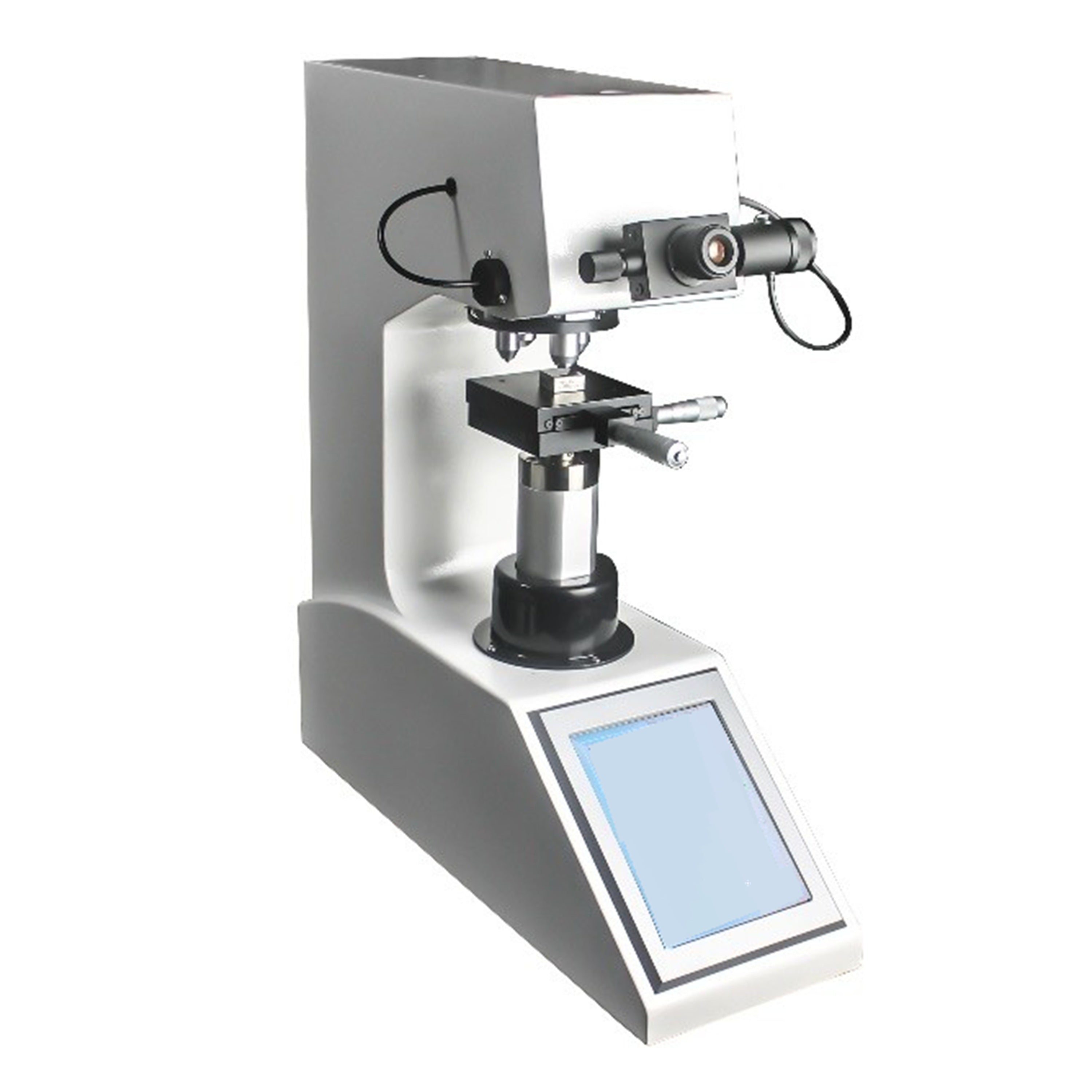

MSE PRO Dual-Indenter Automatic Turret Microhardness Tester with Dual Optics
Introduction
The MSE PRO Dual-Indenter Automatic Turret Microhardness Tester with Dual Optics is a high-performance system designed for advanced microhardness testing applications. Equipped with both Vickers and Knoop indenters and dual optical magnification, it enables flexible and efficient hardness evaluation across a wide range of materials.
With automatic turret switching, precision load control, and intelligent data processing, this system delivers accurate, repeatable results while significantly improving testing efficiency. It is ideal for research laboratories, advanced materials analysis, and high-throughput quality control environments.
Key Feature
- Dual Indenter System – Integrated Vickers and Knoop indenters for versatile hardness testing
- Automatic Turret Operation – Seamless switching between indenters and objectives with precise positioning
- Dual Optical Configuration – High- and low-magnification objectives (e.g., 10× and 40×) for flexible observation and measurement
- High-Precision Measurement – Optical system with 0.01 µm resolution for accurate indentation analysis
- Touchscreen Interface – 8-inch display with intuitive control and real-time data visualization
- Advanced Data Management – Data storage, statistical analysis, and export via RS-232 or optional USB (Excel format)
- Reliable Mechanical Design – Cross-guide lifting mechanism and stable force transmission for consistent results
Specification
| Parameter | Specification |
| Hardness Scales | HV, HK (convertible to Rockwell, Brinell) |
| Indenter Type | Vickers + Knoop (dual indenter) |
| Test Force Range | 10 gf – 1 kgf |
| Test Force Levels | 10, 25, 50, 100, 200, 300, 500 gf, 1 kgf |
| Standards Compliance | ASTM E92 |
| Measurement Resolution | 0.01 µm |
| Display | 8-inch touchscreen |
| Data Storage | Up to 20 test results |
| Output | Built-in printer, RS-232, optional USB (Excel export) |
| Test Method | Automatic loading, dwell, and unloading |
| Dwell Time | 1 – 99 s |
| Microscope Magnification | 100×, 400× |
| Hardness Range | 8 – 2900 HV / HK |
| Maximum Sample Height | 100 mm |
| Throat Depth | 130 mm |
| Stage Size | 100 × 100 mm |
| Stage Travel | 25 mm × 25 mm |
| Dimensions | 540 × 260 × 650 mm |
| Weight | ~50 kg |
| Power Supply | 110 V, 60 Hz |
| Turret System | Automatic turret with dual indenter & dual optics |
| Optional Features | USB data export, camera system, calibration tools |
