MSE PRO Compact Automated Nucleic Acid Extraction System

MSE PRO™ Compact Automated Nucleic Acid Extraction System

Description

MA0066614 is a small footprint and easy-to-operate nucleic acid extraction device for DNA, RNA extraction and purification by using magnetic separation technology, which can achieve rapid and efficient extraction of 1-16samples at one time. Using with corresponding magnetic beads extraction kits, it can extract and purify the nucleic acid sample from different samples, such as blood, swab, virus, cultured cells or bacteria, tissues, cell-free body fluids and plant samples. The high-quality DNA and RNA purification product is good for the downstream workflow of molecular biology tests.

Features

Working Procedure:

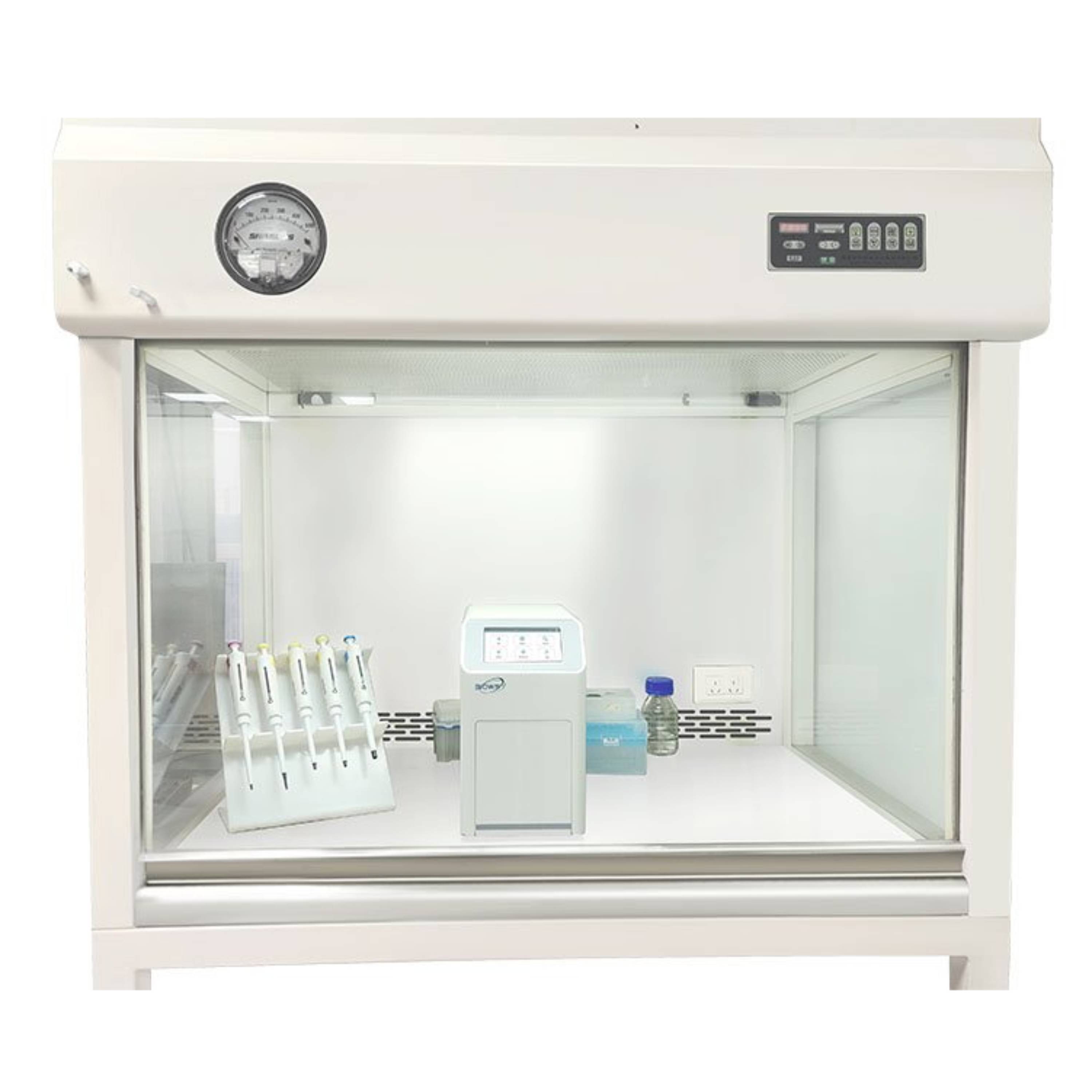

• Flexible: Compact design with small footprint, the device can be placed in a biological safety cabinet or a mobile laboratory for quickly extract 1-16 samples at one time.

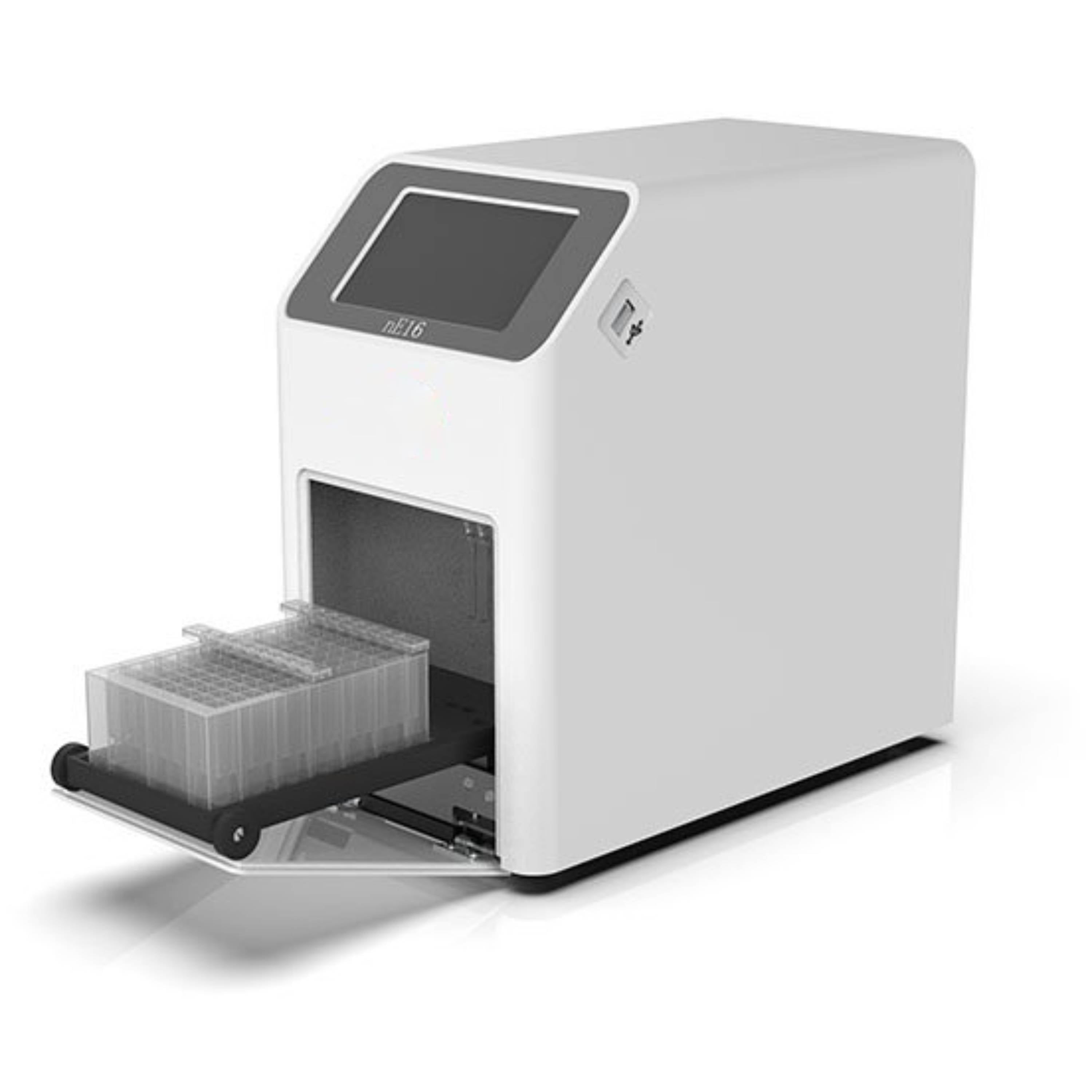

• Automation: Auto control of the plate carrier in and out action, which can guarantee an easy integration into robotic platforms

• Accurate: Fitted heating module to improve heating speed and temperature accuracy, the device can realize high extraction efficiency.
• Efficient: high-quality materials and processes are used, the recovery efficiency of magnetic beads is high

Fig1: Extract 16replicate samples by nE16 and RT-PCR on nQ16, CV of CT value=0.6%

 Fig2：Multiple samples with different concentration extracted on nE16, R²>0.999

• Innovative: Uniquely designed magnetic adsorption device, compatible with minimum 50ul eluent.
• Anti-contamination: Built-in HEPA filter and UV light to prevent pollution.

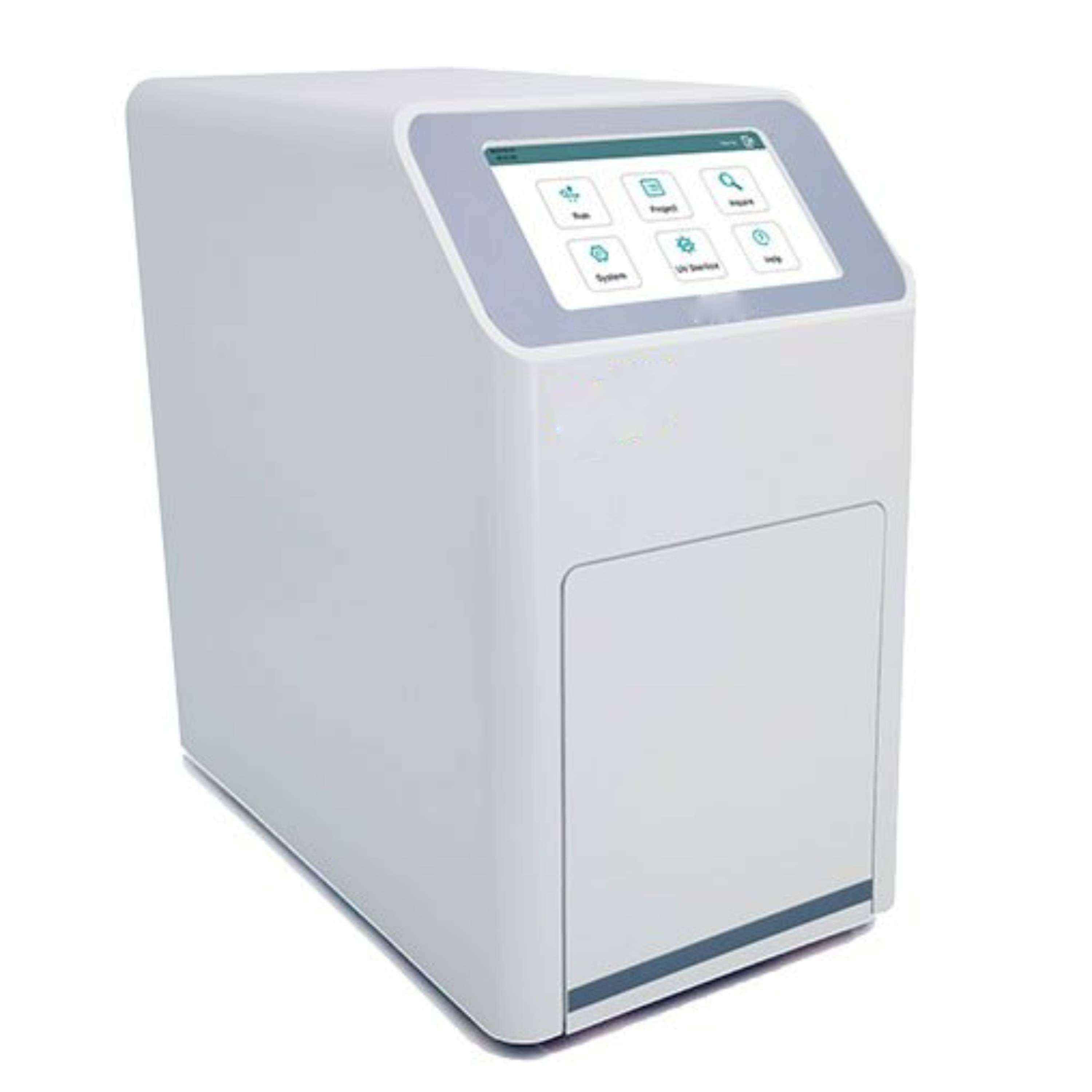

• User-friendly: Standalone operation with a 5inches touch screen, multi-machine joint operation can be carried out through the PC software.

Specification
