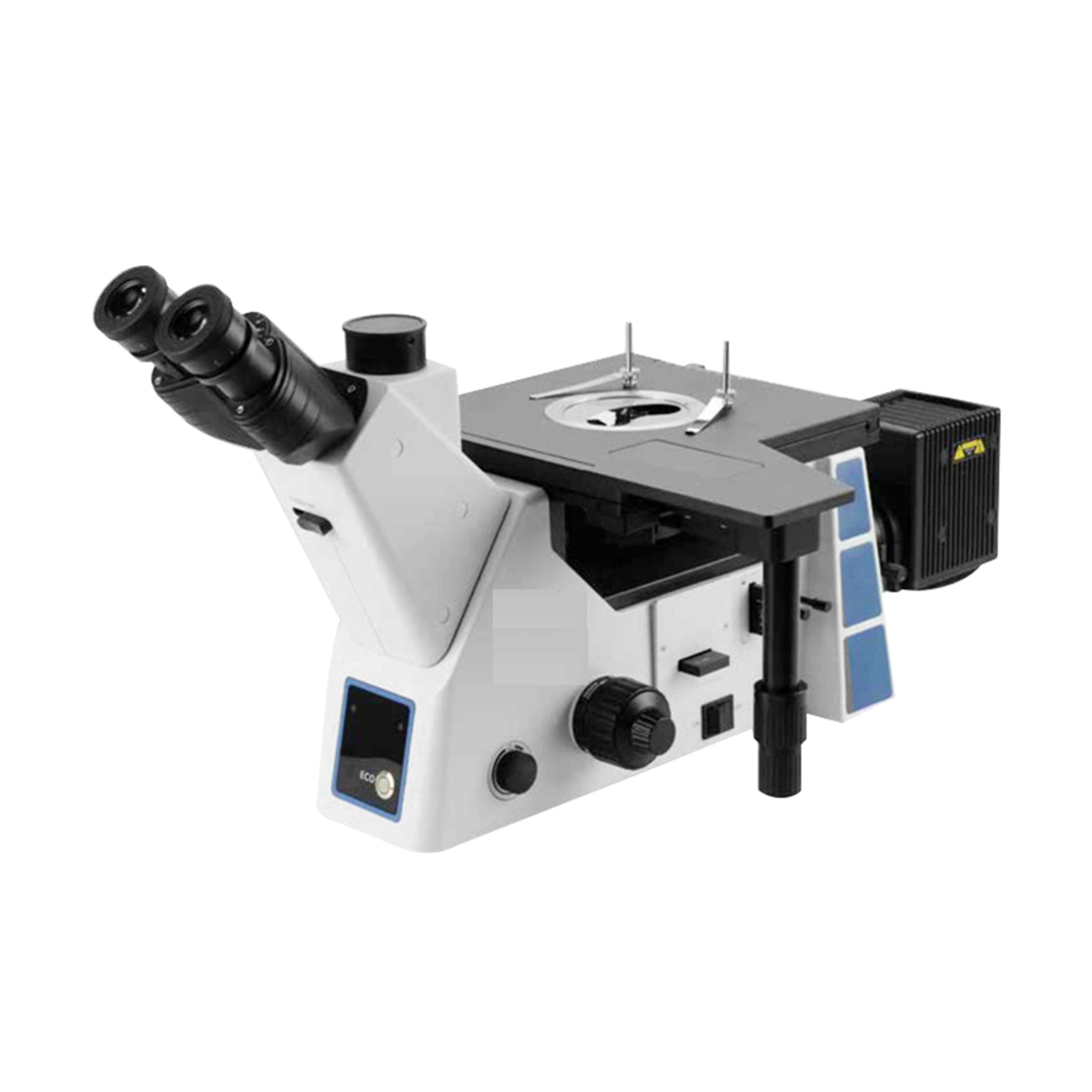

MSE PRO Advanced Inverted Brightfield/Darkfield Metallurgical Microscope
Introduction
The MSE PRO Advanced Inverted Brightfield/Darkfield Metallurgical Microscope is a versatile, high-performance imaging system designed for advanced materials analysis. With multiple observation modes including brightfield, darkfield, and polarized light, it enables detailed characterization of metal structures, coatings, and surface defects.
Built with an advanced infinity optical system and intelligent illumination control, this microscope delivers high-resolution imaging, excellent contrast, and enhanced operational efficiency, making it ideal for research laboratories, quality control, and industrial inspection applications.
Key Features
- Multi-Mode Observation – Supports brightfield, darkfield, polarization, and optional DIC for comprehensive material analysis
- Advanced Optical System – Infinity-corrected optics with long working distance objectives for sharp, high-contrast imaging
- Intelligent Illumination Control – Adjustable brightness with ECO infrared sensing for energy-saving operation
- Flexible Observation & Imaging – Trinocular head with camera integration for digital imaging and analysis
- Precision Mechanical Design – Stable large stage with smooth XY movement and high-accuracy focusing
- User-Friendly Ergonomics – 360° rotating observation head and low-position controls for comfortable long-term use
- Expandable Configuration – Supports advanced accessories such as DIC modules, filters, and high-resolution cameras
Specification
| Optical System | Infinity-corrected achromatic optical system |
| Observation Modes | Brightfield, Darkfield, Polarization (DIC optional) |
| Eyepieces | PL10×/22 mm wide field, adjustable diopter |
| Objectives | 5× / 10× / 20× / 50× (long working distance, brightfield/darkfield compatible) |
| Observation Head | Trinocular, 45° inclined, 360° rotatable |
| Interpupillary Distance | 50 – 75 mm |
| Light Split Ratio | 100:0 or 0:100 (binocular/trinocular switchable) |
| Nosepiece | 5-position brightfield/darkfield turret (with DIC slot) |
| Focusing System | Coaxial coarse & fine focus |
| Fine Focus Accuracy | 0.002 mm |
| Coarse Focus Travel | 9 mm |
| Stage Size | 240 × 250 mm |
| Stage Travel Range | 50 × 50 mm |
| Illumination System | Reflected illumination, adjustable brightness with indicator |
| Input Voltage | 110V / 60Hz |
| Light Source | 12 V external power supply |
| Condenser | Long working distance condenser (NA 0.3) |
| Camera Interface | 0.5× C-mount (adjustable focus) |
| Additional Features | ECO infrared sensor, polarization kit, filter set |
MSE supplies offers various metallographic equipment, please contact us for more information.
