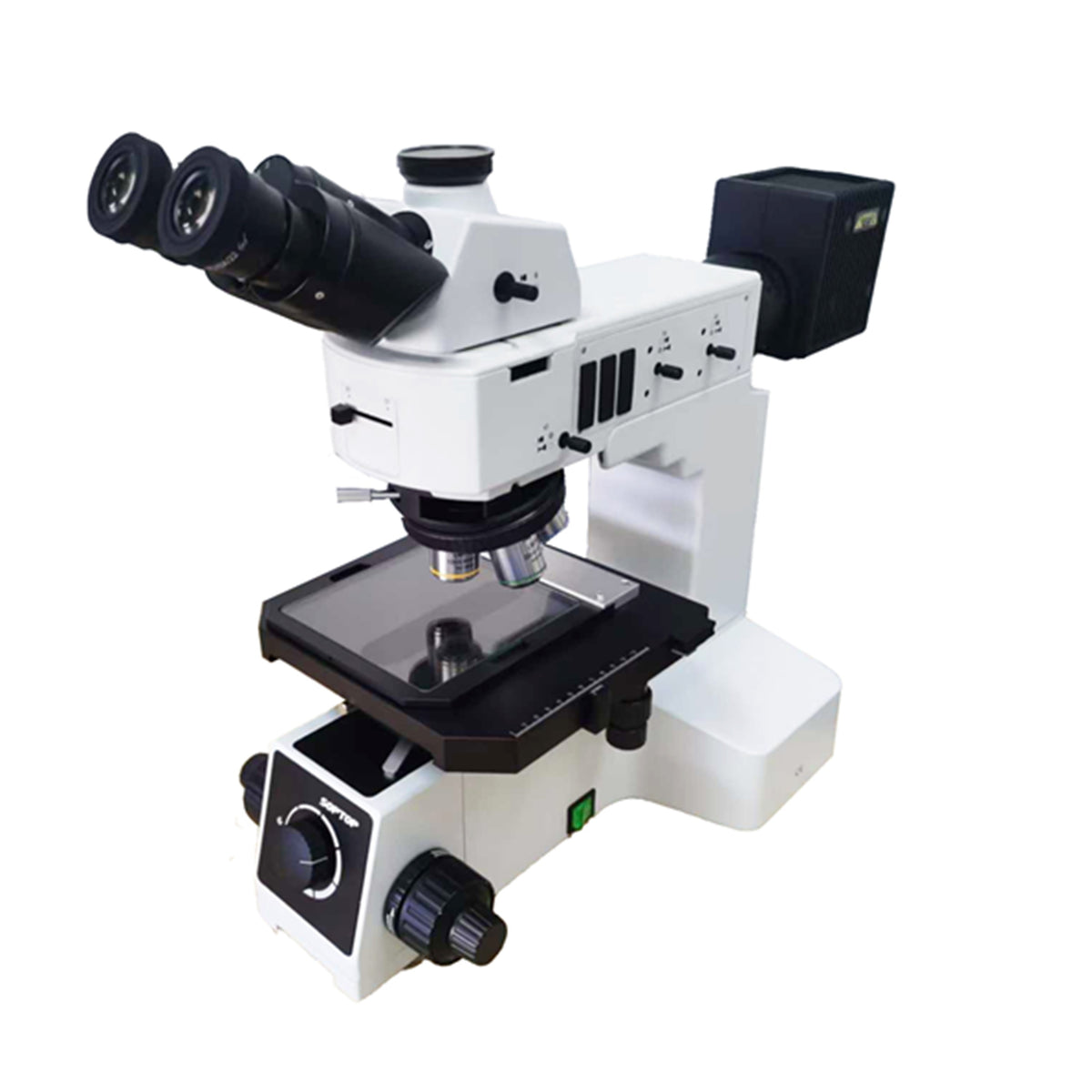

MSE PRO Advanced Brightfield/Darkfield Polarizing Upright Metallurgical Microscope
Introduction
The MSE PRO Advanced Brightfield/Darkfield Polarizing Upright Metallurgical Microscope is a premium imaging system designed for advanced metallographic analysis and industrial inspection. With multiple observation modes including brightfield, darkfield, polarization, and optional differential interference contrast (DIC), it enables comprehensive evaluation of material structures and surface features.
Built with an advanced infinity optical system, long working distance objectives, and a modular design, this microscope delivers high-resolution imaging, excellent contrast, and flexible configuration for demanding laboratory and industrial applications.
Key Features
- Multi-Mode Observation – Supports brightfield, darkfield, polarization, oblique illumination, and optional DIC for advanced analysis
- Advanced Optical Performance – Infinity-corrected system with semi-apochromatic objectives for sharp, high-contrast imaging
- Long Working Distance Objectives – Enhanced accessibility for metallurgical samples with improved clarity and depth
- Flexible Imaging Capability – Trinocular design with camera integration for digital imaging and analysis
- Precision Mechanical System – Stable structure with smooth stage movement and high-accuracy focusing (0.001 mm resolution)
- Independent Illumination Control – Adjustable reflected illumination with brightfield/darkfield switching and optimized contrast
- Ergonomic & Modular Design – User-friendly operation with configurable components for different applications
Specifications
| Optical System | Infinity-corrected optical system |
| Observation Modes | Brightfield, Darkfield, Polarization, Oblique illumination (DIC optional) |
| Magnification Range | 50× – 500× (expandable with optional objectives) |
| Eyepieces | PL10×/22 mm wide field |
| Objectives | 5× / 10× / 20× / 50× (long working distance, brightfield/darkfield compatible) |
| Observation Head | Trinocular, 30° inclined |
| Interpupillary Distance | 54 – 75 mm |
| Light Split Ratio | 100:0 or 0:100 |
| Nosepiece | 5-position brightfield/darkfield turret (with DIC slot) |
| Focusing System | Coaxial coarse & fine focus |
| Fine Focus Accuracy | 0.001 mm |
| Coarse Focus Travel | 33 mm |
| Stage Type | 3-layer mechanical stage |
| Illumination System | Reflected LED illumination with brightfield/darkfield switching |
| Light Source | 12 V / 10 W LED (reflected), 5 W LED (transmitted) |
| Input Voltage | 110V / 60 Hz |
| Polarization | Polarizer & analyzer (included) |
| Camera Interface | 0.5× C-mount |
| Optional Features | DIC module, 100× objective, imaging software |
