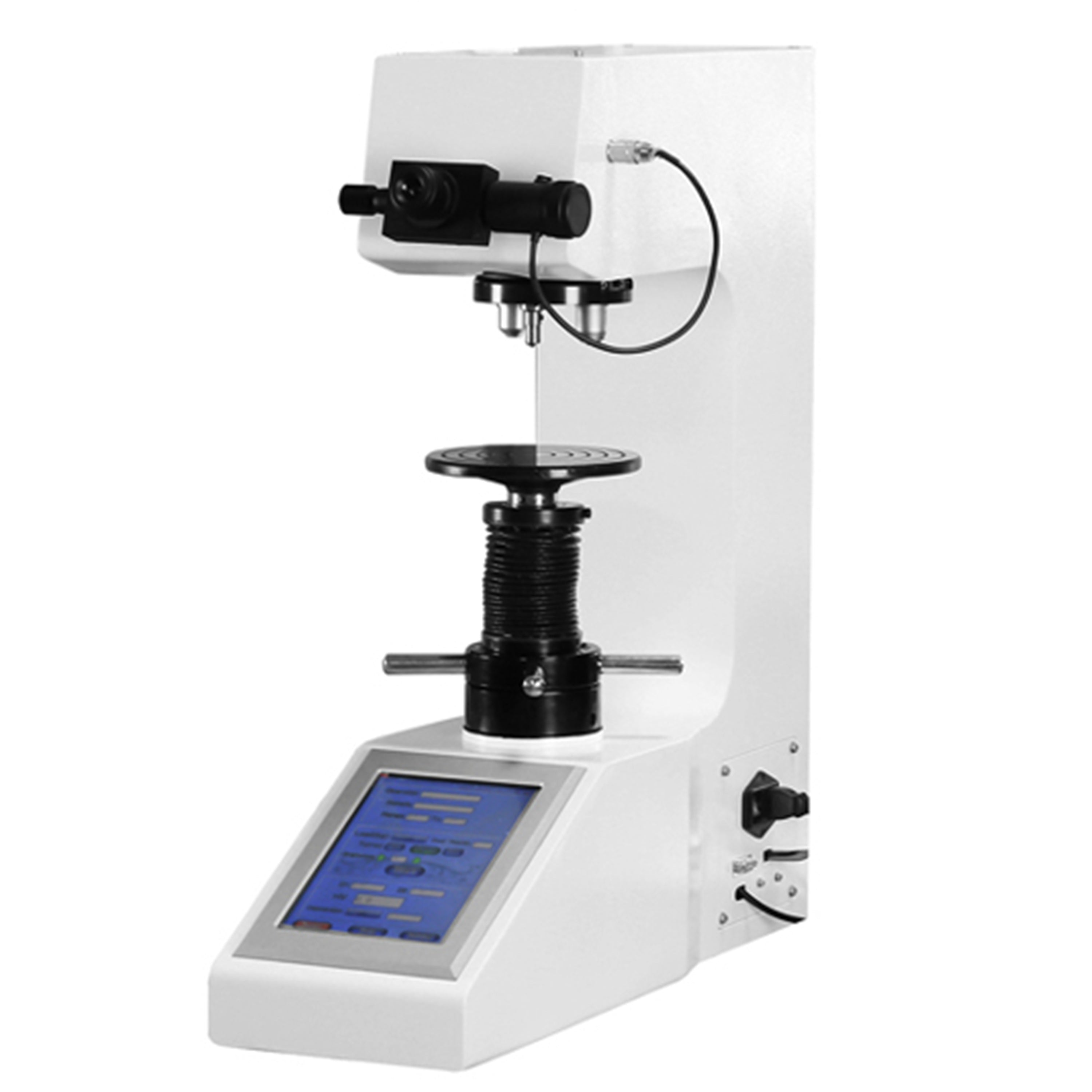

MSE PRO Advanced Automatic Turret Vickers Hardness Tester with Closed-Loop Control (30 kgf)
Introduction
The MSE PRO Advanced Automatic Turret Vickers Hardness Tester with Closed-Loop Control (30 kgf) is a high-capacity hardness testing system designed for precise evaluation of a wide range of materials, from microstructures to bulk metals. With an extended load range up to 30 kgf, it supports both micro and macro Vickers hardness testing in a single platform.
Featuring automatic turret operation, advanced closed-loop force control, and intelligent data management, this system delivers highly accurate, repeatable results while improving testing efficiency. It is ideal for metallurgical laboratories, heat treatment analysis, and industrial quality assurance applications.
Key Features
- Extended Load Range up to 30 kgf – Covers both micro and macro Vickers hardness testing applications
- Automatic Turret System – Seamless switching between indenter and objectives with high positioning accuracy (<1 µm)
- Closed-Loop Control System – Ensures precise and stable force application for improved repeatability
- Touchscreen Interface – 8-inch display with intuitive control and real-time data visualization
- High-Precision Measurement – Resolution down to 0.01 µm for accurate indentation analysis
- Comprehensive Data Management – Test results stored and exported in Excel format via USB for reporting
- Flexible Measurement Setup – Dual objectives (10×, 20×) with automatic calibration and multi-scale conversion
Specification
| Parameter | Specification |
| Hardness Scales | HV (convertible to Rockwell, Brinell, and others) |
| Test Force Range | 0.5 kgf – 30 kgf |
| Test Force Levels | 0.5, 1, 2, 2.5, 3, 5, 10, 15, 20, 30 kgf |
| Standards Compliance | ASTM E92, ISO 6507 |
| Measurement Resolution | 0.01 µm |
| Display | 8-inch touchscreen |
| Data Output | USB export (Excel format), LCD display |
| Test Method | Automatic loading, dwell, and unloading |
| Dwell Time | 1 – 99 s |
| Microscope Magnification | 100×, 200× |
| Objectives | 10×, 20× |
| Hardness Range | 8 – 2900 HV |
| Maximum Sample Height | 180 mm |
| Throat Depth | 160 mm |
| Turret System | Automatic turret (indenter/objective switching) |
| Positioning Accuracy | < 1 µm |
| Dimensions | 580 × 190 × 700 mm |
| Weight | ~55 kg |
| Power Supply | 110 V, 60 Hz |
| Optional Features | Built-in camera, multi-language interface |
MSE supplies offers various metallographic equipment, please contact us for more information.
