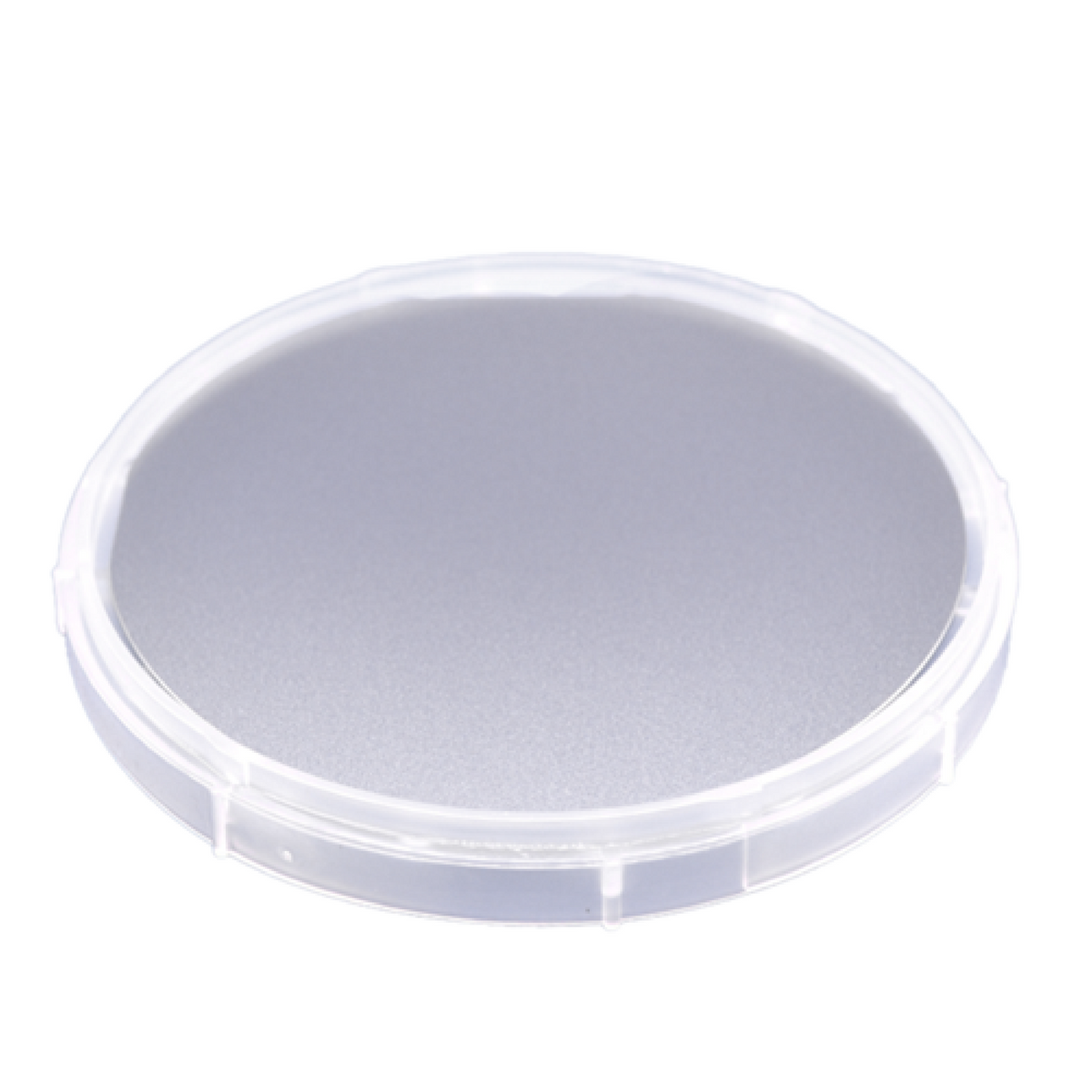

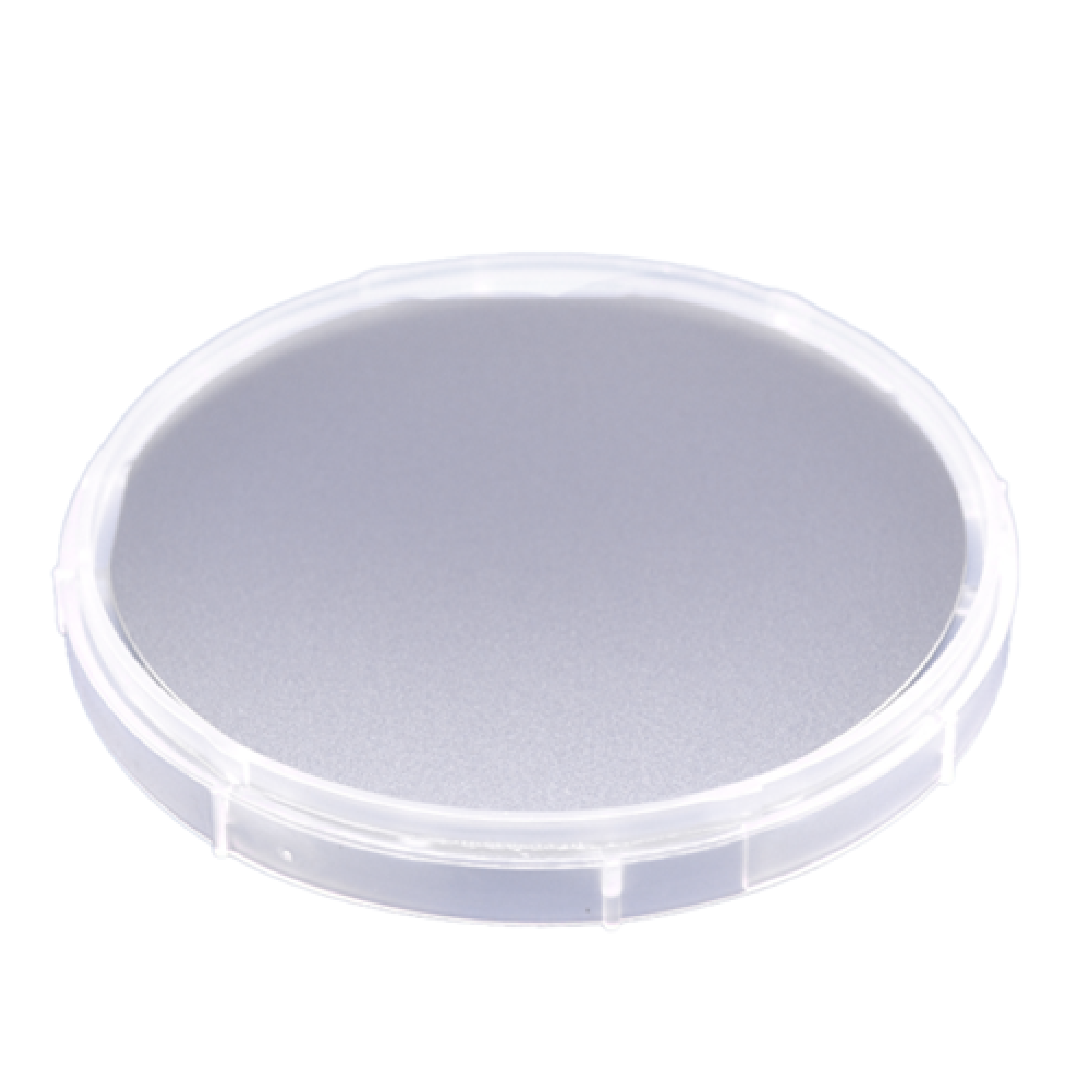

MSE PRO 4''N-type Ph-doped Silicon wafer <100>, 525 um thick, SSP, 0.001-0.005 ohm-cm

Order upon Request
SKU: WA0072402
$ 49.95

Still have questions? Ask our experts!

Email +1 (520) 789-6673

MSE PRO 4''N-type Ph-doped Silicon wafer <100>, 525 um thick, SSP, 0.001-0.005 ohm-cm

Product Specification

  • Material: Single Crystal Silicon Wafer
  • Growth Method: CZ
  • Orientation: <100> +/- 1 deg
  • Diameter: 100 mm +/- 0.5 mm
  • Thickness: 525 um +/- 25 um
  • Type/ Dopant: N/ Phosphorus
  • Electrical Resistivity: 0.001-0.005 ohm-cm
  • Surface Finish: Single Side Polished (SSP)
  • Grade: Prime Grade
  • Flatness: 1 SEMI
  • TTV: <10 um
  • BOW:<30 um
  • WARP: <30 um

MSE Supplies also offer 3'', 4'', 6'' 8" and 12" intrinsic and doped silicon wafers with high (>20000 ohm-cm) and low resistivity (0.001-0.005 ohm-cm).

Please  contact us if you need to place bulk orders or need customization.
