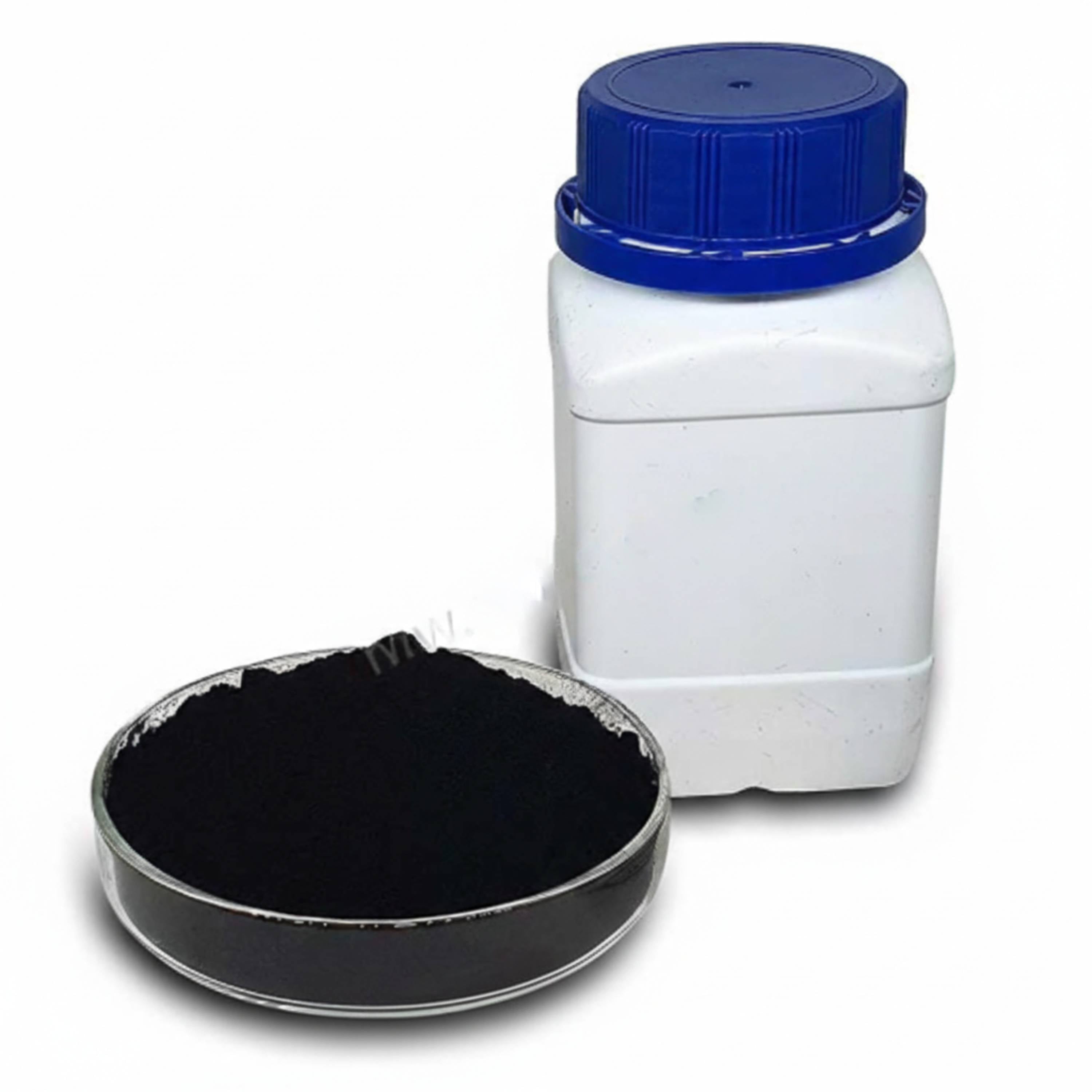

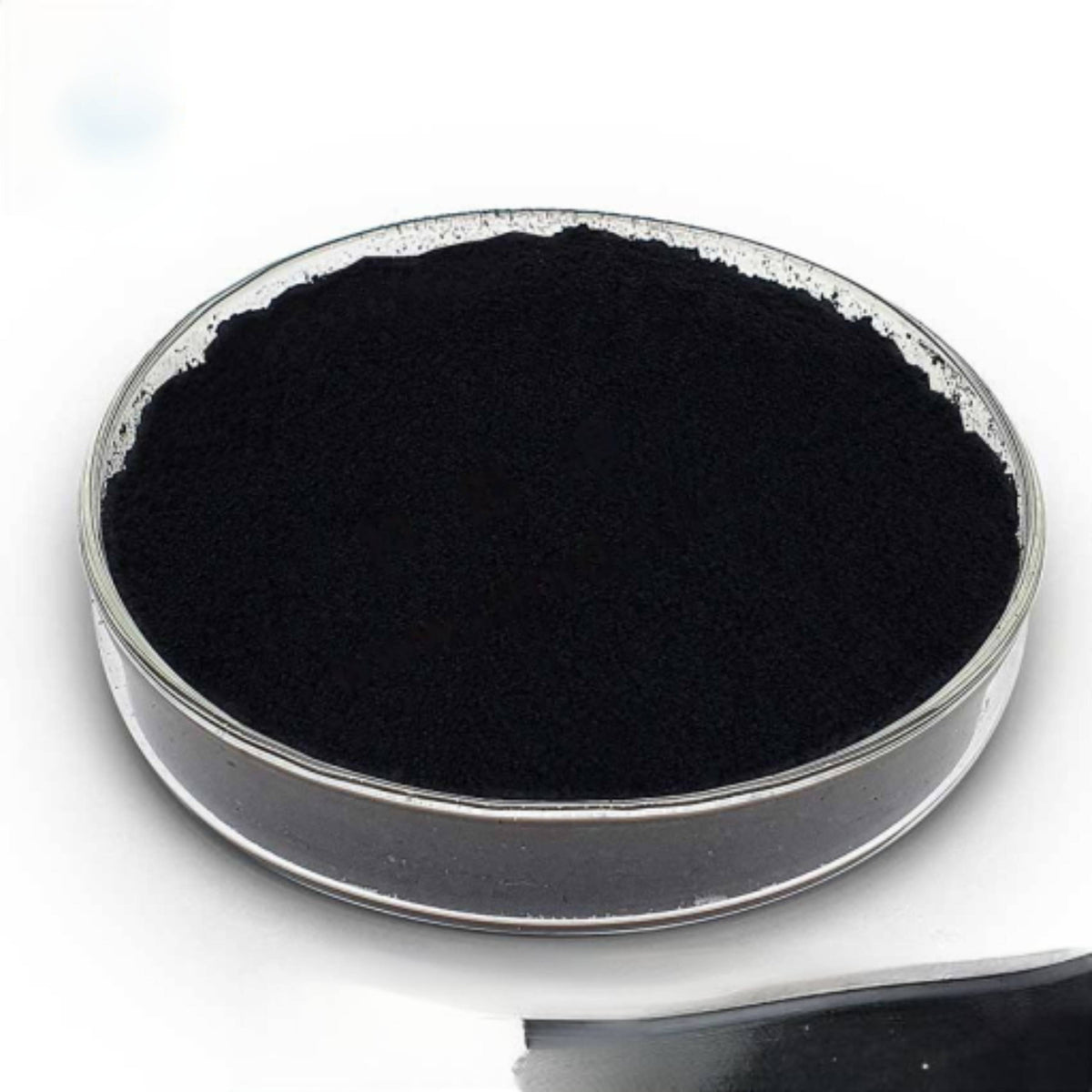

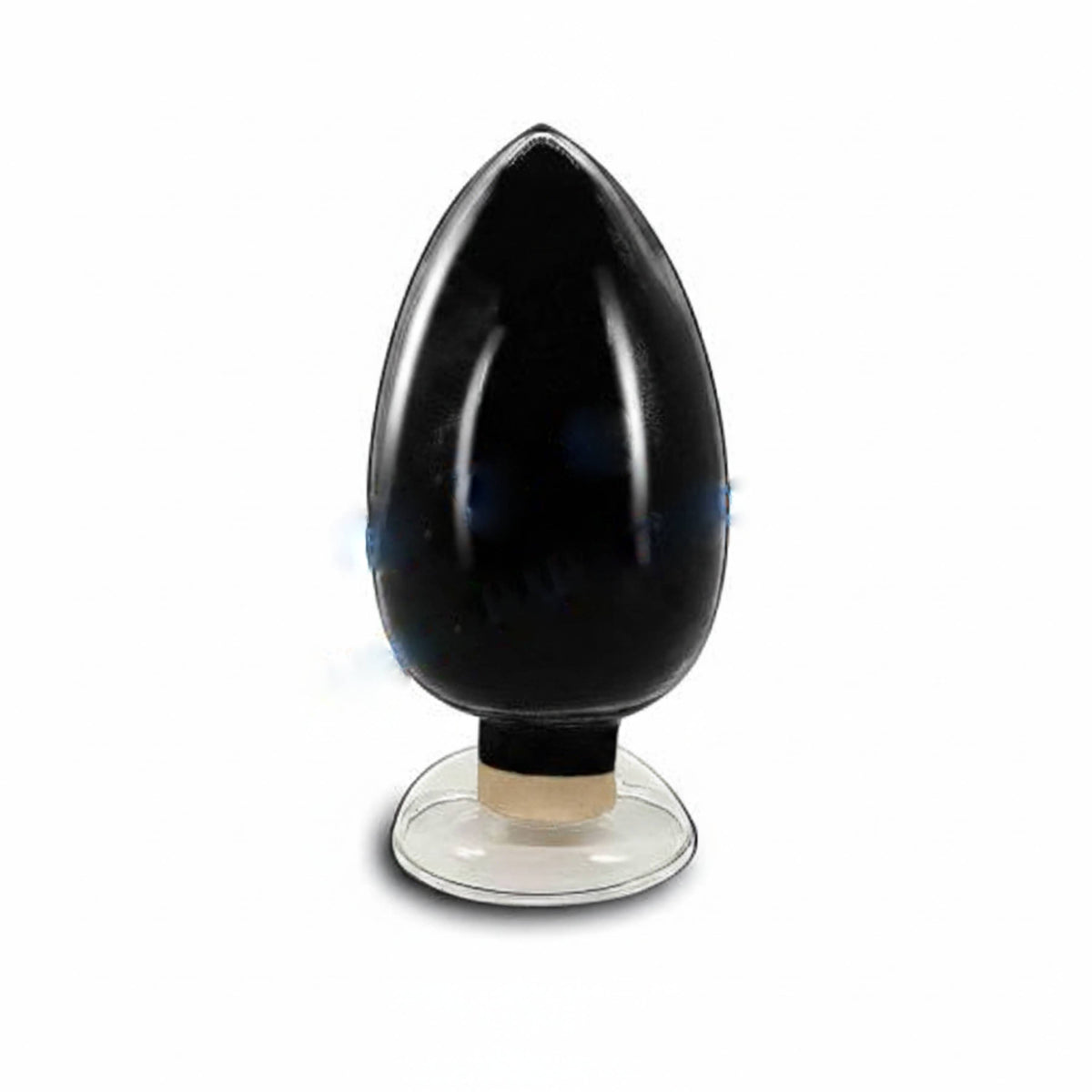

MSE PRO 100g Flake graphite (800 mesh) for Battery Research
Introduction
The MSE PRO Flake Graphite is a high-purity natural graphite material produced through purification of mined graphite ore. It features a layered crystalline structure, excellent electrical conductivity, and good chemical stability, making it an ideal precursor material for advanced carbon-based energy applications.
This material is widely used in battery research as a raw material for preparing graphite anodes, graphene, expanded graphite, and other carbon functional materials. Please note that it is intended for research and processing purposes and is not suitable for direct use as a lithium-ion battery anode material.
Specification
| Project | Symbols | Standard Values | |
| Chemical indicators | Fixed carbon % | C | ≥99.9 |
| Ash % | Ash | ≤0.10 | |
| Moisture % | Moistre | ≤0.20 | |
| Trace element ppm |
Iron | Fe | ≤40 |
| Calcium | Ca | ≤100 | |
| Aluminum | A1 | ≤50 | |
| Chromium | Cr | ≤8.0 | |
| Copper | Cu | ≤2.0 | |
| Molybdenum | Mo | ≤1.0 | |
| Nickel | Ni | ≤5.0 | |
| Cobalt | Co | ≤2.0 | |
| Lead | Pb | ≤5.0 | |
| Vanadium | V | ≤1.0 | |
| Silicon | Si | ≤200.0 | |
| Arsenic | As | ≤1.0 | |
| Stibium | Sb | ≤0.20 | |
| Germanium | Ge | ≤0.10 | |
| Mercury | Hg | ≤1.0 | |
| Manganese | Mn | ≤8.0 | |
| Cadmium | Cd | ≤1.0 | |
| Particle size Distribution D50 | μm | 10-13 | |
| Particle size Distribution D90 | μm | ≤30 | |
| Loose pack density | g/cc | 0.1±0.02 | |
| Specific surface area | m2/g | >5 | |
